Zebra WS501-R
The pictures shown are general images for product WS501-R and may not be applicable to all part numbers
WS501-R Mobile Computers
All-in-one UHF RFID and barcode capture in a compact wearable
The Zebra WS501-R adds integrated UHF RFID to the next-generation WS501 wearable platform, giving workers RFID reading, barcode scanning and mobile applications in one hands-free device.
Its configurable RFID performance supports close-range item identification and broader tag capture, while the integrated imager handles 1D and 2D barcodes when an RFID tag is unavailable.
Key Specifications

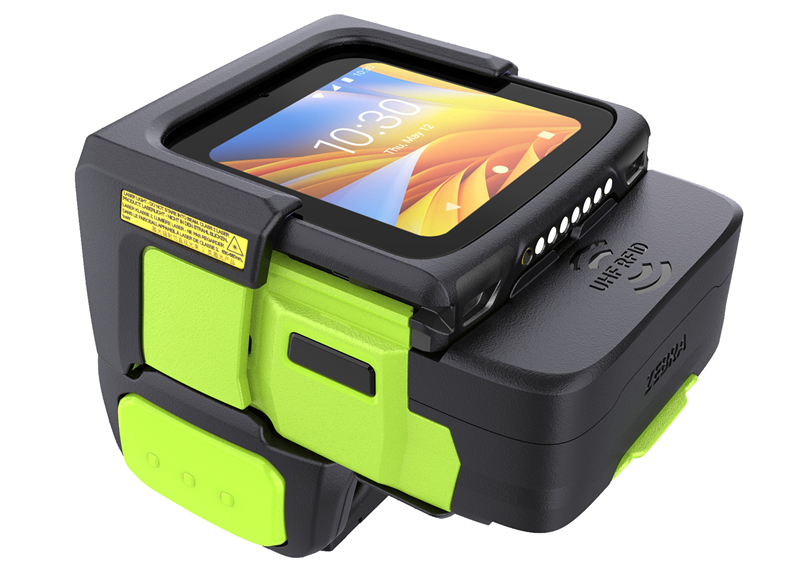

- 2-inch AMOLED 460 x 460 color touchscreen with Gorilla Glass
- Modern Qualcomm processor with 3 GB RAM / 32 GB Flash memory
- Android enterprise platform
- Wi-Fi 6 and Bluetooth 5.3 connectivity

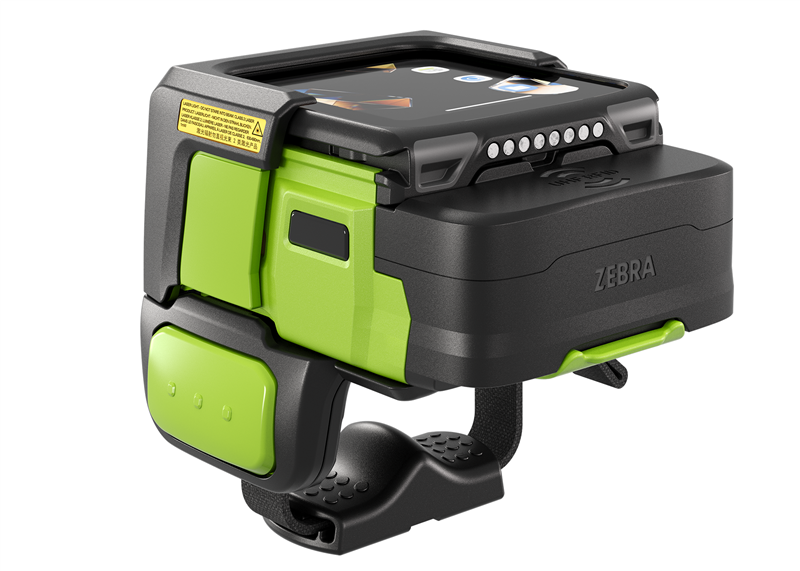

- Integrated upward-facing UHF RFID antenna
- Optional downward-facing antenna with configurable read range up to 5 ft.

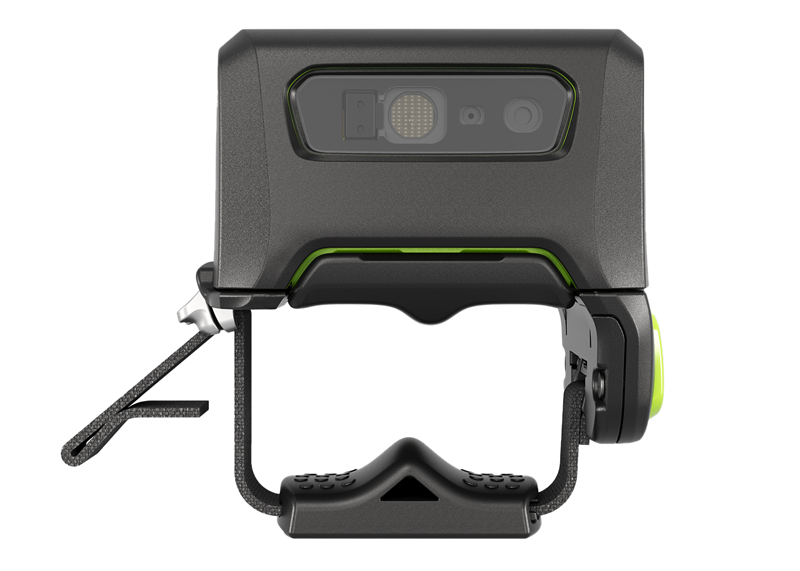

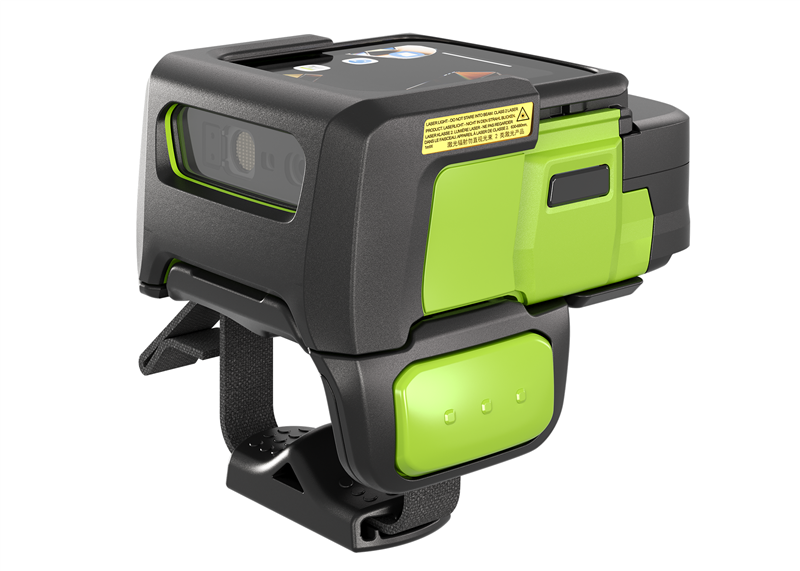

- Integrated SR560 enterprise 1D/2D barcode imager
- Hot-swappable battery and IP65-sealed rugged design
Enterprise UHF RFID
Capture the right tags for the workflow
The integrated antenna supports fast inventory and asset workflows, while an optional second antenna extends coverage and task flexibility.
Barcode Scanning Included
One wearable for RFID and 1D/2D codes
The SR560 imager complements RFID by capturing barcodes on items, boxes and labels without requiring workers to switch devices.
Next-Generation Performance
Run capture and workflow apps together
Expanded memory and modern wireless connectivity provide the resources needed for RFID applications, screen updates and ongoing EMM connections.
Designed for Hands-Free Work
Compact, rugged and shift-ready
Programmable buttons, a bright touchscreen, removable power and enterprise sealing support warehouse, manufacturing and loading-dock use.
| Product Specifications | |
|---|---|
| Dimensions | H x W x D: 3.18 x 2.4 x 1.49 inches (81 x 61 x 38 mm) |
| Weight | Finger mount: 6.9 oz. (196 g) |
| Display | 2 inch AMOLED 460 x 460 color display; optically bonded to touch panel |
| Imager Window | Corning™ Gorilla™ Glass |
| Touch Panel | Capacitive touch panel; fingertip and glove support; Corning™ Gorilla™ Glass |
| Power | 9.24 Watt Hours; 2400mAh PowerPrecision; Hot Swap (2 minutes, memory persistent) |
| Network Connections | USB 2.0 High Speed (host and client), WLAN and Bluetooth |
| Notifications | Audible tone; charge LED; OS notification LED; multi-color Application LEDs (2); haptic feedback |
| Voice and Audio | Speaker (90dBA); internal mic; PTT ready; Bluetooth headset support |
| Buttons | Trigger; 2 buttons (programmable) |
| Interfaces | Docking contacts; Via interface cables: USB 2.0 host/client and charging |
| CPU | Qualcomm® QCS2290, quad-core, 2.0 GHz |
| Operating System | Android; for supported Android versions, visit: www.zebra.com/android-versions |
| Memory | 3 GB RAM/32 GB Flash |
| Operating Temperature | 14.0°F to 122.0°F (-10.0°C to 50.0°C) |
| Storage Temperature | -40.0°F to 158.0°F (-40.0°C to 70.0°C) |
| Humidity | 5% to 95% non-condensing |
| Drop Specification | 5 ft. (1.5 m) drop to concrete per MIL-STD 810G across operating temperature |
| Tumble Specification | 2,000 tumbles @ 1.6 ft. (0.5 m) Meets and exceeds IEC tumble specifications |
| Sealing | IP65 |
| Vibration | 4 g’s PK Sine, 5hz to 2khz, 1 hour duration per axis; 0.04 g2/Hz Random (20 Hz to 2 kHz), 1 hour duration per axis |
| Electrostatic Discharge (ESD) | +/-15 kV air discharge, +/-8 kV direct/indirect discharge |
| Light Sensor | Automatically adjusts display backlight brightness |
| Motion Sensor | 6-axis accelerometer with MEMS Gyro |
| Scanning | SR560 1D/2D standard range omni-directional imager |
| NFC | Tap to Pair, ISO 14443 Type A and ISO 15693 cards, and Card Emulation via Host (HCE) support |
| Standards Supported | EPC Class 1 Gen 2; EPC Gen 2 V2 |
| RFID Engine | Zebra proprietary radio technology |
| Nominal Read Range | ~5 ft. (~1.5 m) |
| Frequency Range/RF System Output | US: 917-928 MHz; 0-24 dBm |
| Radio | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; Wi-Fi 6; 2x2 MU-MIMO; Wi-Fi™ certified; IPv4, IPv6 |
| Data Rates | 5GHz: 802.11a/n/ac/ax—20MHz, 40MHz, 80MHz - up to 1201 Mbps 2.4GHz: 802.11b/g/n/ax—20MHz up to 286.8 Mbps |
| Operating Channels | Channel 1-13 (2412-2472 MHz): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 Channel 36-165 (5180-5825 MHz): 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165 Channel Bandwidth: 20/40/80 MHz Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency. |
| Security and Encryption | WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES)—EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA3 Enterprise 192-bit mode (GCMP256) - EAP-TLS; Enhanced Open (OWE) |
| Certifications | Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6; Wi-Fi Enhanced Open; WPA2-Personal; WPA2-Enterprise; WPA3-Personal; WPA3-Enterprise (includes 192-bit mode); Protected Management Frames; Wi-Fi Agile Multiband; WMM; WMM-Power Save; WMM-Admission Control; Voice-Enterprise; Wi-Fi Direct; Wi-Fi QoS Management |
| Fast Roam | PMKID caching; Cisco CCKM; 802.11r (Over-The-Air); OKC |
| Bluetooth | Bluetooth 5.3; Classic Bluetooth Basic Rate (BR)/Enhanced Data Rate (EDR) and Bluetooth Low Energy (BLE) support; Class 1 |
