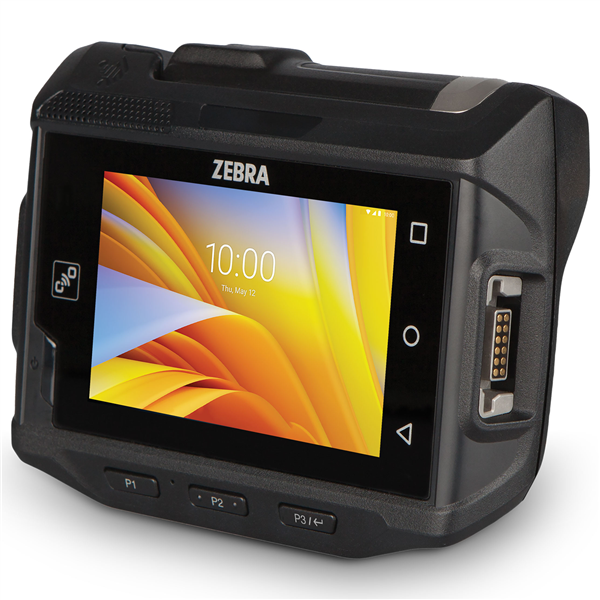

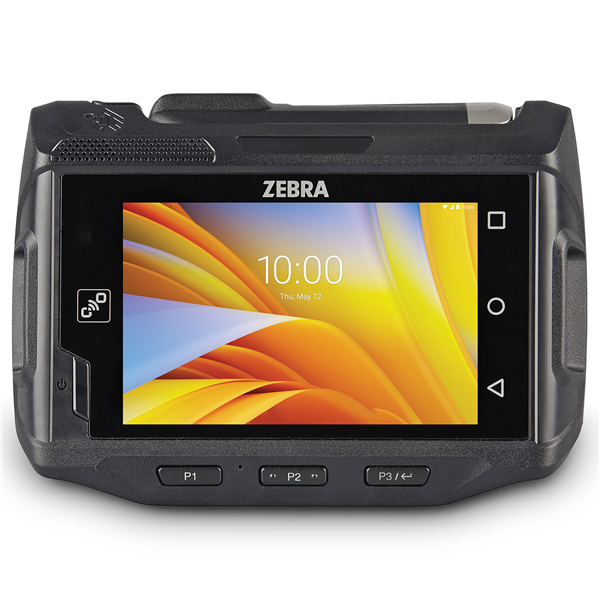

Zebra WT6300

The pictures shown are general images for product WT6300 and may not be applicable to all part numbers

WT6300 Mobile Computers


This product replaces the older Motorola WT4000.

The WT6300 is a dedicated wearable device built for all-day comfort. One of the lightest devices in its class, this unit the unit was built with alow center of gravity, minimizing muscle effort and worker fatigue — unlike a handheld mobile computer placed into a wrist mount. And the best-in-class mounting system delivers unmatched comfort and eliminates pressure points. Pair with a Zebra RS6000 or similar wearable scanner for a truly hands-free solution.

The unit's advanced Qualcomm Snapdragon 2.2ghz processor delivers desktop-like performance on even the most demanding applications, all with less power for longer battery cycle times. The hot-swappable batteries can be changed on the fly — no need to power down or close applications. . It is dustproof and water-resistant, with a Gorilla Glass scratch-and-shatter resistant display. The WT6300 is rated for the freezer, with a freezer rated battery and drop tests performed across the entire operating temperature range to ensure that the plastics won’t become brittle and break when dropped in the freezer. The display automatically detects if workers are wearing gloves and adjusts touch sensitivity as needed — and works even when wet.

Future-proof your devices with Android 10 and a pathway to future Android versions. In addition, the WT6300 has a 10-year lifecycle, available for sale for five years and serviceable for an additional five years — so the device you buy today is available to support your growing workforce. And with a Zebra LifeGuard support package, you'll get the OS and security patch updates you need to keep your devices and data secure throughout these 10 years.

Migrating from Windows CE?
If you’re migrating from Windows CE or legacy wearable mobile devices, the WT6300 makes it easy and cost-effective. The optional keypad makes it easy to migrate to Android — there’s no need to change the look and feel of your apps or change user workflows. Users can continue to use the familiar key-based interface, virtually eliminating training. Since there’s no need to use any of the screen real-estate for a soft keyboard, you can create more information-rich application screens. And your WT6000 accessories work with your WT6300, preserving your existing accessory investment.

Product Specifications
Dimensions (L x W x D) 4.7 in. L X 3.5 in. W X .7 in. D and 1.3 in. (D)
Weight (Pounds) 9 oz./256 g (standard battery) 11 oz./312 g (extended battery)
Display .2 in. WVGA (800x480); LED backlight; color display; optically bonded to touch panel
Battery Standard battery — 3350 mAh Extended battery — 5000 mAh/freezer rated PowerPrecision+ battery; hot swap
Processor Qualcomm SnapdragonTM 660 octa-core, 2.2 GHz
Operating System Android 11; upgradeable to Android 14
Memory (RAM) 3 GB RAM/32 GB Flash
Operating Temperature -22° F to 122° F/-30° C to +50° C
ESD Protection (Air Discharge) +/-15 kV air discharge, +/-8 kV direct/indirect discharge
Environmental seal IP65 per applicable IEC sealing specifications
Tumble Specification 1,000 tumbles @ 1.6 ft./0.5 m; meets and exceeds IEC tumble specifications
Bluetooth Bluetooth 5.0; Bluetooth Low Energy (BLE) support; Class 1
Warranty 1 Year
Network Connections WLAN, WPAN (Bluetooth), USB 2.0 (high speed client and host)

Zebra WT6300 Reviews

POSGuys Rating: Not Rated

Customer Reviews

Downloads
WT6300 Spec Sheet

Recommended Models

WT6300, Touch Display, Keypad, Standard Battery (3350mAh), 3GB RAM/32GB Flash, Android 10 GMS,
$3020.54 Add to Cart
WT6300, Touch Display, Keypad, Extended Battery (5000mAh), 3GB RAM/32GB Flash, Android 10 GMS,
$3056.87 Add to Cart

Additional Models

WT6300, Touch Display, No Keypad Included, Standard Battery (3350mAh), 3GB RAM/32GB Flash, Android 10 GMS,
$2720.75 Add to Cart
WT6300, Touch Display, No Keypad Included, Extended Battery (5000mAh), 3GB RAM/32GB Flash, Android 10 GMS
$2761.63 Add to Cart

Accessories

7.5ft. AC Line Cord, For Use with PWRS-14000-148R and PWR-BGA12V50W0WW
Power Supply (Formerly Motorola), Requires DC Line Cord CBL-DC-388A1-01 & AC Line Cord 23844-00-00R, Replaces PWRS-14000-148R (Presentation Cradle)
7.5ft. DC Cable For Use with Power Supply Brick PWR-BGA12V50W0WW
WT60, RS60, PowerPrecision+ Lithium Ion Battery, 3350mAh, FedEx Ground Only (Batteries must be shipped via ground shipping)
WT6000 5Slot Charge Only Sharecradle W/Spare Battery Charger, Allows To Charge 5 Wearable Terminals And 5 Spare Batteries. Requires PWR-BGA12V108W0WW, DC Line Cord CBL-DC-382A1-01 And Grounded Country Specific Ac Line Cord.
$1310.42 Add to Cart
WT6x/RS6000 Two Slot Cradle. Charges 1 Wearable Terminal And 1 Ring Scanner. Requires PWR-BGA12V50W0WW, DC cable CBL-DC-388A1-01 and 3-wire grounded country specific AC line cord.
WT6000/WT6300 Single slot USB Cradle, w/spare battery charging, charges one wearable terminal and one spare battery. Requires PWR-BGA12V50W0WW, DC cable CBL-DC-388A1-01 and AC line cord.
WT60, RS60, Extended Lithium Ion Battery, 5000mAh, (Batteries must be shipped via ground shipping)
WT6000 Physical Keypad Assembly, Alphanumeric and Function, Includes Mounting Cleat
WT6000 Wrist Mount, Includes carrier, comfort pad and small/medium strap.
WT6000, Wrist Mount With Extra Large Strap. Allows Use of the Wearable Terminal on the Wrist While Wearing a Jacket.
WT6000 Wrist Mount, Includes carrier, comfort pad and medium/large strap
