Datamax-O'Neil Apex 3

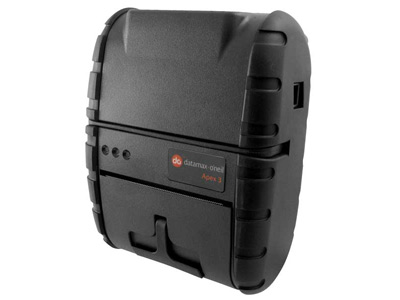

Apex 3 Product Image

The pictures shown are general images for product Apex 3 and may not be applicable to all part numbers

Apex 3 Mobile Printers

This product replaces the older Datamax-O'Neil Apex 2.

The Datamax-O'Neil Apex 3 mobile printer offers affordable portability for line busting and mobile POS applications. Available with RS-232 Serial standard, the Apex 3 also offers Bluetooth or 802.11b/g radios, giving you a variety of communications options. 3" wide receipts are printed quickly and easily, and the battery is strong enough to last long, busy shifts.

The rugged design of the Apex 3 holds up to temperatures as low as 14° F, ideal for outdoor concessions. An overmold body with rubber bumpers provides protection from drops, and for added protection, Datamax O'Neil offers an environmental case to keep dirt & water from harming the printer. All units come with battery, roll of media, AC adapter, and belt strap.

• Optional built-in MSR
• 3" print width
• Environmental Case available for added protection
• 2" per second print speed
• Prints approx. 1,580 6" long receipts per battery charge

Charging Note: The Apex 3 ships with charging equipment. See Accessories for any optional charging and communication supplies.
Product Specifications
Dimensions 6.1" H x 5.0" W x 2.3" D (156 x 127 x 58 mm)
Weight 18.5 oz (0.524 kg)
Color Options Black
Battery Rechargeable Lithium-Ion
Print Method Direct Thermal
Resolution 203 dpi
Print Speed 2 inches per second (51 mm per second)
Print Width 2.83 inches (72 mm)
Interfaces Available Standard - Serial, Bluetooth
Optional - 802.11
Barcodes Supported Linear: Codes 39, Code128 A/B/C, UCC/ EAN-128, Interleaved2 of 5, UPC/EAN/JAN and Codabar
2D Symbologies: PDF417
Character Set Standard - ASCII, International, PC Line draw – 12CPI, 16CPI, 19CPI, 21CPI, 24CPI, 13CPI rotated
Optional - Simplified & Traditional Chinese, Hebrew, Arabic, Polish, Greek, Cyrillic
Data / Logo Storage 4 MB Flash / 1 MB RAM
Graphics Printing Supports 8-bit graphic printing, custom font, logo downloading
Auto Cutter No
Barcode Scanner No
Magnetic Card Reader Optional
Media Type Direct thermal receipt paper: Standard, premium, heavy duty, long-life, image protect, hi-temp, all weather
Paper Dimensions 3.14 in (80 mm) width
Roll Diameter: 3.14 in (80 mm) maximum
Paper Thickness 0.002 to 0.004 in (0.05 to 0.10 mm)
Peeler / Presenter No
Drop Specification 4 ft. (1.2 m)
Operating Temperature 14°F to 122°F (-10°C to 50°C)
Recharge Temperature 41°F - 104°F (5°C - 40°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Operating Time Prints approx. 1580 - 6 inch long receipts
Accessories Cigarette Lighter Adapter, RJ11 Serial Cable, USB Cable, Cleaning Cards
Warranty 1 Year
