Home » Mobile Printers » Datamax-O'Neil Apex 2

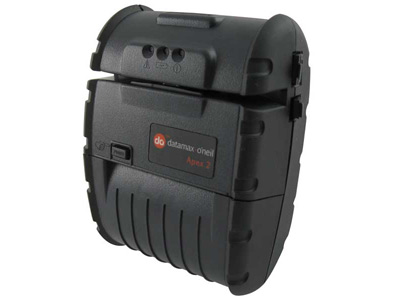

Datamax-O'Neil Apex 2

Apex 2 Mobile Printers

The Datamax-O'Neil Apex 2 mobile printer is a lightweight and economical tool for any mobile retail or line busting operations. All models come with RS-232 serial interface and your choice of Bluetooth or 802.11b/g wireless radios, giving you both corded and cordless printing options. A 2" print width keeps the Apex 2 slim, fitting easily on a belt.

The overmold design of the Apex 2 protetcts it from drops and allows it to operate in temperatures as low as 14° F. For added protection, an optional environment case offers an IP54 seal, keeping out dust & water. With a battery that lasts over a full shift and a build quality to hold up to harsh, abusive environments, the Datamax-O'Neil Apex 2 is the smart choice for any mobile priting operation.

• Models with built-in MSR available
• 2" print width
• 2" per second print speed
• 2,640 6" long receipt battery life
Product Specifications
Dimensions 5.4H x 4.1W x 2.4D " (135 x 103 x 60 mm)
Weight 14.7 oz (0.417 kg)
Color Options Black
Interfaces Available Standard - Serial, Bluetooth
Optional - 802.11
Battery Rechargeable Lithium-Ion
Print Method Direct Thermal
Resolution 203 dpi
Print Speed 2 inches per second (51 mm per second)
Print Width 1.89 in (48 mm)
Barcodes Supported Linear: Codes 39, Code128 A/B/C, UCC/ EAN-128, Interleaved2 of 5, UPC/EAN/JAN and Codabar
Character Set Standard - ASCII, International, PC Line draw – 12CPI, 16CPI, 19CPI, 21CPI, 24CPI, 13CPI rotated
Optional - Simplified & Traditional Chinese, Hebrew, Arabic, Polish, Greek, Cyrillic
Data / Logo Storage 4 MB Flash / 1 MB RAM
Graphics Printing Supports 8-bit graphic printing, custom font, logo downloading
Auto Cutter No
Barcode Scanner No
Magnetic Card Reader Optional
Media Type Direct thermal receipt paper: Standard, premium, heavy duty, long-life, image protect, hi-temp, all weather
Operating Time Prints approx. 2,640 - 6" long receipts (on a single battery charge)
Paper Dimensions 2.24 in (57 mm)
Roll Diameter: 1.5 in (38.1 mm) maximum
Paper Thickness 0.002 to 0.004 in (0.05 to 0.10 mm)
Peeler / Presenter No
Drop Specification 4 ft. (1.2 m)
Operating Temperature 14°F to 122°F (-10°C to 50°C)
Recharge Temperature 41°F to 104°F (5°C to 40°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Accessories Cigarette Lighter Adapter, RJ11 Serial Cable, USB Cable, Cleaning Cards
Warranty 1 Year

Datamax-O'Neil Apex 2 Reviews

POSGuys Rating:

Customer Reviews

Add a customer product review

Recommended Models

Apex 2, RS-232, Bluetooth without Power Supply
Apex 2 Printer (RS232, iOS Bluetooth, Magnetic Card Reader)

Additional Models

Printer (RS232, iOS, Bluetooth)
Mobile Printer, Black with RS232 Serial, Bluetooth Interfaces
  • color: Black
  • interface: Bluetooth/Serial
  • media supported: Standard, Premium, Heavy-Duty, Long-Life, Image Protect, Hi-Temp, All-Weather
  • print width: 1.89 in.


157261 Apex Universal AC Adapter
Add to Cart
756983 Apex 2 Environmental Case, Adds IP54 Seal
Add to Cart
756998-2 Apex 2 & 4 Belt Loop System
Add to Cart
DA1-WS-W3P0E0C3 Apex 2 Extended Warranty with Comprehensive Coverage, 3 Year Contract
Add to Cart
757351 Apex Series Shoulder Strap
Add to Cart
151133 Apex Car Charger
Add to Cart
5892RJD9-1 Apex RJ11 Serial Cable, Coiled
Add to Cart

Can't find what you're looking for?

It may be in our extended catalog.

Browse all Apex 2 models now or call 800.903.6571 for assistance.

Browse all Apex 2 models →

Previously Available Models

Apex 2 Mobile Printer, Black with RS232 Serial, 802.11b/g Interfaces
This model has reached end of life.
Please Call
Apex 2 Mobile Printer, Black with Built-In MSR, RS232 Serial, 802.11b/g Interfaces
This model has reached end of life.
Please Call
Apex 2 Mobile Printer, Black with Built-In MSR, RS232 Serial, Bluetooth Interfaces
This model has reached end of life.
Please Call
