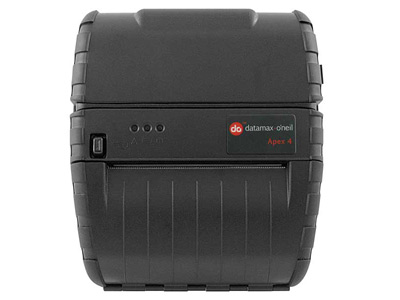

Datamax-O'Neil Apex 4

The pictures shown are general images for product Apex 4 and may not be applicable to all part numbers

Apex 4 Mobile Printers


The Datamax-O'Neil Apex 4 has reached end of life.

The Datamax-O'Neil Apex 4 mobile printer offers 4" wide printouts anywhere you need them. Designed for businesses needing more verbose invoices, such as meter readers or rental services, the Apex 4 is a lightweight and economical alternative to ultra-rugged mobile printers. The Apex 4 comes with your choice of Bluetooth or 802.11b/g wireless communications, as well as an RS-232 wired interface, compatible with most mobile computers.

The economical Apex 4 still maintains durability ideal for day-to-day use. A rubberized overmold protects the mobile printer from drops of about 4 feet and insulates it enough to operate in temperatures as low as 14° F. For extra protection, Datamax-O'Neil offers an environmental case that keeps out dirt & water, further extending the life of your investment. A 1-year warranty is standard on all models, and Datamax-O'Neil offers 3 years, comprehensive-coverage extended warranties.

Features
• Available with integrated MSR
• 4" print width
• 3" per second print speed
• Prints approx 986 6" long receipts per charge
Ships with battery, sample media roll, AC adapter, and shoulder strap
Product Specifications
Dimensions 7.5H x 6.5W x 2.5D in (191 x 166 x 63 mm)
Weight 26.5 oz (0.751 kg)
Color Options Black
Battery Rechargeable Lithium-Ion
Print Method Direct Thermal
Resolution 203 dpi
Print Speed 3 inches per second (76 mm per second)
Print Width 4.10 in (104 mm)
Interfaces Available Standard - USB, Bluetooth
Optional - 802.11
Barcodes Supported Linear: Codes 39, Code128 A/B/C, UCC/ EAN-128, Interleaved2 of 5, UPC/EAN/JAN and Codabar
2D Symbologies: PDF417
Character Set Standard - ASCII, International, PC Line draw – 12CPI, 16CPI, 19CPI, 21CPI, 24CPI, 13CPI rotated
Optional - Simplified & Traditional Chinese, Hebrew, Arabic, Polish, Greek, Cyrillic
Data / Logo Storage 4 MB Flash / 2 MB RAM
Graphics Printing Supports 8-bit graphic printing, custom font, logo downloading
Auto Cutter No
Barcode Scanner No
Magnetic Card Reader Optional
Media Type Direct thermal receipt paper: Standard, premium, heavy duty, long-life, image protect, hi-temp, all weather
Operating Time Prints approx. 986 - 6" long receipts on a single battery charge
Paper Dimensions 4.37 in (111 mm)
Roll Diameter: 2.00 inch (50.8 mm) maximum roll diameter
Paper Thickness 0.002 to 0.006 in (0.05 to 0.15 mm)
Peeler / Presenter No
Drop Specification 4 ft. (1.2 m)
Operating Temperature 14°F to 122°F (-10°C to 50°C)
Recharge Temperature 41°F - 104°F (5°C - 40°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Accessories Cigarette Lighter Adapter, RJ11 Serial Cable, USB Cable, Cleaning Cards
Warranty 1 Year
