Datamax-O'Neil OC3

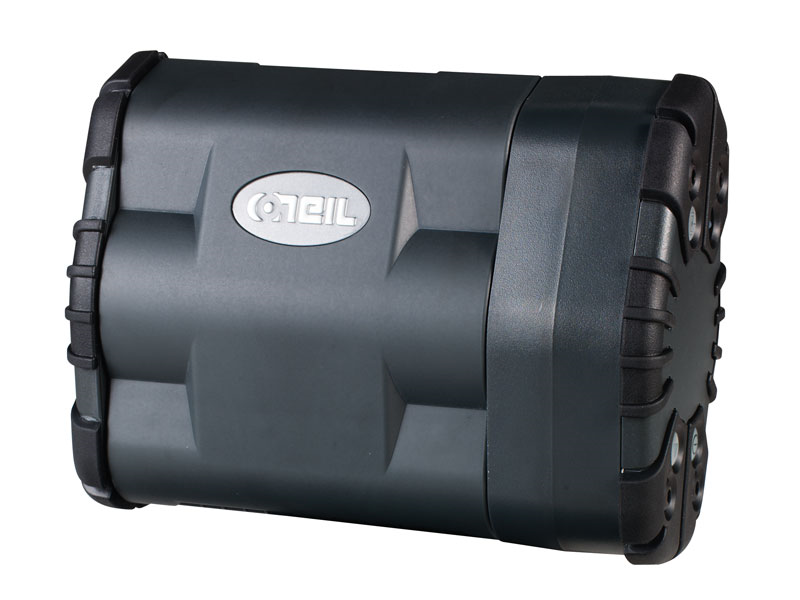

OC3 Product Image

The pictures shown are general images for product OC3 and may not be applicable to all part numbers

OC3 Mobile Printers


The Datamax-O'Neil OC3 has reached end of life.

The Datamax-O'Neil is discontinued. We suggest the Datamax O'Neil Apex 3 as a replacement mobile printer.

The O'Neil OC3 mobile printer provides 3" receipt and label printing via RS-232 Serial, Bluetooth, or 802.11b/g communications methods, freeing you from the tethers of traditional print stations. Ideal for line busting in hospitality and retail settings, issuing citations in law enforcement, or printing work orders for field sales and service, the OC3's versatility extends well beyond traditional mobile printing ideas. The Lithium-Ion battery provides power for a full 10+ hour shift, and is capable of printing up to 1,050-6" receipts on a single charge.

Features
  • -4º to 122º F Operational Temperature Range
  • Driver compatibility with Windows 2000, XP, and Windows CE
  • 2" per second print speed
  • 2 MB RAM, 4 MB Flash ROM for fast print starting
Product Specifications
Dimensions 6.54" x 4.906" x 2.75" (166.12 x 124.61 x 69.85 mm)
Weight 21.41 oz (0.61 kg) - printer only
Color Options Black
Interfaces Available Serial, 802.11b/g, Bluetooth
Battery Rechargeable Lithium-Ion (7.2V Lithium-Ion (Li-Ion), 2200 mAh)
Print Method Direct Thermal
Recharge Time 802.11b/g: Prints approx. 2,544 – 2” x 1.125” labels on a single battery charge (10.6 hours)

Bluetooth: Prints approx. 5,304 – 2” x 1.125” labels on a single battery charge (22.1 hours)
Resolution 203 dpi
Print Speed 2 inch / second (51 mm / second)
Print Width 2.84 inch (72 mm)
Barcodes Supported Linear Barcodes: Codabar, Code 39, Code 93, Code 128, EAN-8, EAN-13, Interleaved 2 of 5, MSI/Plessey, UCC/EAN-128, UPC-A, UPC-E

2D Symbologies: AZTEC, PDF417 , QR
Character Set 5.5CPI, 7.2CPI, 10.7CPI, 18.5CPI 20.4CPI & 22.6CPI (additional fonts available)

Optional Characters: Arabic, Asian (incl Big 5, Simplified Chinese and Shift JIS), Greek, Hebrew, OCRA, OCRB, Unicode subset including Latin & Thai (additional international characters available)
Data / Logo Storage 4 MB Flash, 2 MB RAM
Graphics Printing Supports storage of graphics/logos in Flash memory and transient “print once” graphics
Auto Cutter No
Barcode Scanner No
Magnetic Card Reader Optional
Media Type Labels: 0.75” - 3” linered labels with Q-mark or gap sensing

Paper: Direct thermal receipt paper (standard, premium, heavy duty, long-life, image protect, hi-temp, and all weather) synthetic media, UV coated media

Hang Tags: 2” hang tags
Operating Time 802.11b/g: Prints approx. 2,544 – 2” x 1.125” labels on a single battery charge (10.6 hours)
Bluetooth: Prints approx. 5,304 – 2” x 1.125” labels on a single battery charge (22.1 hours)
Paper Dimensions Width: 1 - 3 Inches
Roll Diameter: 2.25 inch (57 mm) maximum
Paper Thickness 0.0024 to 0.007 in (0.05 to 0.18 mm)
Peeler / Presenter No
Operating Temperature -4°F to 122°F (-20°C to 50°C)
Recharge Temperature 41°F - 104°F (5°C - 40°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Accessories AC Adapter, External Battery Charger, Charging cradle, Magnetic Swipe Card Reader Charging cradle, Smart Card Reader, Cigarette Lighter Adapter, Spare Batteries, Cleaning Cards & Kits, Swivel Belt Loop, Data Cables for Hand-Held Devices, Swivel Belt Loop, DB9 F Cable (coiled), Swivel-Mount Shoulder Strap
Warranty 2 Years
