Datamax-O'Neil RL4

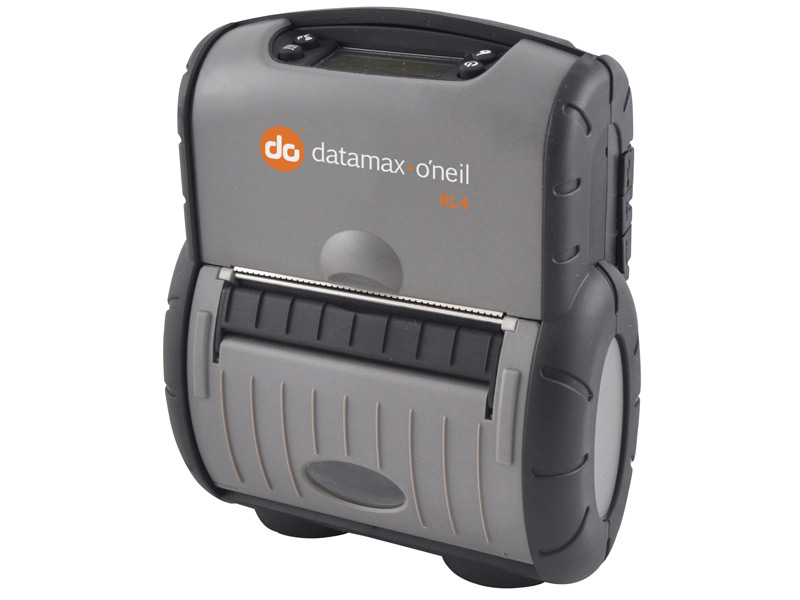

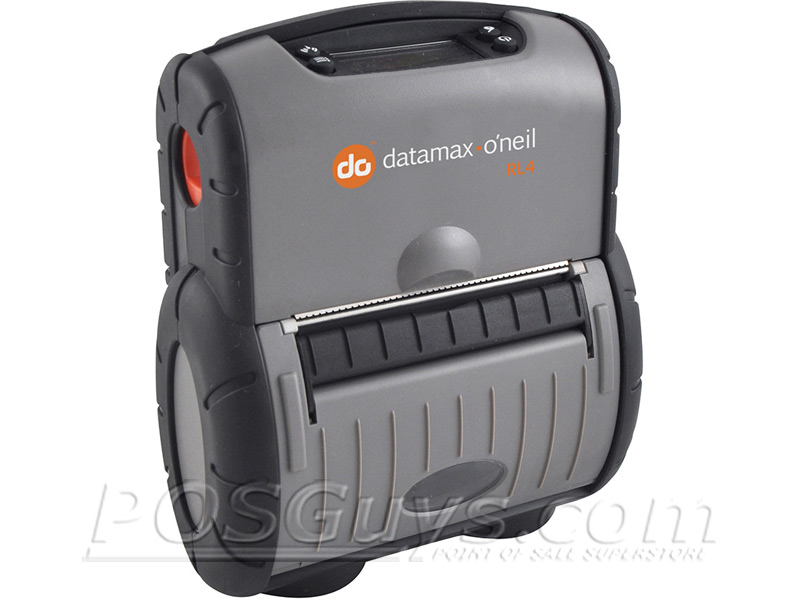

RL4 Product Image

The pictures shown are general images for product RL4 and may not be applicable to all part numbers

RL4 Mobile Printers

The Datamax-O'Neil RL4 has reached end of life.

Take your portable labeling operations virtually anywhere with the Datamax-O'Neil RL4, one of the most durable portable label printers on the market. The RL4 supports labels up to 4" wide, fantastic for shipping and inventory labeling applications, and the 4" per second print speed maximizes labeling productivity.

The RL4 not only offers strong durability, but great ease of use. A recessed LCD display on the top of the unit provides easy-to-read status messages, as opposed to deciphering blinking LEDs. The reinforced hinge has been designed for one handed label roll replacement, minimizing downtime due to media swaps.

Multiple communications methods make the RL4 easy to deploy and integrate in a wide variety of installations. The printer comes standard with wired serial and USB interfaces, and optional Bluetooth or 802.11a/b/g wireless connectivity, ensuring easy communications regardless of your hardware needs. ZPL, CPCL, DPL, IPL, and EZ Print support allows the RL4 to act as a drop-in replacement for many legacy printers.

Datamax-O'Neil built the RL4 with warehouse and industrial use in mind, reinforcing the printer to withstand rough use. Rubberized corners and sturdy internal components protect the RL4 from multiple 6-foot drops to concrete. Latches and hinges on the RL4 are made from die-cast magnesium, adding protection from drops as well as repeated use. The mobile printer also ships with an industry-leading 2-year warranty, making the Datamax-O'Neil RL4 the smart choice for rugged mobile labeling.

• 4" per second print speed
• USB, Serial Standard, Bluetooth & 802.11a/b/g optional
• Withstands 6-foot drops to concrete
• Withstands 2,000 free fall drops from 19.69 in (IEC 60068-2-31 standard)
• Operates in temperatures as cold as 14° F
• Supports ZPL, CPCL, DPL, IPL, and EZ Print languages
• Two year manufacturer warranty (twice the competition)

Charging Note: The RL4 does NOT come with any charging equipment. USB cables, charging docks, and power supplies must be purchased separately. See Accessories for all your charging needs.
Product Specifications
Dimensions 6.52” w x 7.87” h x 3.18” d
Weight 2.16 lbs. (0.98 kg)
Color Options Grey/Dark Grey
Interfaces Available RS-232/USB
Bluetooth Interfaces
User Interfaces 128x64 LCD display with white LED backlighting
Four (4) button user interface
Battery 14.8V Lithium-ion, 2200 mAh (33 W-h)
Operating Time Prints over 320 4”x6” (100x150mm) labels when operating 16 continuous hours on an 802.11 network
Recharge Time 4 - 6 hours
Print Method Direct thermal
Print Speed 4” per second (102 mm per second)
Resolution 203 dots per inch (8 dots per mm)
Print Width 4.125” (105 mm)
Barcodes Supported Standard 1D & 2D Barcodes including PDF417 and QR Codes
Character Set Unicode/UTF8 support; 50 international
Graphics Printing Supports storage of graphics/logos in Flash
Data / Logo Storage 32 MB RAM / 64 MB Flash
Media Type 2.00”– 4.12” (51 – 105 mm) linered and linerless* labels with black mark or gap sensing
External fanfold or roll supply
Paper Dimensions 2.65” (67 mm) O.D.
0.75” (19 mm) I.D. core
Paper Thickness 2 mil to 6.5 mil
Drop Specification Withstands 6-foot drops to concrete
Operating Temperature -4° to 122°F (-20° to 50°C)
Storage Temperature -40° to 140°F (-40° to 60°C)
Recharge Temperature 41° to 104°F (5° to 40°C)
Emulation DPL, ZPL, CPCL, IPL, XML
Warranty 2 years (including platen roller, printhead and installed options) when used with approved supplies

Datamax-O'Neil RL4 Reviews

POSGuys Rating:

The RL4 is extremely rugged, satisfying demanding United States Military Standard requirements and testing to make it the first portable label printer to be MIL-STD-810F certified. This is a specification tailored specifically for DoD (Department of Defense) applications but the standards lend themselves equally to commercial applications. Some examples of testing include: humidity, high temperature, low temperature, shock, leakage, explosive atmosphere, fungus, salt fog, gunfire vibration, acidic atmosphere, sand and dust, rain, solar radiation, and temperature shock.
