Home » Mobile Printers » Datamax-O'Neil microFlash 4t/4te

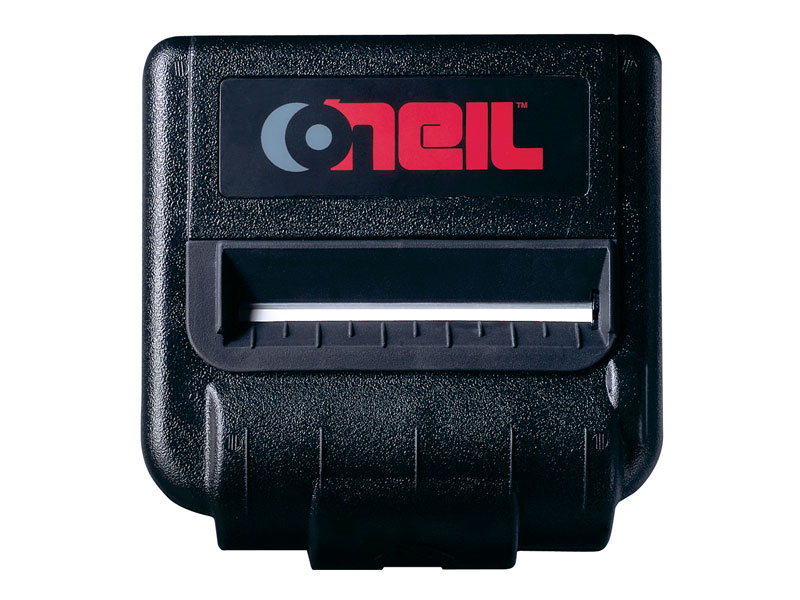

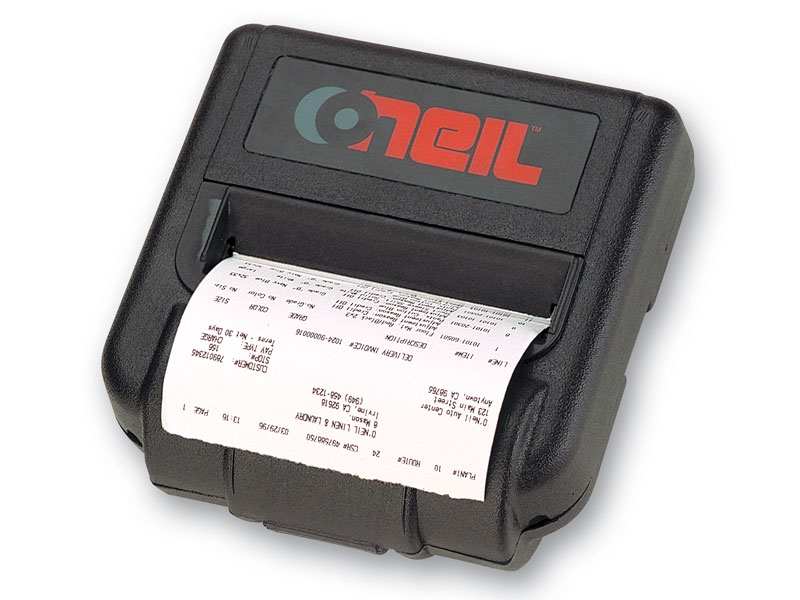

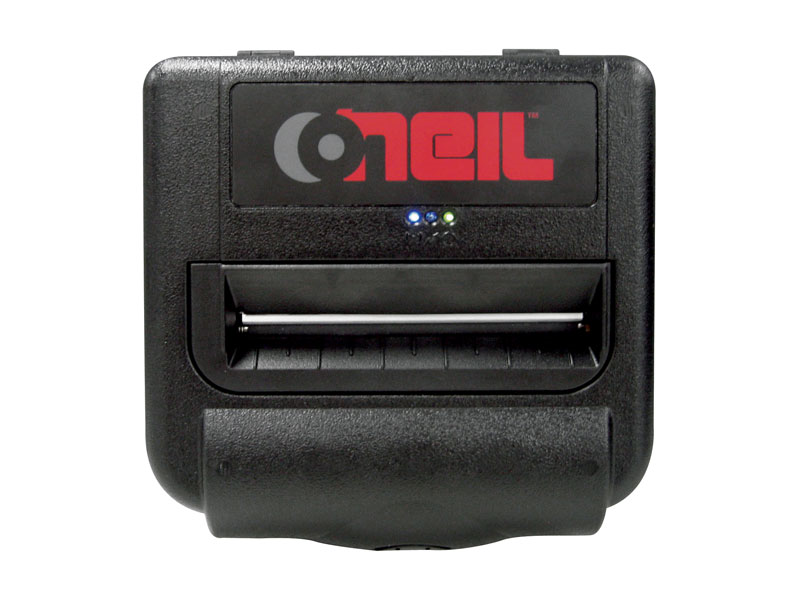

Datamax-O'Neil microFlash 4t/4te

microFlash 4t/4te Mobile Printers


The O'Neil microFlash 4t and 4te mobile thermal printers provide 4" printing for field workers or mobile payment stations. With RS-232 Serial and optional IrDA, Bluetooth, or 802.11b/g communications methods, the microFlash 4t can receive print jobs in virtually any location. The two lithium ion batteries provide enough charge for 13,440" of printing - almost 2,240 6" receipts.

Features
  • 2.5" per second print speed
  • 4 hour recharge time
  • Can withstand multiple 6' drops to concrete
  • Driver support for Windows 2000, XP, and Windows CE*
  • Available in Black only

    *Windows CE Support on StrongArm, Hitachi (SH3, SH4), and MIPS processors

    Windows Vista Drivers are currently unavailable
  • Product Specifications
    Dimensions 6.82" x 6.57" x 2.6" (173.2 x 166.9 x 66 mm)
    Weight 23.75 oz (0.67 kg)
    Color Options Black
    Interfaces Available Serial, IrDA (4t only - not available in radio models), 802.11 b/g (4te only), Bluetooth (4te only)
    Battery (2) 7.2V Lithium-Ion (Li-lon), 2200 mAh (for a total of 4400 mAh)
    Print Method Direct Thermal
    Recharge Time 4-5 hours from AC adapter or cigarette adapter
    Resolution 203 dpi
    Print Speed 2 inch per second (51 mm per second)
    Print Width 4.10 in (104 mm)
    Barcodes Supported Linear: Codabar, Code 39, Code 93, Code 128, EAN-8, EAN-13, Interleaved 2 of 5, MSI/Plessey, UCC/EAN-128, UPC-A,UPC-E
    2D Symbologies: PDF417; AZTEC and QR (available on 4te only)
    Character Set 5.5CPI, 7.2CPI, 10.2 CPI, 10.7CPI, 18.5CPI 20.4CPI, 22.6CPI & 34.0CPI (additional fonts available)
    Optional Characters: Arabic, Greek, Hebrew, OCRA, OCRB, Unicode subset including Latin & Thai (additional international characters available)
    4te Optional Characters: Asian(including Big 5, Simplified Chinese, and Shift JIS)
    Data / Logo Storage 4t: 512 kb Flash, 128 kb RAM
    4te: 4 MB Flash, 2 MB RAM
    Graphics Printing Supports storage of graphics/logos in Flash memory and transient “print once” graphics
    Auto Cutter No
    Barcode Scanner No
    Magnetic Card Reader Optional
    Media Type Direct thermal receipt paper (standard, premium, heavy duty, long-life, image protect, hi-temp, and all weather), synthetic media, UV coated media, labels, linerless labels (optional). For optimum print quality and printer performance, use Certified O’Neil supplies.
    Operating Temperature -4° F to 122° F (-20° C to 50° C)
    Recharge Temperature 41° F to 104° F (5° C to 40° C)
    Storage Temperature -40°F to 140°F (5°C to 40°C)
    Accessories 3" Paper Adapter, Dual External Battery Charger, AC Adapter, Magnetic Stripe Card Reader, Cigarette Lighter Adapter, Paper/Labels, Cleaning Cards & Kits, Spare Batteries, Data Cables for Hand-Held Devices, Swivel Belt Loop, DB9 Download Cable, Swivel-Mount Bracket (optional w/ charge contacts), 5-Bay Depot Charger Kit, Swivel-Mount Shoulder Strap, DC Power Extension
    Warranty 1 Year

    Datamax-O'Neil microFlash 4t/4te Reviews

    POSGuys Rating:

    Customer Reviews

    This product has not been reviewed yet, be the first to share your experience

    Add a customer product review

    Recommended Models

    MicroFlash 4t printer, Color: Black with swivel belt attachment, RS-232 Serial, IrDA interfaces, (requires belt loop 210156-001)
    $805.00
    • color: Black
    • interface: IrDA/Serial
    • print width: 4.10 in.
    • media supported: Direct Thermal Receipt Paper (Standard, Premium, Heavy-Duty, Long-Life, Image Protect, Hi-Temp, All-Weather), Synthetic Media, UV-Coated Media, Labels
    • accessories: Belt Clip
    MicroFlash 4t printer, Color: Black with MSR, Smartcard reader, swivel belt attachment, RS-232 Serial, Bluetooth interfaces, (requires belt loop 210156-001)
    $1,015.00
    • color: Black
    • interface: Bluetooth/Serial
    • print width: 4.10 in.
    • media supported: Direct Thermal Receipt Paper (Standard, Premium, Heavy-Duty, Long-Life, Image Protect, Hi-Temp, All-Weather), Synthetic Media, UV-Coated Media, Labels
    • accessories: Smartcard Reader, Belt Clip
    MicroFlash 4te printer, Color: Black with swivel belt attachment, RS-232 Serial, 802.11b/b interface, (requires belt loop 210156-001)
    $1,178.00
    • color: Black
    • interface: Serial
    • wifi: 802.11b/g
    • print width: 4.10 in.
    • media supported: Direct Thermal Receipt Paper (Standard, Premium, Heavy-Duty, Long-Life, Image Protect, Hi-Temp, All-Weather), Synthetic Media, UV-Coated Media, Labels
    • accessories: Belt Clip
    MicroFlash 4t printer, Color: Black with MSR, Smartcard reader, swivel belt attachment, RS-232 Serial, 802.11b/b interface, (requires belt loop 210156-001)
    $1,360.00
    • color: Black
    • interface: Serial
    • wifi: 802.11b/g
    • print width: 4.10 in.
    • media supported: Direct Thermal Receipt Paper (Standard, Premium, Heavy-Duty, Long-Life, Image Protect, Hi-Temp, All-Weather), Synthetic Media, UV-Coated Media, Labels
    • accessories: Smartcard Reader, Belt Clip
    O'Neil microFlash 4t/4te MicroFlash 4t printer, Color: Black with standard belt attachment, RS-232 Serial, IrDA interfaces
    $805.00
    • color: Black
    • interface: IrDA/Serial
    • print width: 4.10 in.
    • media supported: Direct Thermal Receipt Paper (Standard, Premium, Heavy-Duty, Long-Life, Image Protect, Hi-Temp, All-Weather), Synthetic Media, UV-Coated Media, Labels
    • accessories: Belt Clip
    MicroFlash 4t printer, Color: Black with linerless platen, standard belt attachment, RS-232 Serial, IrDA interfaces
    $850.00
    • color: Black
    • interface: IrDA/Serial
    • print width: 4.10 in.
    • media supported: Direct Thermal Receipt Paper (Standard, Premium, Heavy-Duty, Long-Life, Image Protect, Hi-Temp, All-Weather), Synthetic Media, UV-Coated Media, Labels, Linerless Labels
    • accessories: Belt Clip

    Additional Models

    MicroFlash 4t printer, Color: Black with swivel belt attachment, RS-232 Serial, Bluetooth interfaces, (requires belt loop 210156-001)
    Please Call
    • color: Black
    • interface: Bluetooth/Serial
    • print width: 4.10 in.
    • media supported: Direct Thermal Receipt Paper (Standard, Premium, Heavy-Duty, Long-Life, Image Protect, Hi-Temp, All-Weather), Synthetic Media, UV-Coated Media, Labels
    • accessories: Belt Clip

    Accessories

    210164-100 RS-232 Serial Interface Cable, Coiled Please Call
    220515-100 AC Adapter Please Call
    550039-100 Rechargeable Battery, 2200 mAh Please Call
    210156-001 Belt Loop for Swivel Belt Clip $19.00 Add to Cart

    Previously Available Models

    MicroFlash 4t printer, Color: Black with linerless platen, swivel belt attachment, RS-232 Serial, IrDA interfaces, (requires belt loop 210156-001)
    Please Call
