Epson TM-P20
The pictures shown are general images for product TM-P20 and may not be applicable to all part numbers

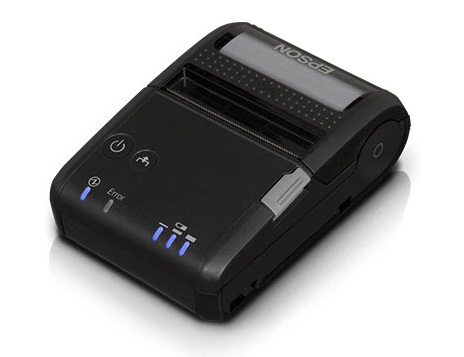

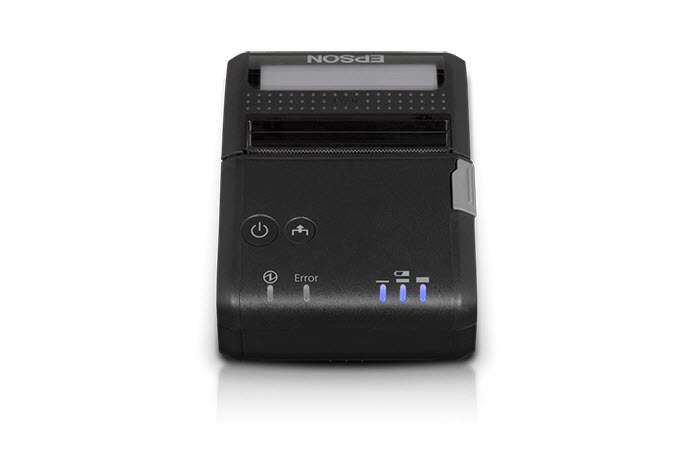

TM-P20 Mobile Printers
Epson's Mobilink P20 is an ultra compact 2" receipt printer that weighs only .50 lbs pounds and fits in the palm of your hand. It delivers all the features you need to print anywhere, anytime. Featuring Epson’s ePOS-Print technology, it can print directly from any mobile devices running an iOS, Android or Windows operating system.
Highlighted Features
- Multi-platform printing — mPOS friendly; compatible with iOS®, Android™ and Windows® mobile devices; easy setup with included TM Printer Utility
- Operational up to 26 hours (Bluetooth®), or up to 16 hours (wireless)
- 100 mm/sec Print Speed
- Easy wireless configuration — 802.11 a/b/g/n with 2.4 GHz/5 GHz compatibility, plus Bluetooth 3.0 (EDR supported); supports wireless security WEP, WPA and WPA2-Enterprise
- Rugged design — 6.5-foot drop rating and IP54-ready with padded case
- Incliudes ESC/POS®, OPOS and JavaPOS™ drivers
- Paper-saving options — reduce your paper usage by up to 23 percent
| Product Specifications | |
|---|---|
| Dimensions (W x D x H) | 3.11" x 4.71" x 1.71" (79.0 x 119.8 x 43.6mm) |
| Weight | Receipt version: 0.5 lbs (228g) with battery, without roll paper and belt clip |
| Print Resolution | Dots / inch: 203 dpi |
| Print Speed | 100mm/sec (max.) |
| Operating Temperature | 10 to 50° C (14 to 122° F°) Bluetooth model 0 to 50° C (32 to 122° F°) Wi-Fi model |
| Max Paper Width | 58mm |
| Roll Diameter | 40.4mm |
| Connectivity | 802.11b/g/n (2.4GHz) and 802.11a/n (5GHz) orBluetooth 3.0 (EDR supported) |
| Printer Reliability | 10 million printing lines |
| Drop Specifications | Test rating of 6.5 feet |
| Warranty | 1 Year Manufacture Warranty |
| Battery Life | Up to 16 hours with WiFi, up to 26 hours with Bluetooth |
| What's In the Box | Battery, Printer Charger, AC adapter — Type C, AC cable, USB cable, Belt clip, Roll paper (for initial check), CD-ROM, Set-up guide |
Epson TM-P20 Reviews
Customer Reviews
| Downloads |
|---|
| TM-P20 Technical Reference Guide |
