Honeywell RP4f Series

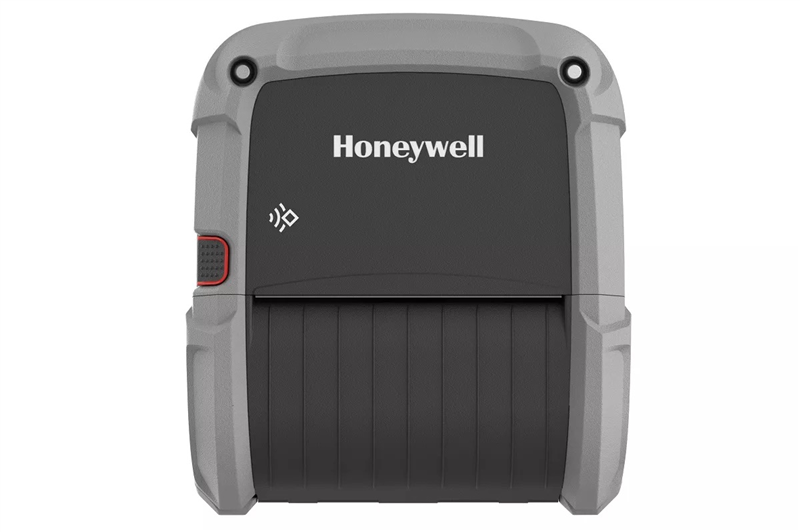

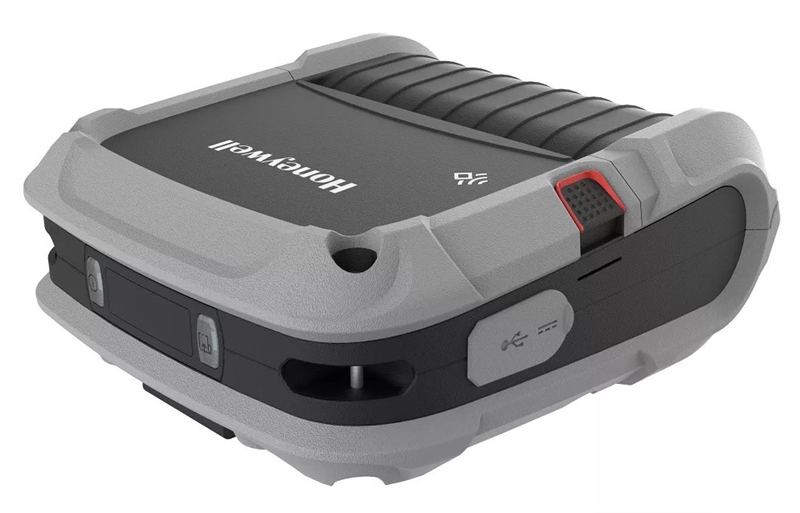

The pictures shown are general images for product RP4f Series and may not be applicable to all part numbers
RP4f Series Mobile Printers
This product replaces the older Honeywell RP4e Series.
The RPf Series Mobile Printers are built for the Most Rugged Environments, Offering Exceptional Media and Battery Capacity, Quiet Operation, and Excellent Value.
The RPf printer comes with a powerful CPU and smart power management – allowing smooth, continuous operation so your workers can work efficiently with less media reloading, battery swaps, and downtime.
The RPf Series printer prints 25.4mm (1 in) to 104.1 mm (4.1 in) labels/receipts and can accommodate a wide variety of media, including the heavy stock necessary for hang tags and specialty label needs.
The RPf Series has the latest 802.11 a/b/g/n/ac Wi-Fi capabilities for the best range and fast data communications on your WLAN. It also includes a Bluetooth 5.0 LE radio at no additional charge for when workers are outside of WLAN range or using the printer with a Bluetooth mobile computer.
- Features
- Ultra-rugged: survives 2 m (6.6 ft) drops and 1,000 0.5 m (1.6 ft) tumbles, has an IP54 rating for dust and moisture ingress, and operates over a wide temperature range.
- Lightweight, ergonomic design allows workers to carry and operate the printer with ease.
- High-discharge current lithium-ion cell battery can be swapped without resetting the printer or losing connectivity.
- Operational Intelligence solution provides analytics to help manage, track, and optimize printer assets, enabling proactive maintenance and replacement.
- The printer provides superior media capacity and supports labels with/ without a liner; can also sense gaps between labels or black marks on the top or bottom of media.
| Product Specifications | |
|---|---|
| Print Method | Direct Thermal |
| Print Speed | 25-125 mm/s (1-5 ips) |
| Print Resolution | 203 dpi |
| Media Width | 51 mm (2.0 in) to 111 mm (4.4 in) |
| Roll Diameter | 58 mm (2.25 in) outside diameter |
| Core Diameter | 10.16 mm (0.4 in), 19 mm (0.75 in), or 25.4 mm (1.0 in) inside diameter |
| Auto Cutter | No |
| Connectivity | USB 2.0 OTG, NFC, Bluetooth 5.0 + LE dual radio mode, 802.11 a/b/g/n/ac and Bluetooth with dual radio mode; wireless access modes: Infrastructure and ad hoc |
| Supported OS | Android 4.0+, iOS 10.3+, Windows 10+ |
| IP Rating | IP54 |
| Drop Rating | 2 m (6.6 ft) |
| Tumble Test | 1,000 cycles at 0.5 m (1.6 ft) |
| Battery Life | 4900 mAh with battery age LED indicator |
| Dimensions (H x W x D) | 187 mm x 164 mm x 77 mm (7.36 in x 6.46 in x 3.0 in) |
| Weight | 1.02 kg (2.24 lb) (with battery, no media) |
| Warranty | One year factory warranty |
