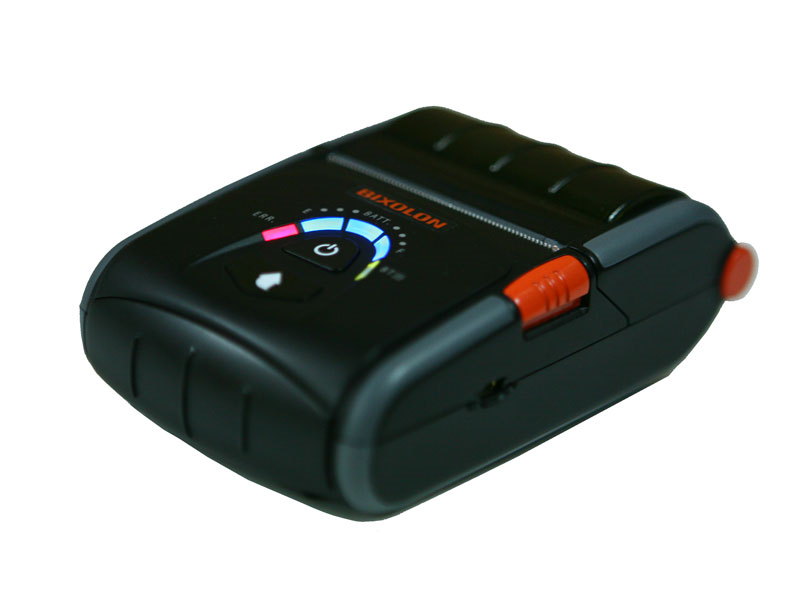

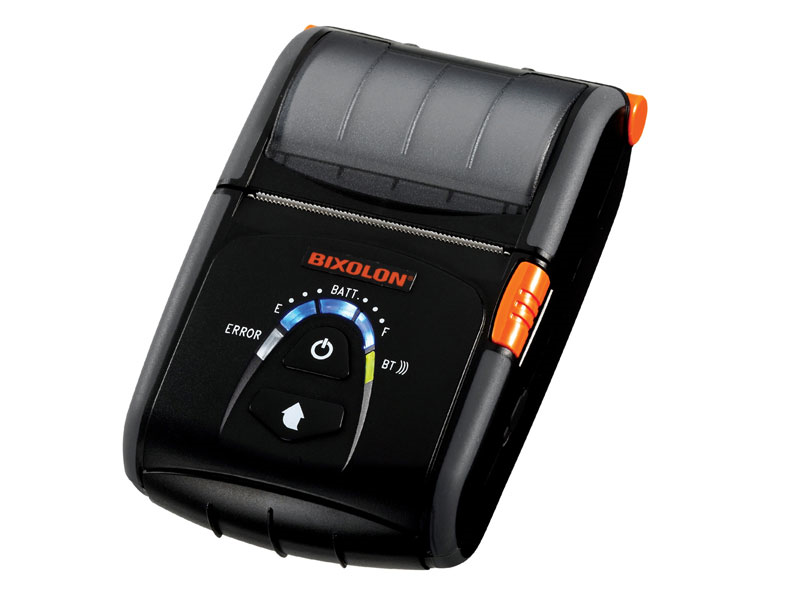

Samsung SPP-R200

SPP-R200 Mobile Printers

The Samsung SPP-R200 has reached end of life.

The Samsung SPP-R200 mobile printer utilizes a small and lightweight form factor to make mobile sales easier than ever. Rated at 3.15" per second, the SPP-R200 prints 2.5" wide receipts with ease. The rubberized overmolding on the body protects the SPP-R200 from drops of 4 feet to concrete, keeping it safe if it breaks free from its belt strap. An optional integrated magnetic card reader allows payments to take place wherever you are, creating convenience and peace of mind for the customer.

Features

LEDs indicate battery life and connection/paper status

Driver support for Windows CE 4.2, 5.0, Windows 95 and greater

USB, Serial, and Bluetooth communication options Purchase Receipt Paper

Product Specifications
Dimensions	79.5 mm x 126.7 mm x 43.6 mm (3.1" x 5.0" x 1.7")
Weight	184 g (0.41 lb) - printer
Color Options	Black
Interfaces Available	Serial/USB, Bluetooth
Battery	Rechargeable Lithium-Ion (Voltage - 7.4 VDC / Capacity - 1200 mAh)
Print Method	Direct Thermal
Resolution	203 dpi
Recharge Time	2.5 Hours
Character/Line	Font A: 32 Font B: 42
Print Speed	3.15 in / second (80 mm / second)
Barcodes Supported	Linear Barcodes : Codabar, ITF, UPC A, UPC B, CODE 39, CODE 93, Code 128, EAN 8, EAN 13, EAN 18, 2D : QR Code, Maxi Code, PDF417, Data Matrix
Character Set	95 Alphanumeric characters, 32 international character
Data / Logo Storage	16 MB Flash, 64 MB SDRAM
Graphics Printing	128 x 20 pages (included in the standard firmware)
Auto Cutter	No
Barcode Scanner	No
Magnetic Card Reader	Optional (integrated MSR)
Media Type	Thermal paper
Operating Time	6.2 hours
Paper Dimensions	2.28 in ±0.2 (58 mm ±0.5) width Roll Diameter: 1.57 in (40 mm)
Peeler / Presenter	No
Drop Specification	4 ft (1.2 m)
Operating Temperature	14°F to 122°F (-10°C to 50°C)
Recharge Temperature	32°F - 104°F (0°C - 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Accessories	Battery, Battery Holder, Leather Case, Interface Cable, Cigarette Lighter Jack Charger
In The Box	Battery, Battery Charger, Belt Strap, Cleaning Pen

Downloads
Data Sheet (English)
Manual (English)
Manual (Español)
Manual - Text Code
Manual - Command
Windows Drivers
