Zebra RW 420

Part of Discontinued

Color Options

Black/Grey

POSGuys Rating:

Lifetime Support 1 Year Warranty 15 Day Return Period Free Shipping

View Zebra RW 420 Details

Recommended Models

R4A-RULB-KIT

RW 420 Portable Printer Kit. Includes Printer (RS-232, USB, 8MB DRAM, 4MB Flash, LCD, Belt Clip. Color: Black/Gray), Interface Cable, and Fast Battery Charger. (Parts R4A-0U0A000N-00, AT17010-1, AT17696-1)
This model has reached end of life.

Please Call

accessories: Belt Clip
color: Black/Grey
interface: USB/Serial
media supported: Direct Thermal Tags & Receipts, Synthetic Media, UV Coated Media, Limited Label Support
print width: 4.09 in.

R4A-RULCMSR-KIT

RW 420 Portable Printer Kit. Includes Printer (RS-232, USB, 4 Inch Printhead, LCD, 8MB DRAM, 4MB Flash, Cable Ready, Standard Media, Magnetic Card/Smart Card Reader Reader, Belt Clip. Color: Black/Gray), Interface Cable, and Fast Battery Charger. (Parts R4A-0U0A010N-00, AT17010-1, AT17696-1)
This model has reached end of life.

Please Call

accessories: Magnetic Stripe Reader, Belt Clip
color: Black/Grey
interface: USB/Serial
media supported: Direct Thermal Tags & Receipts, Synthetic Media, UV Coated Media, Limited Label Support
print width: 4.09 in.

R4A-RUBLB-KIT

RW 420 Portable Printer Kit. Includes Printer (RS-232, USB, Bluetooth, 8MB DRAM, 4MB Flash, LCD, Belt Clip. Color: Black/Gray), Interface Cable, and Fast Battery Charger. (Parts R4A-0UBA000N-00, AT17010-1, AT17696-1)
This model has reached end of life.

Please Call

accessories: Belt Clip
color: Black/Grey
interface: USB/Bluetooth
media supported: Direct Thermal Tags & Receipts, Synthetic Media, UV Coated Media, Limited Label Support
print width: 4.09 in.

R4A-RUBMSRB-KIT

RW 420 Portable Printer Kit. Includes Printer (RS-232, USB, Bluetooth, 8MB DRAM, 4MB Flash, Magnetic Card/Smart Card Reader, Belt Clip. Color: Black/Gray), Interface Cable, and Fast Battery Charger. (Parts R4A-0UBA010N-00, AT17010-1, AT17696-1)
This model has reached end of life.

Please Call

accessories: Magnetic Stripe Reader, Belt Clip
color: Black/Grey
interface: USB/Bluetooth/Serial
media supported: Direct Thermal Tags & Receipts, Synthetic Media, UV Coated Media, Limited Label Support
print width: 4.09 in.

R4A-RUZ8S-KIT

RW 420 Portable Printer Kit. Includes Printer (RS-232, USB, Zebra Value Radio 802.11b, 4 Inch Printhead, LCD, 8MB DRAM, 4MB Flash, Standard Media, N Group. Color: Black/Gray), Interface Cable, and Fast Battery Charger. (Parts R4A-0UFA000N-00, AT17010-1, AT17696-1)
This model has reached end of life.

Please Call

color: Black/Grey
interface: USB/Serial
media supported: Direct Thermal Tags & Receipts, Synthetic Media, UV Coated Media, Limited Label Support
print width: 4.09 in.
wifi: 802.11b

R4A-RUZ8MSR-KIT

RW 420 Portable Printer Kit. Includes Printer (RS-232, USB, Zebra Value Radio 802.11b, 4 Inch Printhead, LCD, 8MB DRAM, 4MB Flash, Standard Media, Magnetic Card Reader, N Group. Color: Black/Gray), Interface Cable, and Fast Battery Charger. (Parts R4A-0UKA010N-00, AT17010-1, AT17696-1)
This model has reached end of life.

Please Call

accessories: Magnetic Stripe Reader
color: Black/Grey
interface: USB/Serial
media supported: Direct Thermal Tags & Receipts, Synthetic Media, UV Coated Media, Limited Label Support
print width: 4.09 in.
wifi: 802.11b

R4A-RUBS8-KIT

RW 420 Portable Printer Kit. Includes Printer (RS-232, USB, Bluetooth, Symbol 802.11b, 4 Inch Printhead, LCD, 8MB DRAM, 4MB Flash, Standard Media, N Group. Color: Black/Gray), Interface Cable, and Fast Battery Charger. (Parts R4A-0ULA000N-00, AT17010-1, AT17696-1)
This model has reached end of life.

Please Call

color: Black/Grey
interface: USB/Bluetooth/Serial
media supported: Direct Thermal Tags & Receipts, Synthetic Media, UV Coated Media, Limited Label Support
print width: 4.09 in.
wifi: 802.11b

R4A-RUBS8MSR-KIT

RW 420 Portable Printer Kit. Includes Printer (RS-232, USB, Bluetooth, Symbol 802.11b, 4 Inch Printhead, LCD, 8MB DRAM, 4MB Flash, Standard Media, Magnetic Card/Smart Card Reader, N Group. Color: Black/Gray), Interface Cable, and Fast Battery Charger. (Parts R4A-0ULA010N-00, AT17010-1, AT17696-1)
This model has reached end of life.

Please Call

accessories: Magnetic Stripe Reader
color: Black/Grey
interface: USB/Bluetooth/Serial
media supported: Direct Thermal Tags & Receipts, Synthetic Media, UV Coated Media, Limited Label Support
print width: 4.09 in.
wifi: 802.11b

R4A-RUS8LB-KIT

RW 420 Portable Printer Kit. Includes Printer (RS-232, USB, Symbol 802.11b, 8MB DRAM, 4MB Flash, LCD, Belt Clip. Color: Black/Gray), Interface Cable, and Fast Battery Charger. (Parts R4A-0UMA000N-00, AT17010-1, AT17696-1)
This model has reached end of life.

Please Call

color: Black/Grey
interface: USB/Serial
media supported: Direct Thermal Tags & Receipts, Synthetic Media, UV Coated Media, Limited Label Support
print width: 4.09 in.
wifi: 802.11b

R4A-RUS8MSR-KIT

RW 420 Portable Printer Kit. Includes Printer (RS-232, USB, Symbol 802.11b, 8MB DRAM, 4MB Flash, Magnetic Card/Smart Card Reader, Belt Clip. Color: Black/Gray), Interface Cable, and Fast Battery Charger. (Parts R4A-0UMA010N-00, AT17010-1, AT17696-1)
This model has reached end of life.

Please Call

accessories: Magnetic Stripe Reader, Belt Clip
color: Black/Grey
interface: USB/Serial
media supported: Direct Thermal Tags & Receipts, Synthetic Media, UV Coated Media, Limited Label Support
print width: 4.09 in.
wifi: 802.11b

Additional Models

R4A-0U0A000N-00

RW 420 Portable Printer, Black/Gray With 8MB DRAM, 4MB Flash, LCD and Belt Clip. RS-232 Serial, USB Interfaces
This model has reached end of life.

Please Call

accessories: Belt Clip
color: Black/Grey
interface: USB/Serial
media supported: Direct Thermal Tags & Receipts, Synthetic Media, UV Coated Media, Limited Label Support
print width: 4.09 in.

R4A-0U0A010N-00

RW 420 Portable Printer, Black/Gray With 4 Inch Printhead, LCD, 8MB DRAM, 4MB Flash, Cable Ready, Standard Media, Magnetic Card/Smart Card Reader Reader and Belt Clip. RS-232 Serial, USB Interfaces
This model has reached end of life.

Please Call

accessories: Magnetic Stripe Reader, Belt Clip
color: Black/Grey
interface: USB/Serial
media supported: Direct Thermal Tags & Receipts, Synthetic Media, UV Coated Media, Limited Label Support
print width: 4.09 in.

R4A-0UBA000N-00

RW 420 Portable Printer, Black/Gray With 8MB DRAM, 4MB Flash, LCD, and Belt Clip. RS-232 Serial, USB, Bluetooth Interfaces
This model has reached end of life.

Please Call

accessories: Belt Clip
color: Black/Grey
interface: USB/Bluetooth/Serial
media supported: Direct Thermal Tags & Receipts, Synthetic Media, UV Coated Media, Limited Label Support
print width: 4.09 in.

R4A-0UBA010N-00

RW 420 Portable Printer, Black/Gray With 8MB DRAM, 4MB Flash, Magnetic Card/Smart Card Reader, Belt Clip. RS-232 Serial, USB, Bluetooth Interfaces
This model has reached end of life.

Please Call

accessories: Magnetic Stripe Reader, Belt Clip
color: Black/Grey
interface: USB/Bluetooth/Serial
media supported: Direct Thermal Tags & Receipts, Synthetic Media, UV Coated Media, Limited Label Support
print width: 4.09 in.

R4A-0UFA000N-00

RW 420 Portable Printer, Black/Gray With 4 Inch Printhead, LCD, 8MB DRAM, 4MB Flash, Standard Media and N Group. RS-232 Serial, USB, Zebra Value Radio 802.11b Interfaces
This model has reached end of life.

Please Call

color: Black/Grey
interface: USB/Serial
media supported: Direct Thermal Tags & Receipts, Synthetic Media, UV Coated Media, Limited Label Support
print width: 4.09 in.
wifi: 802.11b

R4A-0UKA010N-00

RW 420 Portable Printer, Black/Gray With 4 Inch Printhead, LCD, 8MB DRAM, 4MB Flash, Standard Media, Magnetic Card Reader and N Group. RS-232 Serial, USB, Zebra Value Radio 802.11g Interfaces
This model has reached end of life.

Please Call

accessories: Magnetic Stripe Reader
color: Black/Grey
interface: USB/Serial
media supported: Direct Thermal Tags & Receipts, Synthetic Media, UV Coated Media, Limited Label Support
print width: 4.09 in.
wifi: 802.11g

R4A-0ULA000N-00

RW 420 Portable Printer, Black/Gray With 4 Inch Printhead, LCD, 8MB DRAM, 4MB Flash, Standard Media and N Group. RS-232 Serial, USB, Bluetooth, Symbol 802.11b Interfaces
This model has reached end of life.

Please Call

color: Black/Grey
interface: USB/Bluetooth/Serial
media supported: Direct Thermal Tags & Receipts, Synthetic Media, UV Coated Media, Limited Label Support
print width: 4.09 in.
wifi: 802.11b

R4A-0UMA000N-00

RW 420 Portable Printer, Black/Gray With 8MB DRAM, 4MB Flash, LCD, and Belt Clip. RS-232 Serial, USB, Symbol 802.11b Interfaces
This model has reached end of life.

Please Call

accessories: Belt Clip
color: Black/Grey
interface: USB/Serial
media supported: Direct Thermal Tags & Receipts, Synthetic Media, UV Coated Media, Limited Label Support
print width: 4.09 in.
wifi: 802.11b

R4A-0UMA010N-00

RW 420 Portable Printer, Black/Gray With 8MB DRAM, 4MB Flash, Magnetic Card/Smart Card Reader, and Belt Clip. RS-232 Serial, USB, Symbol 802.11b Interfaces
This model has reached end of life.

Please Call

accessories: Magnetic Stripe Reader, Belt Clip
color: Black/Grey
interface: USB/Serial
media supported: Direct Thermal Tags & Receipts, Synthetic Media, UV Coated Media, Limited Label Support
print width: 4.09 in.
wifi: 802.11b

Accessories

AK17463-001

Soft Shell Case

$90.00

Add to Cart

AK17463-005

Lithium Ion Battery for RW 420 (Batteries must be shipped via ground shipping)

$134.00

Add to Cart

AT17010-1

USB Interface Cable, 1 meter

$26.33

Add to Cart

BL17205-1

Serial Interface Cable

$28.29

Add to Cart

CC16614-9

Power Supply with Car Adapter

$118.00

Add to Cart

AT17696-1

Fast Battery Charger

$79.49

Add to Cart

29652

10-Foot USB Ultima 2.0 Cable: Black, A to 5-Pin Mini B - High Performance

$13.90

Add to Cart

Previously Available Models

R4A-0ULA010N-00

RW 420 Portable Printer, Black/Gray With 4 Inch Printhead, LCD, 8MB DRAM, 4MB Flash, Standard Media, Magnetic Card/Smart Card Reader and N Group. RS-232 Serial, USB, Bluetooth, Symbol 802.11b Interfaces.
This model has reached end of life.

Please Call

Description
Specs
Review
Downloads

RW 420 Mobile Printers

The Zebra RW 420 has reached end of life. It has been replaced by the Zebra RW 420 Print Station.

This product replaces the older Zebra RW 220.

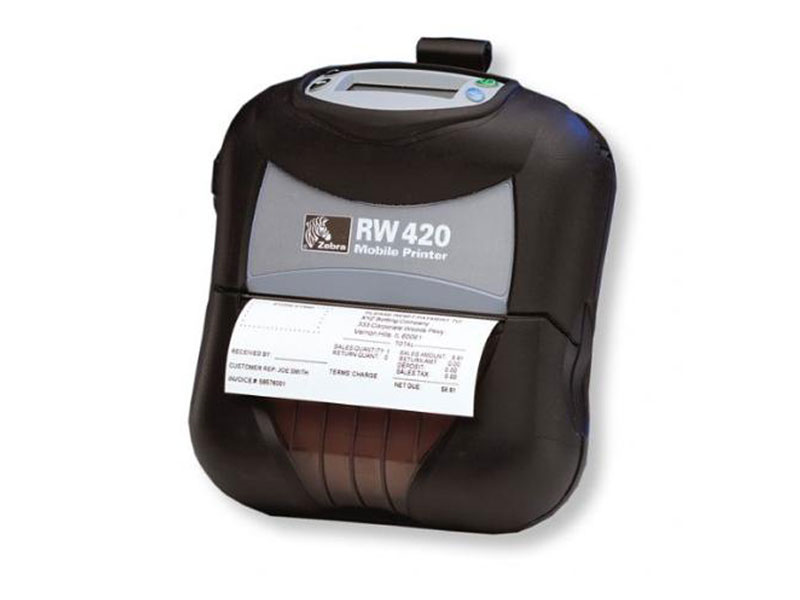

The Zebra RW 420 mobile printer provides fast and durable printing where you need it, ideal for delivery receipts and invoices on the go. With a 4.09" effective printing width, the RW 420 can print labels, tags, and receipts via RS-232 Serial, USB, Bluetooth, or 802.11b/g interfaces. A ruggedized overmold body protects the printer from 6' drops to concrete, making the Zebra RW 420 a great choice for rougher portable retail environments.

Features

Optional MSR

3" per second print speed

IP54 Seal protects against dust and water sprays

Able to print common 1D and 2D barcodes

Product Specifications
Dimensions	Base Model: 6.3 W x 3.0 D x 6.9" H (160 x 76 x 175 mm) Card Reader Model: 6.3 W x 3.1 D x 6.9" H (160 x 79 x 175 mm)
Weight	Base Model: 2.00 lbs Card Reader Model: 2.15 lbs
Color Options	Black/Grey
Interfaces Available	USB RS-232 Bluetooth 802.11b/g
Interfaces Available	4 Button Angled LCD
Battery	4.0 Ah, 7.4V battery
Print Method	Direct Thermal
Print Speed	3"/76.2 mm per second
Print Width	4.09"/104 mm
Resolution	203 dpi
Barcodes Supported	Standard 1D and 2D Barcodes
Character Set	Standard fonts*: 25 bitmapped, 1 smooth, scalable
Graphics Printing	Supports user defined fonts, graphics and logos
Magnetic Card Reader	Yes, Optional
Media Type	Direct Thermal Tags & Receipts Synthetic Media UV Coated Media Limited Label Support
Paper Dimensions	Roll Size (Max): Roll Size (Max): (O.D.): 2.25"/57 mm Media Width (Max): 2"/51 mm to 4.12"/105 mm
Paper Thickness	.002"/.05 mm to .0063"/.16 mm
Drop Specification	6-foot multiple drops to concrete•
Environmental Sealing	IP54
Operating Temperature	-4º F/-20º C to 131º F/55º C
Storage Temperature	-22º F/-30º C to 149º F/65º C
Accessories	Magnetic stripe reader EMV-certified smart card reader Lithium Ion Fast AC Charger LIthium Ion Quad Charger Cigarerette Lighter Charger Vehicle Cradle Ram Mount Kit Shoulder Strap/Hand Strap Soft Case
Warranty	1 Year Manufacturer Warranty
