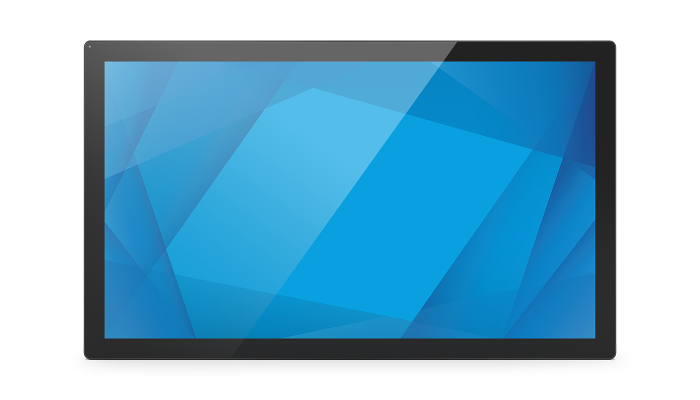

_800_700.png "04L Series Product Image")
The pictures shown are general images for product 04L Series and may not be applicable to all part numbers

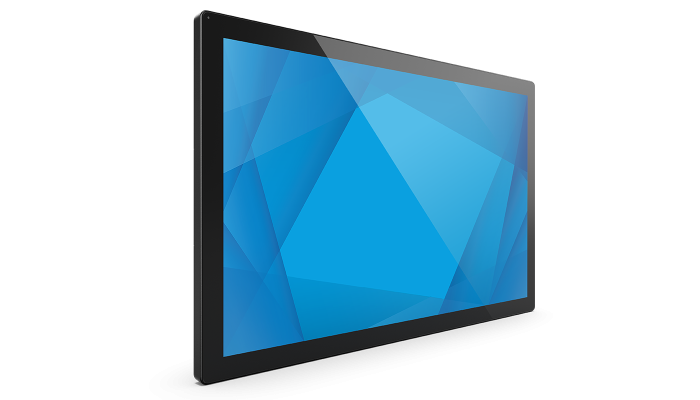

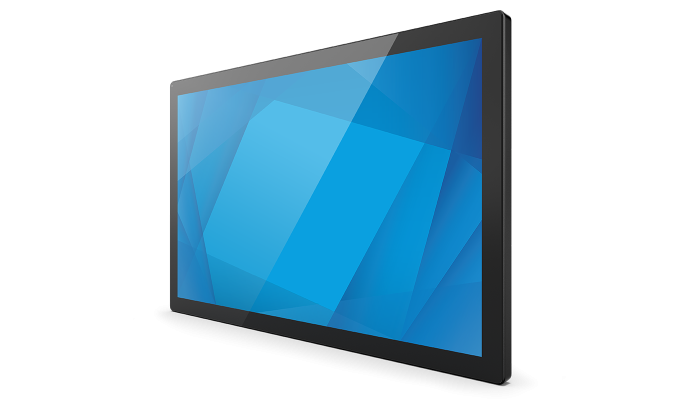

_800_600.png "Alternate image for 04L Series"){kind=small}
_800_600.png "Alternate image for 04L Series"){kind=small}
_800_600.png "Alternate image for 04L Series"){kind=small}
_800_600.png "Alternate image for 04L Series"){kind=small}
04L Series POS Touch Screen Monitor
Where is the Manual Trigger Button on 2D Barcode Scanners?
3204L / 4304L Interactive Displays (32″ & 43″)
Elevate your applications with Elo’s 3204L / 4304L touch display series, built to bring interactive experiences to any setting. Choose 32″ or 43″ while keeping a consistent commercial-grade platform across deployments.
With support for up to 40 simultaneous touches, lightning-fast responsiveness and anti-friction glass, these displays prioritize the user experience for digital signage, self-service and interactive workflows.
Pair the display with an Elo Backpack or BrightSign player to create a versatile, life-sized touchscreen solution that’s easy to standardize and scale.

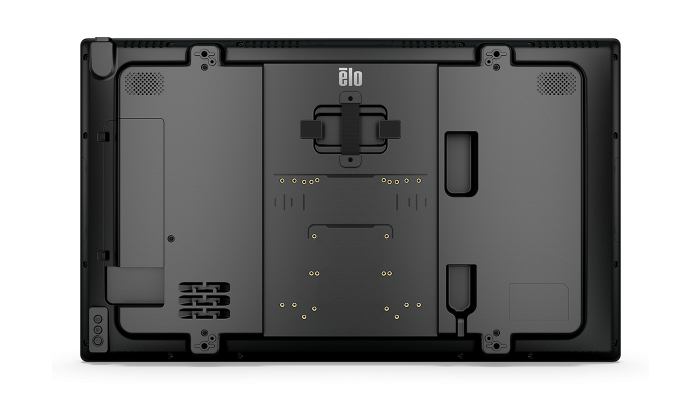

The Back of Your Display Never Looked So Clean.
Streamline installations with integrated mounting and cable management features designed to keep the back of your display tidy.
- VESA for PC mounting
- Power brick & power cable mounting
- External PC power passthrough
- Contained cable routing
Remote Device Management with EloView.
With integrated IoT control, you can manage device settings through EloView, Crestron or your preferred MDM solution using the provided APIs.
Find the Perfect Size for Your Application.
Standardize on a consistent Elo platform while selecting the right size for every deployment. On this page you can choose 32″ or 43″, and Elo’s large-format touchscreen lineup extends beyond that for organizations that want a unified look and feel across locations.
Connect Accessories to the Edge.
With up to 1.2 amps available, these displays can power up to four Elo Edge Connect peripherals at once for cameras, scanners and more.
Touch Through Glass Enabled with PCAP.
Elo’s TouchPro® PCAP technology supports touch through glass and protective overlays, enabling secure installs behind a mirror, within a counter or inside a fully encased kiosk.
Versatile Mounting Options.
Mount your display in landscape, portrait or tabletop orientations with flexible options for wall, kiosk or tabletop installations.
Built for 24/7 Commercial Use.
- 24/7 operation
- IK07 impact resistance
- UL 60950 compliance
- Global certifications
Designed for high-traffic environments with extended product life cycles for long-term deployments.
Get Peace of Mind with EloCareSM.
EloCare delivers service and support from the people who know your Elo products best, with coverage options designed to keep deployments running smoothly.
Quality That’s Built to Last.
Elo engineers each product to exceed expectations, delivering reliable, commercial-grade hardware backed by a global support organization.
| Product Specifications | |
|---|---|
| Bezel Color | Black |
| Display | 31.5" / 800.1 mm diagonal, active matrix TFT LCD |
| Active Display Area (W x H) | 27.5" x 15.47" / 698.4 mm x 392.9 mm |
| Touch Technology | TouchPro® PCAP – up to 40 touches with palm rejection |
| Touch Thru | TouchPro® PCAP supports up to 6mm glass / 3mm plastic with up to 2 touches. Supports gloves up to 1.4mm. |
| Aspect Ratio | 16:9 |
| Native Resolution | 1920 x 1080 @ 60Hz |
| Preset Video Timings |
|
| Number of Colors | 16.7 million, 8bit(D) |
| Brightness (typical) | LCD Panel 400 nits; with PCAP 320 nits |
| Response Time (typical) | 8 msec |
| Viewing Angle (typical) | Horizontal: ±89° / 178° total Vertical: ±89° / 178° total |
| Contrast Ratio (typical) | 3000:1 |
| Compute Mounting Options | Elo Backpack 4 & 5 with Android, Elo Backpack with Intel, Intel NUC with 100mm x 100mm VESA mounting plate, BrightSign XT/XD/HD series player |
| Built-in IoT Control | EloView cloud control supported; Crestron Connected® V2 supported |
| On-Screen Display (OSD) |
|
| I/O Ports | 2x HDMI 1.4, DisplayPort 1.2, USB-C (touch + video), RJ45 (IoT LAN), RJ45 (OSD remote), 3.5mm TRS (RS-232/MDC), 3.5mm audio out, 4x Elo Edge Connect (Micro USB), USB-A (Wi-Fi dongle only) |
| Control Buttons | Power, Video Source Selection, On-Screen Display |
| Power |
|
| Audio | 2 x 5W integrated speakers; 3.5mm headphone output |
| Mounting Options | VESA 400 x 400 mm, M6 |
| Dimensions | 30.07" x 18.04" x 1.95" / 763.7 x 458.1 x 49.6 mm |
| Weight | Unpackaged: 26.17 lbs / 10.9 kg Packaged: 33.75 lbs / 15.28 kg |
| Operating Time | 24 hours/day |
| Compliance | Energy Star® 8.0 |
| Warranty | 3-year standard warranty with AUR included |
