Elo TouchSystems 04LS Series
The pictures shown are general images for product 04LS Series and may not be applicable to all part numbers
04LS Series POS Touch Screen Monitor
This product replaces the older Elo TouchSystems 0764L 7-inch.

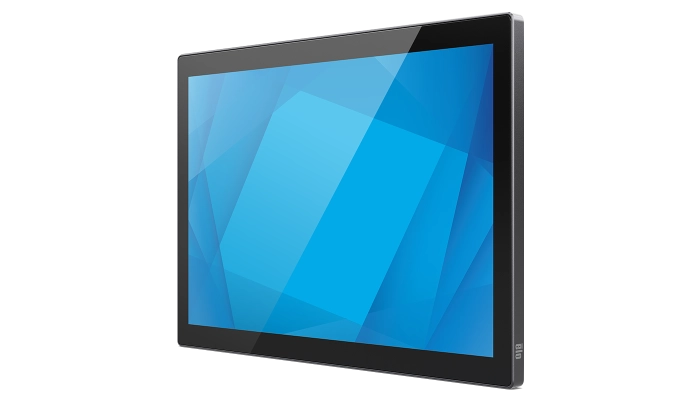

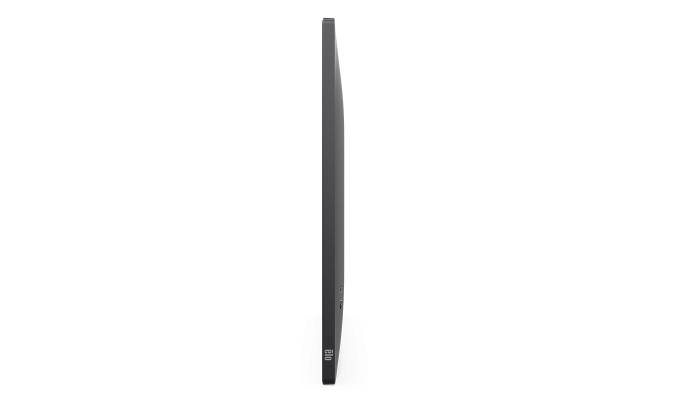

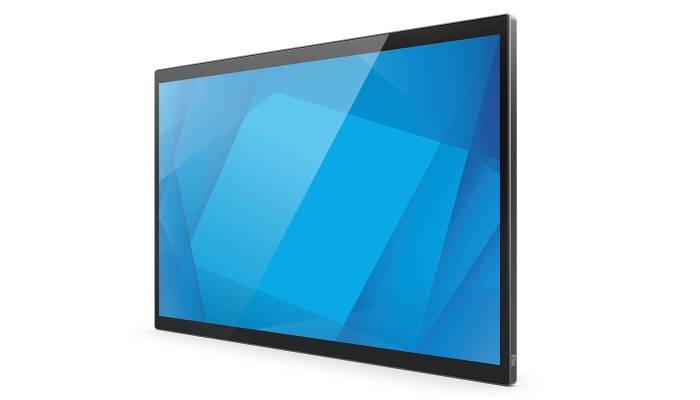

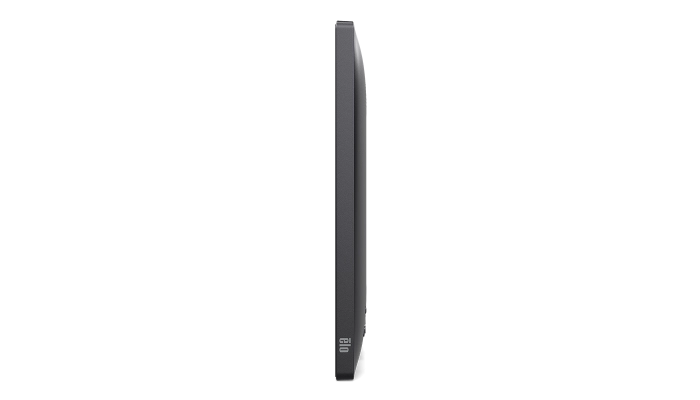

Razor thin design. Brilliant touchscreen.
Built to be among the thinnest commercial-grade touchscreen monitors in their class, the Elo 04LS-Series delivers a sleek, modern design with thin borders, enhanced durability, and state-of-the-art optical bonding for brilliant display clarity. Available in 10″ (1004LS) and 15″ (1504LS) Full HD options, each model offers an energy-efficient TouchPro® PCAP touchscreen supporting up to 10 simultaneous touches.
Designed for flexibility and performance, the 04LS-Series features dual built-in speakers, multiple mounting options, and increased viewing comfort with low blue light technology. Whether for POS, HMI, interactive digital signage, or self-service applications, the 1004LS and 1504LS combine commercial-grade reliability and clean aesthetics—all backed by a three-year warranty.
Streamline setup with USB-C to enable power, video and touch integration all in a single cable.

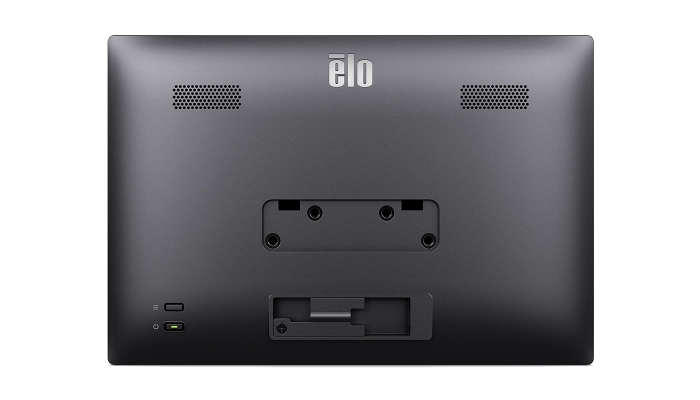

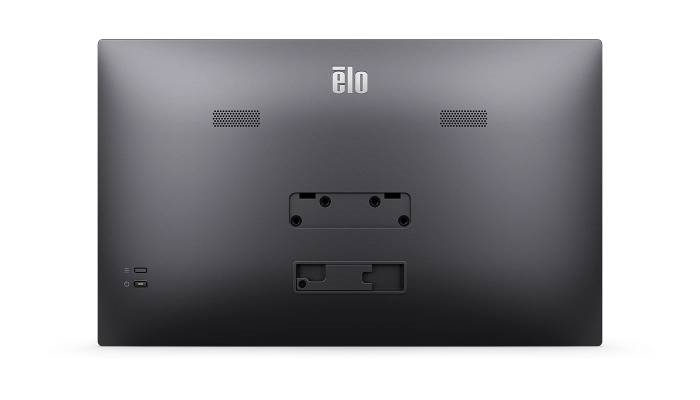

Secure your cables into place.
With a port cover that can be locked into place, cables are less prone to becoming disconnected, minimizing disruptions to the device.
A clean slate for touch experiences.

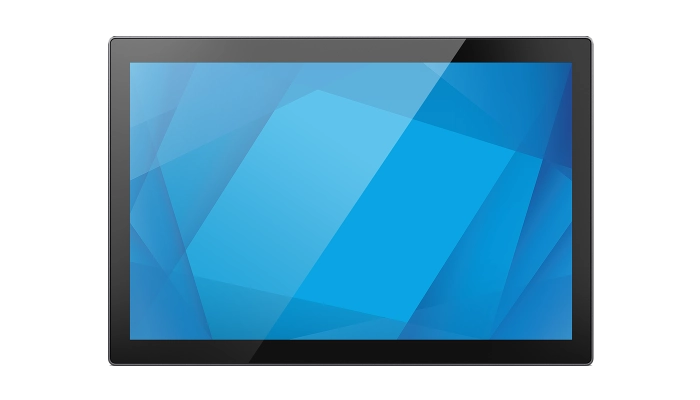

1004LS 10″

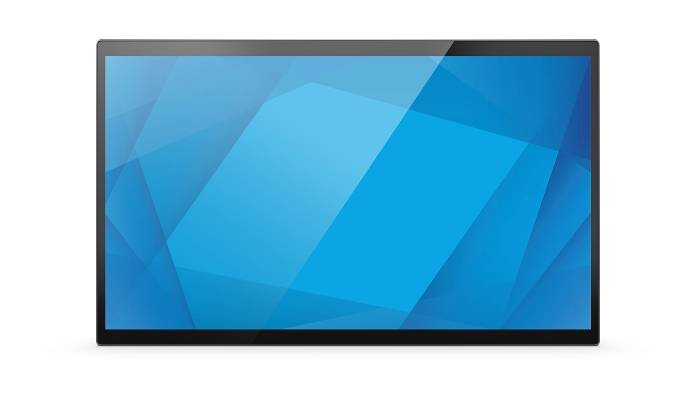

1504LS – 15″

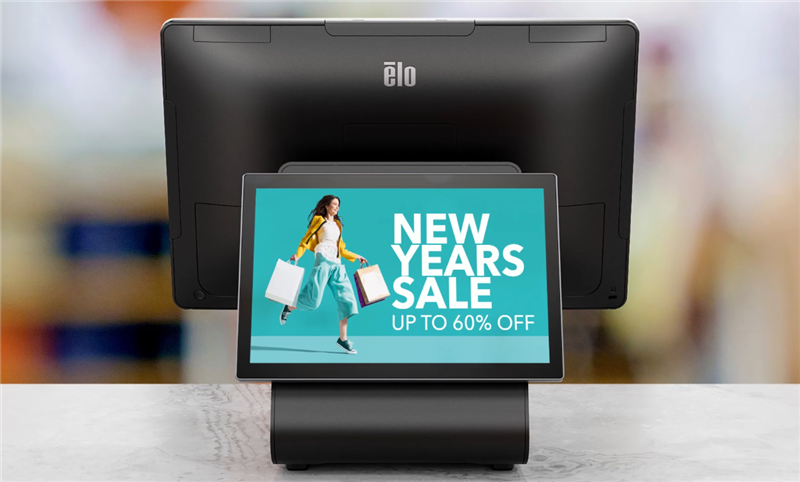

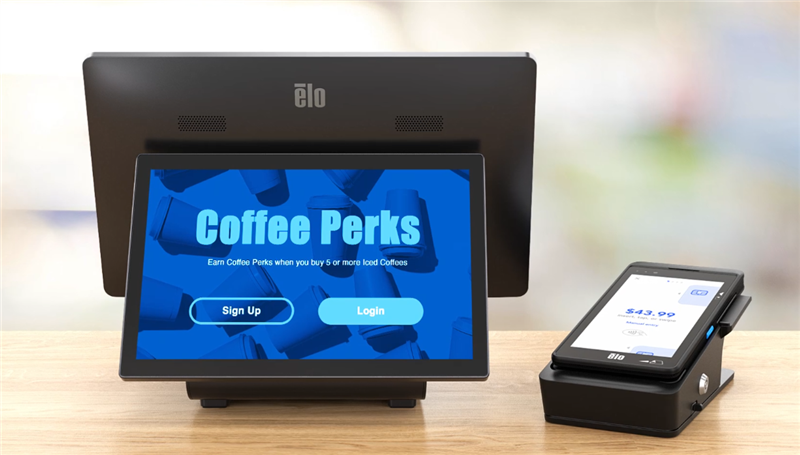

The perfect pairing for your POS terminal.
Whether paired with a PC, mobile device, or AiO with integrated payment, the Elo 04LS-Series slate monitors offer the perfect compact touch display—combining sleek design and performance ideal for point-of-sale environments.
Get peace of mind with EloCareSM.
From advance unit replacement to extended warranties, EloCareSM delivers service and support from the people who know your Elo products best.
| Product Specifications | |
|---|---|
| Color | Dark gray |
| Diagonal Size | 10.1" / 256.54 mm |
| Active Touch Area | 8.54" x 5.34" / 216.96 mm x 135.60 mm |
| LCD Technology | Active matrix TFT LCD |
| Touch Technology | TouchPro PCAP |
| Number of Touches | 10 Touches |
| Aspect Ratio | 16:10 |
| Native Resolution | 1280 x 800 |
| Preset Video Timings | 640x480 60Hz, 800x500 60Hz, 800x600 60Hz, 1024x768 60Hz, 1280x800 60Hz, 1280x720 60Hz, 1280x1024 60Hz, 1366x768 60Hz, 60Hz RB, 1440x900 60Hz, 60Hz RB, 1680x1050 60Hz, 60Hz RB, 1920x1080 60Hz |
| Number of Colors | 16.7M |
| Brightness (typical) | Panel: 400 nits; with TouchPro PCAP: 360 nits |
| Response Time (Tr + Tf) (typical) | 30 msec |
| Viewing Angle (typical) | Horizontal: 85°/85° or 170° total; Vertical: 85°/85° or 170° total |
| Contrast Ratio (typical) | 800:1 |
| On-Screen Display (OSD) | Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.
Controls: Menu, Power Settings: Brightness, Contrast, Color Temperature, Low Blue Light, Volume, Mute, OSD Timeout, OSD Language, Sharpness, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese Lockouts: OSD, Power |
| I/O Ports | USB Type-C connector |
| Video | USB Type-C connector
Input Video Horizontal Sync frequency range: 30 – 60KHz Input Video Vertical Sync (frame rate) frequency range: 60Hz |
| Speakers | 2 x 2W internal speakers |
| Power | Power Delivery compatible via USB Type-C connector
Input range: (5V±5% 3A/9V±5% 3A/15V±5% 1.8A/20V±5% 1.35A) ON (Default - 100% Brightness): 6.6W SLEEP: 0.8 W OFF: 0.15 W |
| Dimensions with Stand (H x W x D) | Without VESA Adapter: 9.45" x 6.42" x 0.59" / 239.94 mm x 163 mm x 15 mm
With VESA Adapter: 9.45" x 6.42" x 0.79" / 239.94 mm x 163 mm x 20 mm |
| Shipping Dimensions | Unpackaged: 1.32 lbs / 0.6 kg
Packaged: 2.45 lbs / 1.11kg |
| Weight | Unpackaged: 1.32 lbs / 0.6 kg
Packaged: 2.45 lbs / 1.11kg |
| Mounting Options | VESA via 4-hole 75mm mounting adapter on rear of unit. |
| Temperature | Operating: 0° C to 40° C / 32°F to 104°F; Storage: -20° C to 60° C / -4°F to 140°F |
| Humidity (non-condensing) | Operating: 20% - 80% / Storage: 10% - 95% (38.7° C max wet bulb temperature) |
| Impact Protection | IK07 |
| Other Features | TUV Rhineland (Low Blue Light)
Power collection function via DDCCI |
| Warranty | 3 years |
| MTBF | 50,000 hours demonstrated |
| Extended Warranty Option | 4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449 3 year warranty coverage + AUR - Elo P/N: E898648 4 year warranty coverage + AUR - Elo P/N: E894921 5 year warranty coverage + AUR - Elo P/N: E895125 |
| Box Content | 1004LS Touch monitor
Quick Install Guide USB Type-C cable 75mm VESA adapter (assembled) |
