Elo TouchSystems 1519L

The pictures shown are general images for product 1519L and may not be applicable to all part numbers

1519L POS Touch Screen Monitor

The Elo TouchSystems 1519L has reached end of life. It has been replaced by the Elo TouchSystems 1502L 15in..

The widescreen 1519L 15 inch LCD touch monitor is an attractive display monitor, ideal for the business environment where presentation is key. The extra screen space lends itself well to spreadsheets, publishing, dual-window applications and digital signage. The 1519L is available in three touch technologies including: zero-bezel Acoustic Pulse Recognition (APR), AccuTouch (Resistive) and IntelliTouch (Capacitive). The zero-bezel design is an asset to navigation, ensuring that even small buttons on the edge of the screen or tucked in a corner are easily selected.

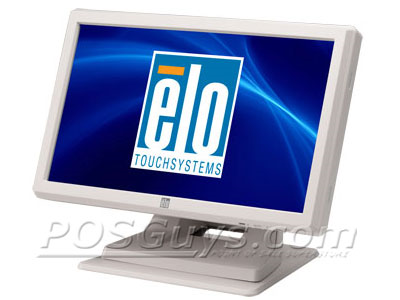

The 1519L also offers a touch monitor for medical or healthcare environments, the 1519LM medical widescreen LCD touch monitor. While the screen on the regular 1519L is resistant to water, dust, and grease, the 1519LM is virtually drip proof, sporting an IPX1 seal and special gasket to protect screen in hostile environments. The medical version is easy to clean and acceptable for use in the operating room where contamination is a concern.

Additional applications well-suited to take advantage of the monitor’s features include point-of-sale (POS), point-of-information (POI), point-of-service, interactive digital signage, loyalty systems, kiosk information systems, light industrial shop-floor automation and home control.


  • Extra content space
  • Zero-bezel for APR technology
  • Resistant to dust, water and grease
  • Built in speakers
  • Headphone jacks
  • VESA mounting options

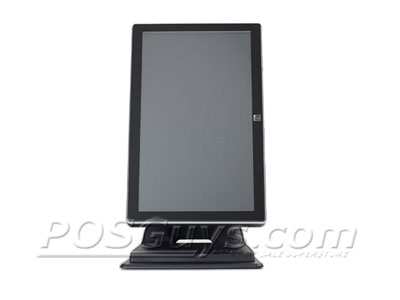

  • Can be used in portrait mode
  • 3 year warranty

    A similar model is the Elo 1919L 19 inch widescreen LCD touch monitor.
  • Product Specifications
    Display Type 15.6 diagonal - Aspect ratio: 16:9
    Color Options Black
    Interface USB or Dual Serial/USB
    Style Desktop - Widescreen
    Optimal Resolution 1366 x 768 at 60 Hz
    Aspect Ratio 16:9
    Contrast Ratio 500:1
    Brightness LCD panel: 250 nits - with AccuTouch: 200 nits - with IntelliTouch: 225 nits - with Acoustic Pulse Recognition: 225 nits
    Colors 16.7 million colors
    Weight 11.3 lb (5.1 kg)
    Dimensions 15.1 (w) x 10.9 (h) x 8.4 (d) in. - 383 x 277 x 213 mm
    Mounting Options Desktop Placement (landscape or portrait orientation), 75 mm VESA mount
    Operating Temperature 0°C to 40°C (32°F to 104°F)
    Power Supply AC/DC power adapter
    Monitor Input Voltage Connector: Coaxial power jack (barrel inner diameter: 6.4 ± 0.3 mm. Pin outer diameter: 2.0 + 0-0.1 mm. Barrel depth: 8.8 ± 0.3 mm) - Voltage Range: 12 V ±5%)
    Speakers Two 2W internal speakers
    Optional Peripherals Magnetic Stripe Reader (MSR)
    Warranty 3 Years
