Elo TouchSystems 1564L 15-inch
The pictures shown are general images for product 1564L 15-inch and may not be applicable to all part numbers

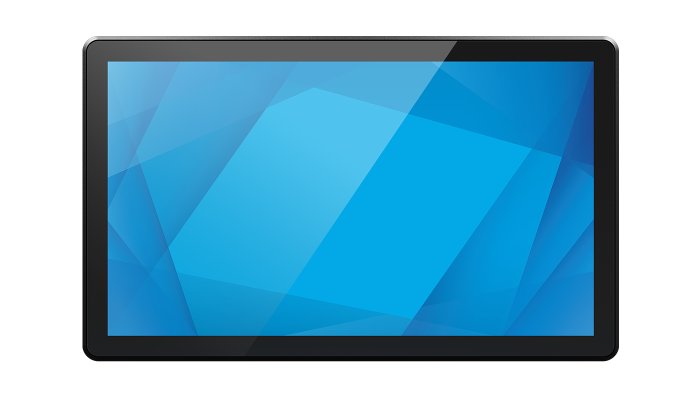

1564L 15-inch POS Touch Screen Monitor
1564L 15-inch Industrial‑Grade Open Frame Touch Display
Elo's 1564L 15-inch HD open-frame delivers a brilliant, industrial-grade touchscreen monitor designed for easy integration into enclosures. With sleek, narrow borders and a modern form factor, the 1564L is well-suited for industrial controls, HMI, warehouse automation, gaming and more.
Brilliant, optically-bonded TouchPro PCAP display
The 15-inch 1564L optically-bonded display offers an enhanced, 10-touch tablet-like experience with the durability, touch performance and premium optics required for industrial and commercial applications.

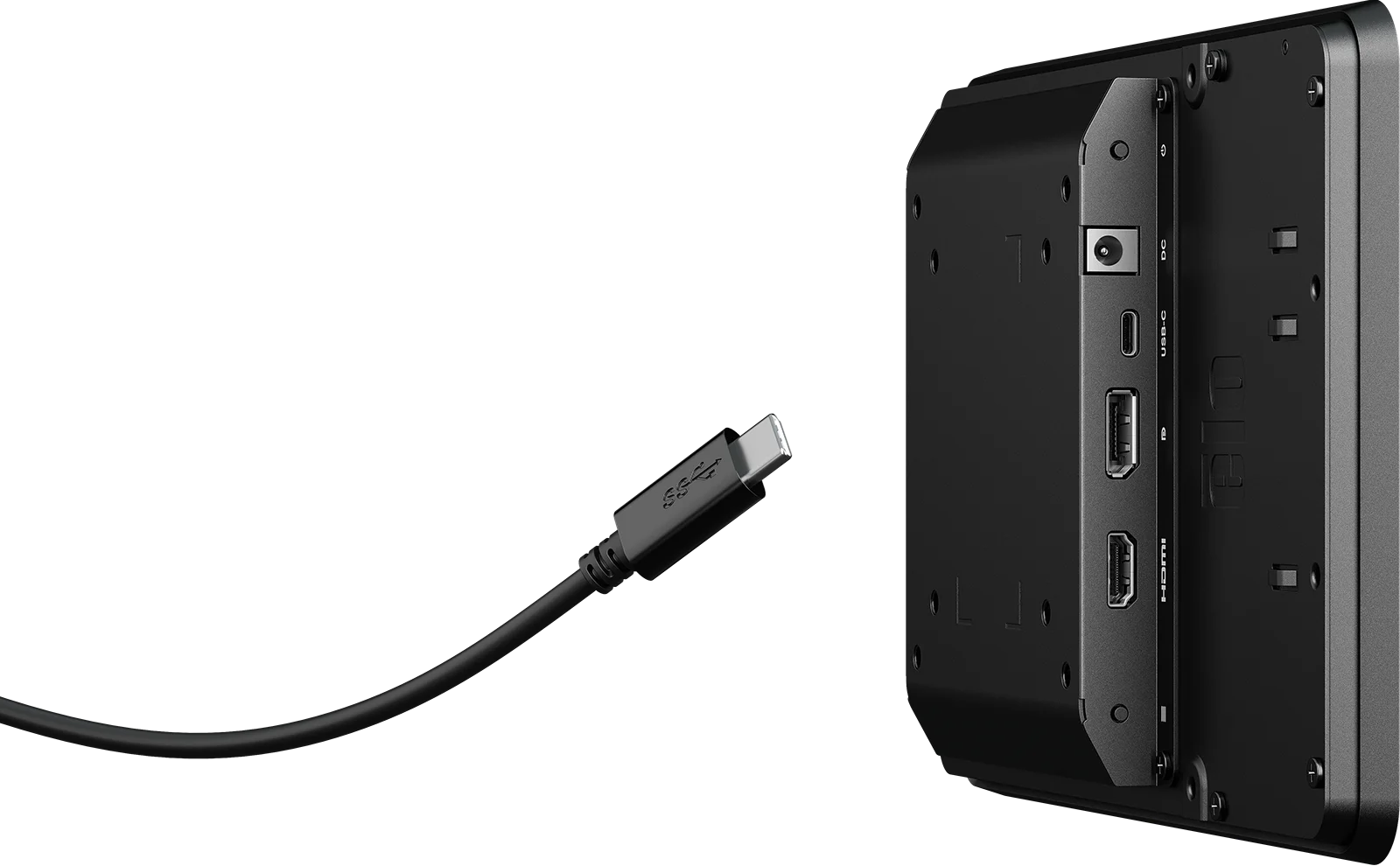

Enable power, video and touch with a single USB‑C cable.
Durable, energy efficient touchscreen.
- UL62368 & IK08 compliance
- Chemically-strengthened glass
- Ready for 24/7 use
- Wide operating voltage range (12V‑24V)
- Energy Star 8.0 certified
Navigate the OSD directly on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.

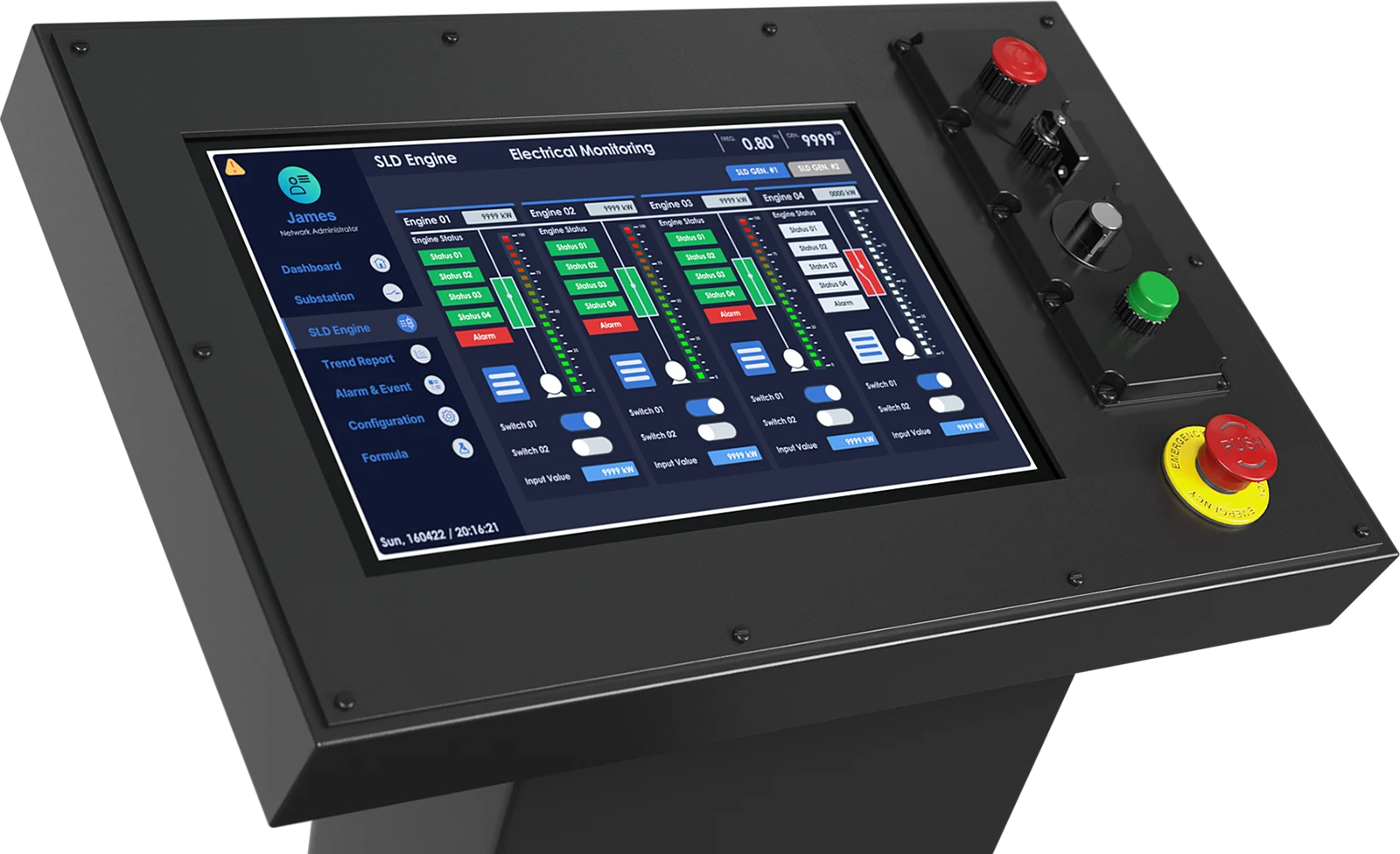

Touch thru glass enabled with PCAP.
For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.

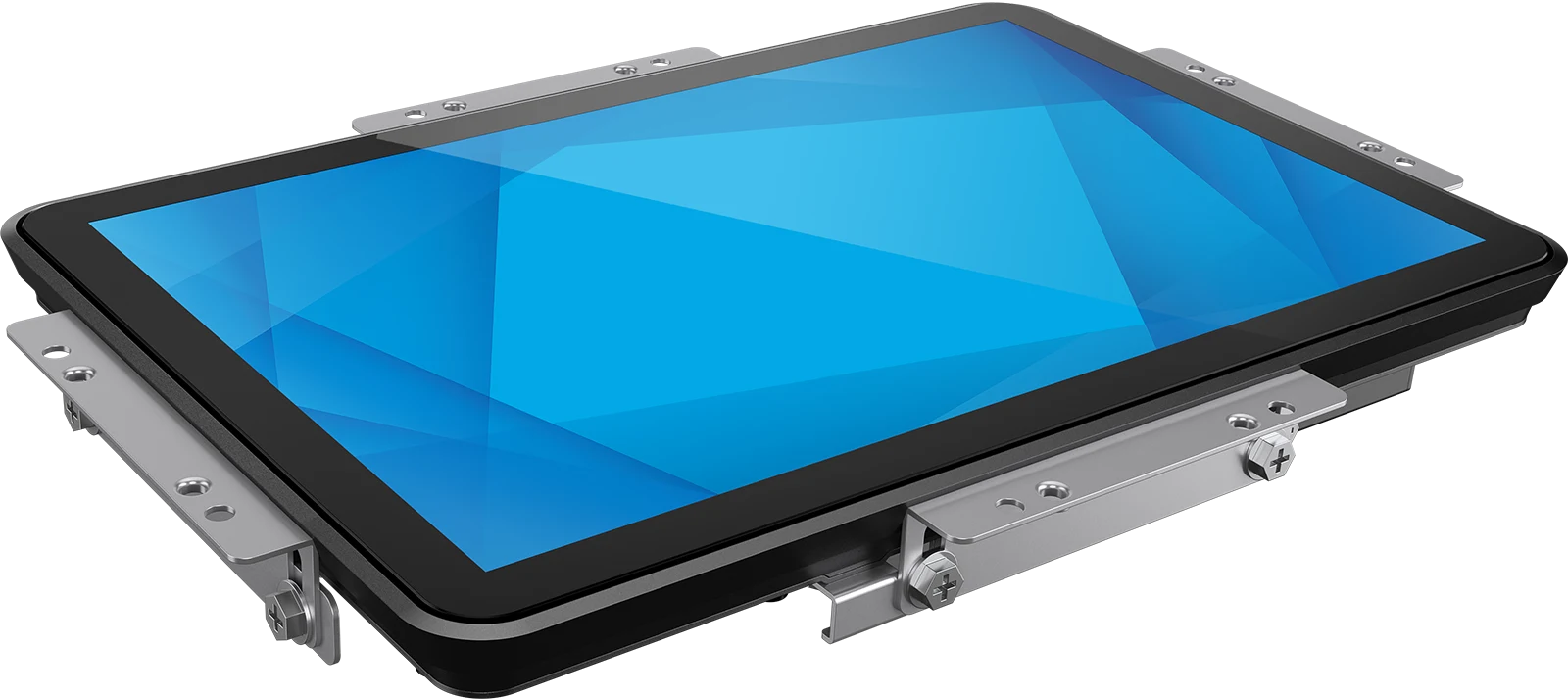

Designed for easy integration.
Elo’s 15-inch touchscreen monitor can be mounted in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design. Whether viewing up close or from a distance, our optically bonded display offers what you need while maintaining optimal clarity for the viewing experience.

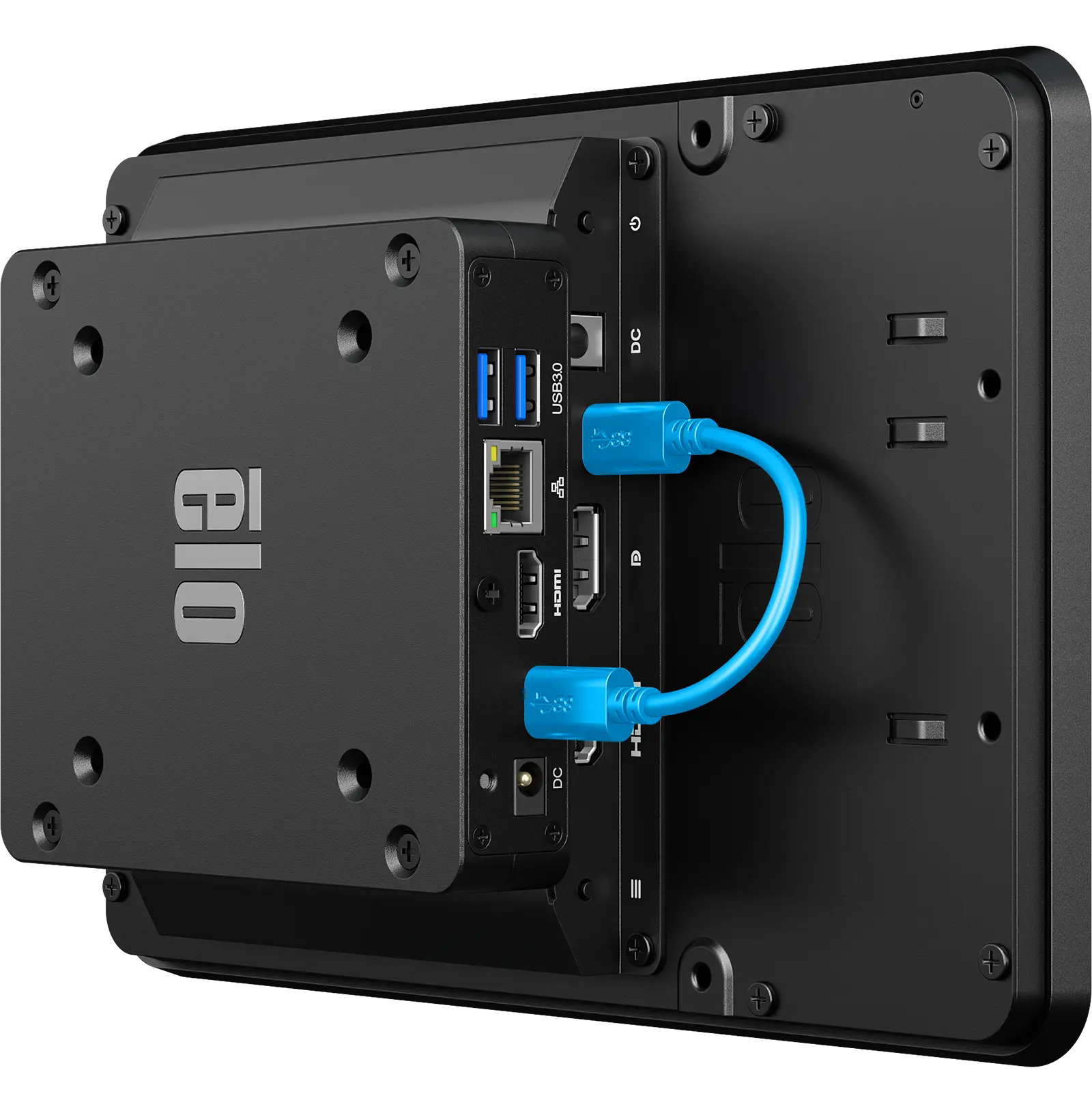

Computing power that scales with a single cable.
With the Elo Backpack you get a powerful, commercial-grade Android compute engine that can easily connect to the display with a single USB-C. Boasting a small footprint in both size and weight, the Elo Backpack can secure inside any kiosk with the built-in VESA mount. Scaling Elo’s commercial Android platform across sizes and form factors has never been easier.
| Product Specifications | |
|---|---|
| LCD Technology | Active matrix TFT LCD |
| Diagonal Size | 15.6" |
| Active Display Area | 13.55" x 7.62" / 344.16 mm x 193.59 mm |
| Aspect Ratio | 16:10 |
| Native Resolution | 1280 x 800 |
| Preset Video Timings | 640x480 60Hz; 720x400 70Hz; 800x500 60Hz; 800x600 56, 60Hz; 1024x768 60Hz; 1280x800 60Hz; 1280x1024 60Hz; 1366x768 60Hz, 60Hz RB; 1440x900 60Hz, 60Hz RB; 1680x1050 60Hz, 60Hz RB; 1920x1080 50Hz, 60Hz |
| Touch Technology | TouchPro® PCAP - up to 10 touches |
| Touch Thru | TouchPro® PCAP supports up to an additional 6mm glass/3mm plastic with up to 2 touches. |
| Number of Colors | 16.7 million |
| Brightness (typical) | LCD Panel: 450 nits; TouchPro PCAP: 405 nits |
| Response Time (Tr + Tf) (typical) | 25 msec |
| Viewing Angle (typical) | Horizontal: 89°/178°; Vertical: 89°178° |
| On-Screen Display (OSD) | On screen OSD with menu and power buttons on the back of the unit. Supported Touch gestures include:
1. Call out the OSD menu. 2. lock/unlock the OSD button function. 3. lock/unlock the power button function. Controls: Menu, Power Settings: Auto Scan, Video Priority, Brightness, Contrast, Aspect Ratio, Sharpness, Color Temperature, Color Enhance, Low Blue Light, OSD Timeout, OSD Language, Recall Defaults, Information, Touch On Sleep Mode, Touch Through Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese, Lockouts: OSD, Power |
| Video | HDMI V1.4 Type A receptacle for HDMI input, DisplayPort V1.2 - Supports later versions of Display Port video input, USB Type-C
*Suggest using Elo USB Type-C to Type-C (Elo P/N: E129019) cable to prevent any compatibility issues Input Video Horizontal Sync frequency range: 30 – 80KHz, Input Video Vertical Sync (frame rate) frequency range: 50 – 75Hz |
| Power | Option1: External DC - Optional power brick (sold separately); Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth); Monitor input power signal specifications: 12V – 24V DC +/- 5%; Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length) Option 2: USB Type-C Input range: 5V±5%@3A / 9V±5%@3A / 15V±5% @1.8A / 20V±5%@1.35A |
| Power Consumption (Typical) | ON (Default - 80% Brightness): 9.36W
ON (Typical - 100% Brightness): 12.95W SLEEP (monitor + adapter): 0.45W OFF (monitor + adapter): 0.25W |
| Mounting Options | 75 mm and 100mm VESA mount, Mounting interface on all 4 sides, Flush mount with included brackets |
| Weight | Unpackaged: 4.91 lbs / 2.23 kg
Packaged: 9.09 lbs / 4.12 kg |
| Dimensions | 14.76" x 8.83" x 1.24" / 375.0 mm x 224.4 mm x 31.6 mm |
| Shipping Dimensions | 17.72" x 11.89" x 5.55" / 450 mm x 302 mm x 141 mm |
| Temperature | Operating: 0° C to 40° C / 32° F to 104° F; Storage: -20° C to 60° C / -4° F to 140° F |
| Humidity (non-condensing) | Operating: 20% - 80%; Storage: 10% - 95% |
| Maximum operating time | 24 hours/day |
| Ingress Protection | IPX1 for front side |
| Energy Star | Energy Star 8.0 |
| Warranty | 3 year standard |
| Extended Warranty | 4 year - Elo P/N: E898247, 5 year - Elo P/N: E898449, 3 year + AUR - Elo P/N: E898648, 4 year + AUR - Elo P/N: E894921,5 year + AUR - Elo P/N: E895125 |
| MTBF | 50,000 hours demonstrated |
| What’s in the Box | 64-Series Monitor, HDMI cable, Touch USB Cable (USB-A to USB-C), Flush Mount Brackets w/Screws, Quick Install Guide , EEI Label |
