Elo TouchSystems 1715L 17in.

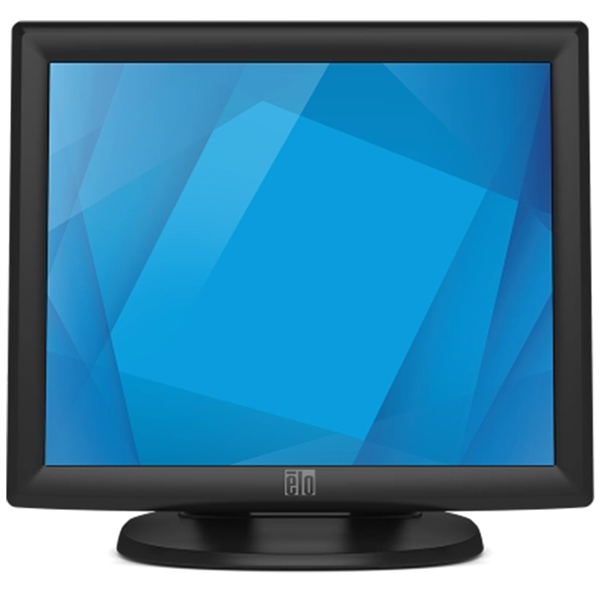

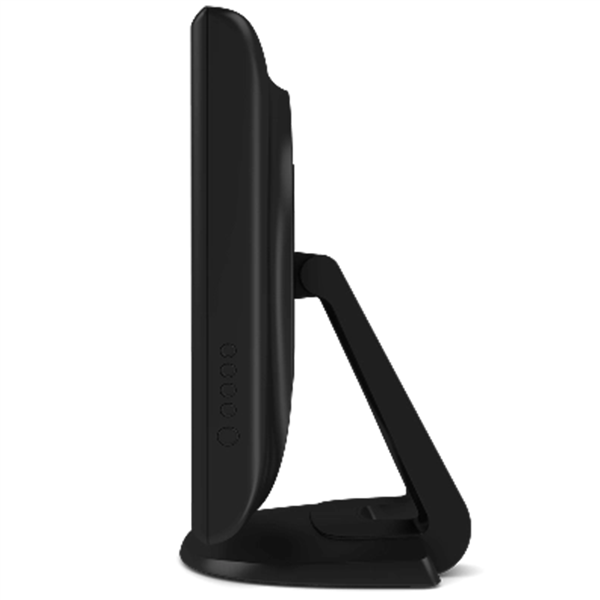

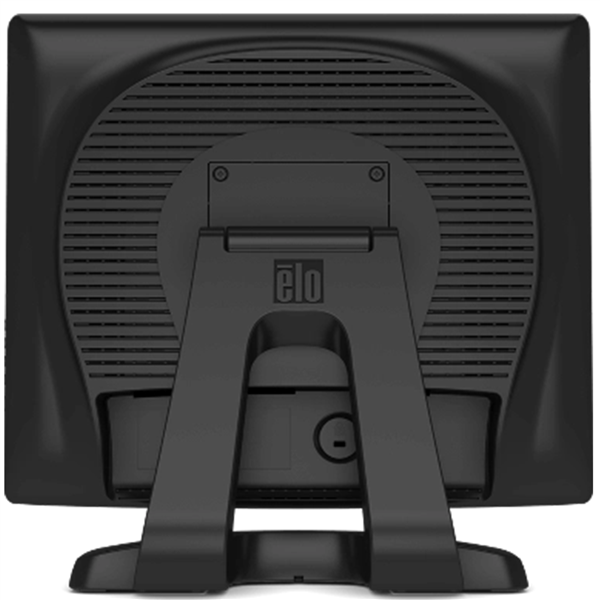

1715L 17in. Product Image

The pictures shown are general images for product 1715L 17in. and may not be applicable to all part numbers

Buy it now
Lifetime Support
15 Day Return Period
1715L 17in. Features
4:3 Ratio
Resistive
Capacitive
Color Options

Dark Grey

1715L 17in. POS Touch Screen Monitor


The 1715L Elo 17 inch touch monitor was created to be a cost-effective solution for customers with system integration needs. It combines the award winning, agency approved touchscreen technology of Elo with intuitive monitor design and affordability. The 17 inch touch monitor features ample touchscreen space and supports multiple touch technologies including AccuTouch (Resistive), Acoustic Pulse Recognition (APR), IntelliTouch (Capacitive) and Projected Capacitive (Multi-Touch). Optimal screen resolution is 1280 x 1024 but allows for many variations (see data sheet for details.)

For added security, the base of the 1715L touch monitor sports mounting holes on the bottom and is removable, allowing for VESA pole mounting. The monitor interfaces to the computer via a dual serial or USB interface and is internally powered but also has a jack to accept power from an optional external power brick.

Elo monitors are renowned for maintaining the highest level of quality and are a mainstay in the monitor industry. This 1715L 17 inch touch monitor is a reliable asset to any point-of-sale (POS), point-of-service, loyalty system, kiosk information system (KIS), interactive advertising display or guest check in application.

Features

  • Entry-level monitor with Elo quality
  • "Designed for touch" features such as a stable tilt base
  • Long-lasting product cycle
  • Sealed touchscreen
  • Dual serial/USB interface
  • Removable base and VESA mounting option
  • Mounting holes on base bottom for tabletop security
  • Controls on the side rather than the front, plus lockout function for public use
  • Worldwide agency approvals

    Similar models include the 1515L 15 inch touch monitor and the 1215L 12 inch touch monitor.
  • Product Specifications
    Display Type 17 Inch TFT Active Matrix Display
    Color Options Dark Grey
    Interface USB or Dual Serial/USB
    Style Desktop - Stable Tilt Base
    Optimal Resolution 1280 x 1024 at 60 or 75 Hz
    Aspect Ratio 5:4
    Contrast Ratio 800:1
    Brightness LCD panel: 280 nits - with AccuTouch: 230 nits - with Acoustic Pulse Recognition: 258 nits - with IntelliTouch: 258 nits (typical)
    Colors 16.2 million colors with dithering
    Weight 15.2 lb (6.9 kg)
    Dimensions 15.4 (w) x 8 (h) x 14.4 (d) in.
    Mounting Options Removable Base, 75 mm VESA Mount
    Operating Temperature 0°C to 40°C
    Power Supply Internal, with jack to accept power from optional external brick
    Monitor Input Voltage 100-240 VAC, 50/60 Hz
    Optional Input Voltage +12VDC ±5%
    Power Dissipation 50 W max
    Optional Peripherals 3 track magnetic strip reader (MSR)
    Warranty 3 Years

    Elo TouchSystems 1715L 17in. Reviews

    POSGuys Rating:

    This monitor was designed with touch in mind from the ground up, which means it’s got a great stable base which can be bolted down into the counter, controls on the side rather then the front and a smoothly tilting screen which can tilt up to a full 90 degrees! Additionally all of the screens for this model are coated with an anti-glare surface treatment, which is a useful feature for working near store windows or bright lighting.

    Customer Reviews

    Recommended Models

    1715L 17" AccuTouch LCD Touch Monitor, Dark Gray. Anti-Glare Surface Treatment. VGA(DB-15) for Video. Dual Serial & USB for Touch. 1280 x 1024.
    Touch Type:Resistive (AccuTouch)
    Elo 1715L 17" IntelliTouch LCD Touch Monitor, Dark Gray. Anti-Glare Surface Treatment. VGA(DB-15) for Video. Dual Serial & USB for Touch. 1280 x 1024.
    Touch Type:SAW (IntelliTouch)
