Elo TouchSystems 2201L

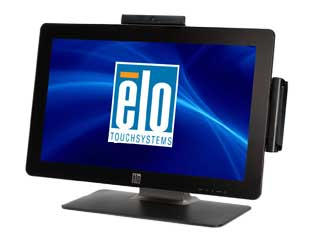

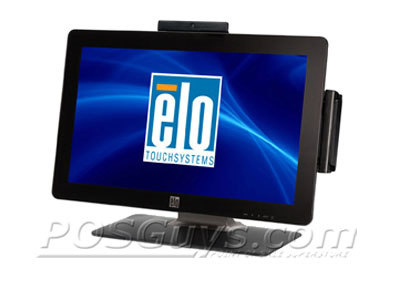

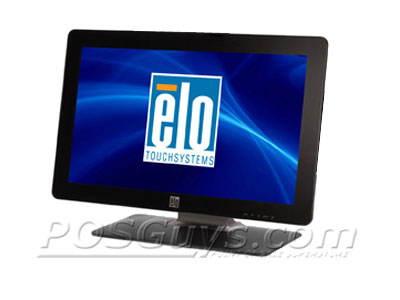

The pictures shown are general images for product 2201L and may not be applicable to all part numbers
Buy it now
Lifetime Support
15 Day Return Period
2201L Features
Splash Proof
16:9 Ratio
Peripherals
Capacitive
Color Options
Black
2201L POS Touch Screen Monitor
The Elo TouchSystems 2201L is nearing end of life. It will soon be replaced by the Elo TouchSystems 02 Series (22-27 in.).
*While stock is available on a first-come-first-served basis, the 2201L has reached End of Life. Please contact our Sales Team for more information.
The 2201L touch monitor features flexible, space-saving design, high definition wide-aspect ratio 22 inch LCD touchscreen and Windows 7 multi-touch interactivity. This touch monitor is suited to meet durability and aesthetic needs for back office, front of store, kiosk and out of store applications, Elo's new 2201L offers the ultimate versatility for a variety of retail, business or hospitality interactive systems.
The 2201L touch monitor features flexible, space-saving design, high definition wide-aspect ratio 22 inch LCD touchscreen and Windows 7 multi-touch interactivity. This touch monitor is suited to meet durability and aesthetic needs for back office, front of store, kiosk and out of store applications, Elo's new 2201L offers the ultimate versatility for a variety of retail, business or hospitality interactive systems.
-
Features
- Multi-touch capability
- Wide 22 inch display screen
- 3 year warranty
- Standard USB interface
| Product Specifications | |
|---|---|
| Display Type | Active matrix TFT LCD, Multi-Touch |
| Color Options | Black |
| Screen | 22" Diagonal, 18.8" x 10.6" (477mm x 268mm) |
| Aspect Ratio | 16:9 |
| Optimal Resolution | 1920x1080 |
| Brightness | LCD Panel: 250 nits; with IntelliTouch Plus: 225 nits |
| Colors | 16.7 million |
| Contrast Ratio | 1000:1 |
| Dimensions | 21.7" x 7.6" x 15.4" (551mm x 193mm x 392mm) max |
| Weight | Unpackaged: 16.5lbs (7.5kg) Packaged: 27.6lbs (12.5kg) |
| Mounting Options | VESA 4-hole 100mm mounting interface on rear of unit 4-hole 200x100mm threaded mounting on bottom of stand |
| Operating Temperature | 32°F to 104°F |
| Power Drawn | 22W-29W |
| Monitor Input Voltage | 12VDC ± 5% |
| Optional Peripherals | Web Camera MSR |
| Speakers | Two 2W speakers |
| Warranty | 3 Year |
| MTBF | 50,000 hours demonstrated |
