Elo TouchSystems 2400LM

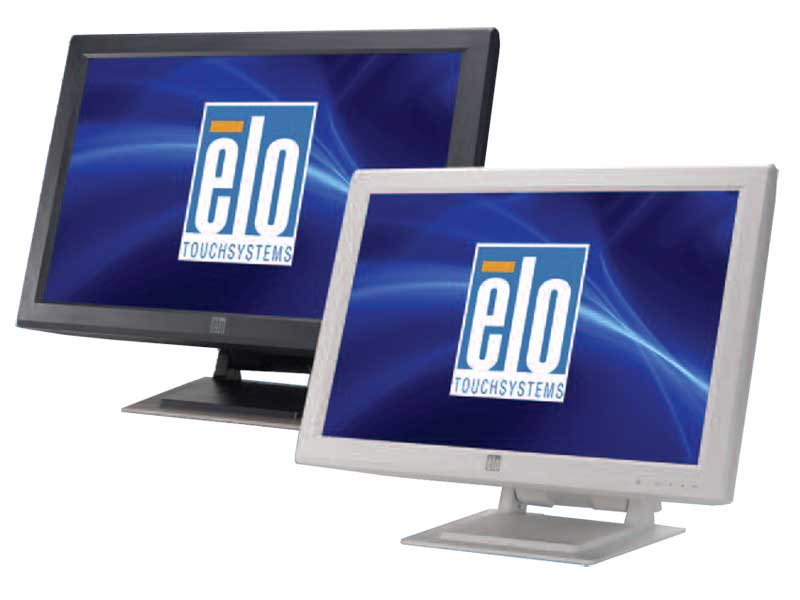

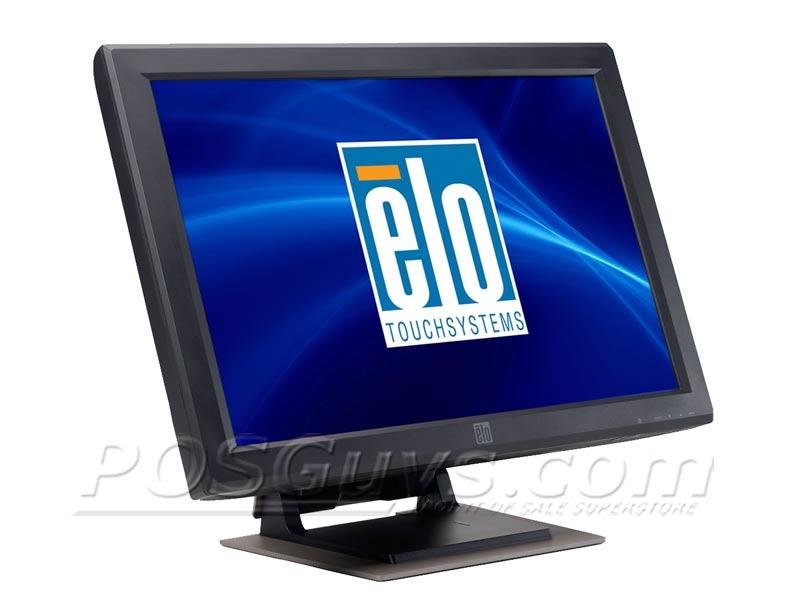

The pictures shown are general images for product 2400LM and may not be applicable to all part numbers

2400LM POS Touch Screen Monitor

The Elo TouchSystems 2400LM has reached end of life.

The Elo 2400LM touchscreen monitor offers a large, easy-to-read display ideal for nursing stations, patient self check-in kiosks, or other health care-specific applications. The 24-inch display runs at a native resolution of 1920 x 1200, able to display a tremendous amount of information. Available with your choice of IntelliTouch capacitive or AccuTouch resistive touchscreen technology, the 2400LM has a model suited to your needs.

With a variety of mounting options the 2400LM touch monitor fits into many different working environments. The desktop stand allows for both portrait and landscape orientation and the VESA mounting options enable wall or cart mounting for extra convenience. Two 60W speakers are built into the touch monitor, freeing up even more space and further minimizing workspace clutter.

The 2400LM medical touch monitor is designed to live up to the needs of medical professionals and meets the primary safety standards recognized by public health authorities in most countries. For additional security and peace of mind Elo maintains a 3 year manufacturer warranty, ensuring that the 2400LM provides years of reliable performance.

  • 24-Inch widescreen
  • 1920 x 1200 native resolution
  • Removable base with VESA mounting options
  • Built in speakers
  • EN 60950-1 and EN 60601-1 for safety
  • EN 55011, EN 55024, EN 6100-3-3 and EN 60601-1-2 for EMC
Product Specifications
Display Type 24" diagonal
Aspect Ratio: 16:10, active matrix TFT LCD
Color Options Dark Grey, White
Interface Dual Serial/USB
Style Desktop - Widescreen
Optimal Resolution 1920 x 1200
Bezel Standard
Brightness LCD Panel: 300 nits
IntelliTouch: 270 nits
AccuTouch: 240 nits
Colors 16.7 million
Contrast Ratio 1000:1
Dimensions Width: 23.3" (592mm)
Height: 17.7" (450mm)
Depth: 9.1" (233mm)
Weight 27.8lb (12.6kg)
Mounting Options With provided stand (landscape)
100mm VESA rear-mount
Operating Temperature Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 140°F (-20°C to 60°C)
Power Supply AC/DC Power Adapter
Monitor Input Voltage AC/DC Adapter: 100-240 VAC 50-60Hz
Power Drawn 61W (typical)
Speakers Two Internal 2W Speakers
Warranty 3 Years

Elo TouchSystems 2400LM Reviews

POSGuys Rating:

Customer Reviews

2400LM Datasheet
