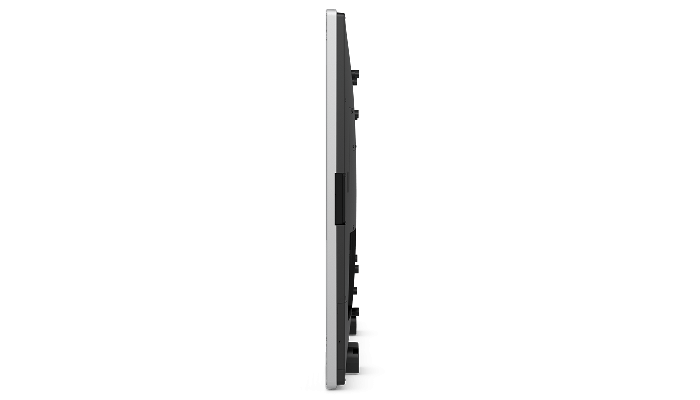

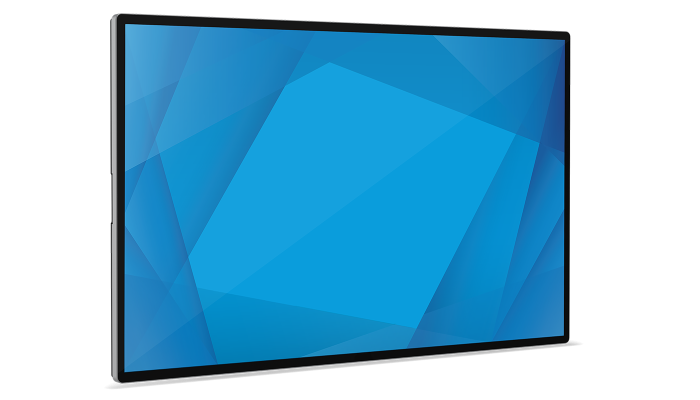

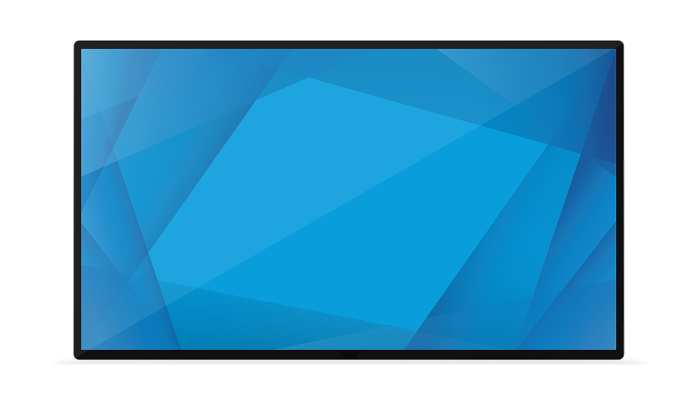

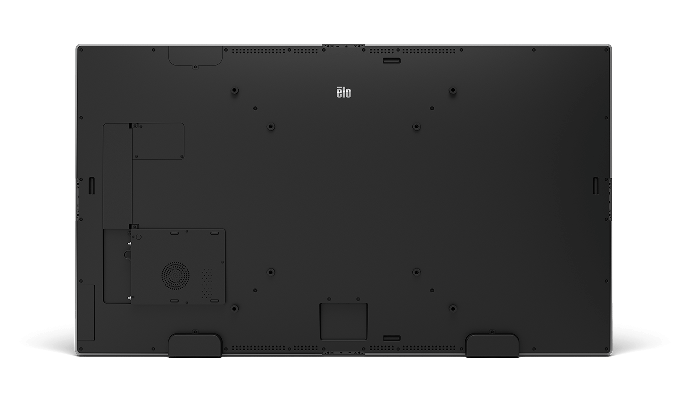

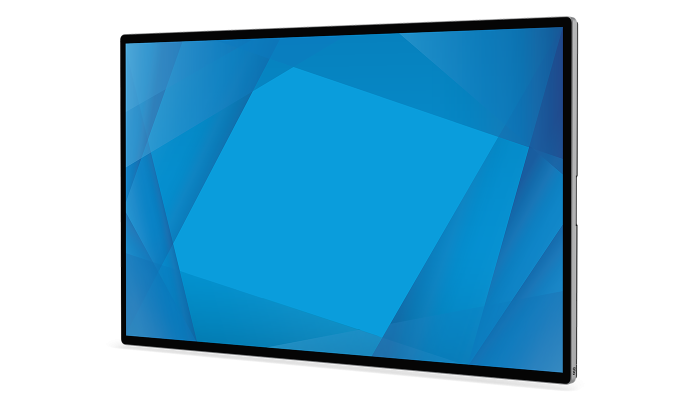

The pictures shown are general images for product 54L Series and may not be applicable to all part numbers
_800_600.png "Alternate image for 54L Series"){kind=small}
_800_600.png "Alternate image for 54L Series"){kind=small}
_800_600.png "Alternate image for 54L Series"){kind=small}
_800_600.png "Alternate image for 54L Series"){kind=small}
_800_600.png "Alternate image for 54L Series"){kind=small}
54L Series POS Touch Screen Monitor
Where is the Manual Trigger Button on 2D Barcode Scanners?
Elo 54L Series Touchscreen Signage Displays
The Elo 54L Series brings large-format interactive signage to life with a unified commercial platform available in 50-inch (5054L), 55-inch (5554L) and 65-inch (6554L) models.
Built for continuous operation in retail, self-service, wayfinding and healthcare environments, the 54L family combines 4K clarity, responsive touch and enterprise-ready management features.
4K UHD Visuals with Flexible Touch Technology.
Every 54L model delivers 3840 x 2160 @ 60Hz with a bright commercial panel and wide viewing angles for public-facing deployments.
- TouchPro PCAP: Up to 40 simultaneous touches with palm rejection.
- Infrared (IR): Up to 20 simultaneous touches.
- Brightness: 500 nits panel brightness (typical), with 430-450 nits typical with touch.
Engineered for 24/7 Commercial Environments.
- 24/7 operating duty cycle
- IK07 impact resistance
- UL 62368-1 safety certifications
- Ambient light sensor + auto wake features
- 50,000-hour demonstrated MTBF
Comprehensive Connectivity with Built-In IoT Control.
Deploy and manage displays at scale with integrated device management support for EloView, Crestron Connected V2 and MDM workflows via APIs.
- Inputs: 2 x HDMI 2.0, DisplayPort 1.4, USB-C (touch + video)
- Control/Network: RJ45 IoT LAN, RS232/MDC, optional OSD remote
- Compute integration: Elo Backpack, Intel NUC and BrightSign mounting options
Expand with Elo Edge Connect Accessories.
Add peripherals directly to the display edge with support for scanners, cameras, payment and RFID/NFC modules to tailor each deployment to the workflow.
EMV Payments
Barcode Scanners
RFID / NFC
Cameras & More
Touch Through Support for Enclosed Installations.
Select 54L configurations support touch through for kiosk and glass overlay deployments, including operation with gloves.
- Up to 6 mm glass and up to 3 mm plastic overlays
- Glove support up to 1.4 mm thickness
- Ideal for protected retail, healthcare and high-traffic public installations
Choose the Right Size for Your Space.
5054L (50-inch)
- Active area: 43.14" x 24.27"
- VESA mount: 400 x 400 mm (M6)
- Power (typical): 99W ON
5554L (55-inch)
- Active area: 47.62" x 26.79"
- VESA mount: 400 x 400 (M6) and 600 x 600 (M8)
- Power (typical): 110-112W ON
6554L (65-inch)
- Active area: 56.2" x 31.6"
- VESA mount: 600 x 600 mm (M8)
- Power (typical): 160W ON
5054L / 50-inch Part Numbers
- E103538 - TouchPro PCAP, clear anti-friction
- E103738 - TouchPro PCAP, anti-glare
- E103937 - Infrared (IR), clear anti-friction
5554L / 55-inch Part Numbers
- E104131 - TouchPro PCAP, clear anti-friction
- E104315 - TouchPro PCAP, anti-glare
- E104520 - Infrared (IR), anti-glare
6554L / 65-inch Part Numbers
- E104723 - TouchPro PCAP, clear anti-friction
- E104912 - TouchPro PCAP, anti-glare
- E105106 - Infrared (IR), anti-glare
Backed by EloCareSM and a 3-Year Standard Warranty.
EloCare service and support options help keep deployments running smoothly with coverage from the teams that know your Elo products best.
