6553L POS Touch Screen Monitor

Elo 6553L 65-inch 4K Interactive Display

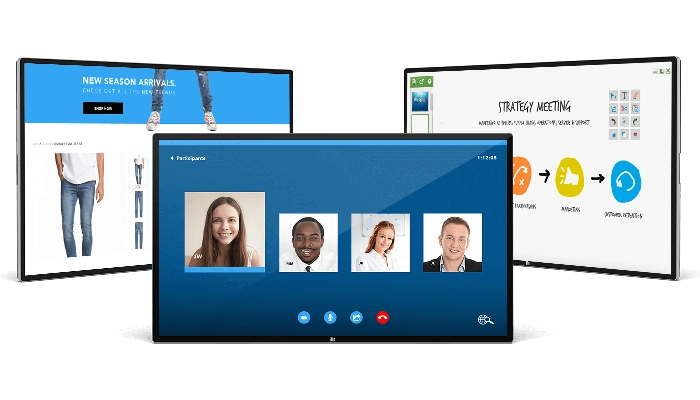

Elo's 6553L is a large-format 4K touchscreen designed for endless aisle, brand experiences, conferencing, whiteboarding and collaborative spaces that require continuous commercial operation.

Choose TouchPro® PCAP for up to 40 touches or Infrared (IR) for up to 20 touches on the same 65-inch platform.

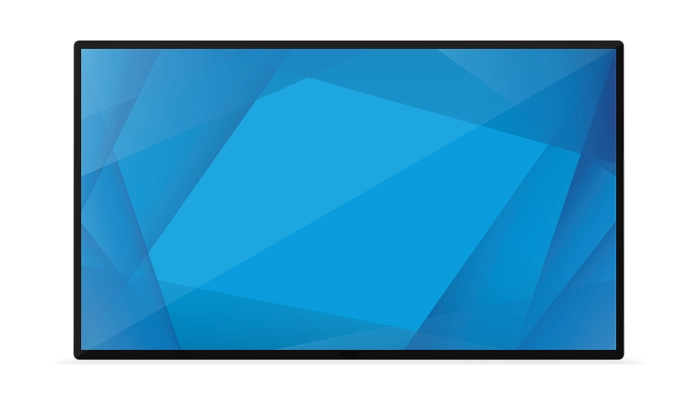

Elo 6553L 65-inch interactive 4K touchscreen

Deployment-Ready for Interactive Spaces.

Elo Edge Connect: supports optional peripherals including EMV, NFC/RFID, MSR and barcode readers.
Huddle room capable: can be paired with Elo Huddle Kit workflows.
Optional computer modules: transform the display into an integrated all-in-one solution.
Commercial lifecycle focus: built for around-the-clock deployment profiles.

Elo display with optional edge accessories and compute expansion

4K UHD Panel Performance with Multi-Touch Options.

Resolution: 3840 x 2160 @ 60Hz native, 16:9
Active area: 56.2" x 31.6" (64.53" diagonal)
Brightness: 500 nits panel, 450 nits with IR, 430 nits with TouchPro PCAP
Response time: 8 msec typical
Viewing / contrast: 178° total viewing angle, 1100:1 typical contrast ratio
Color: 10-bit (1.07 billion colors)

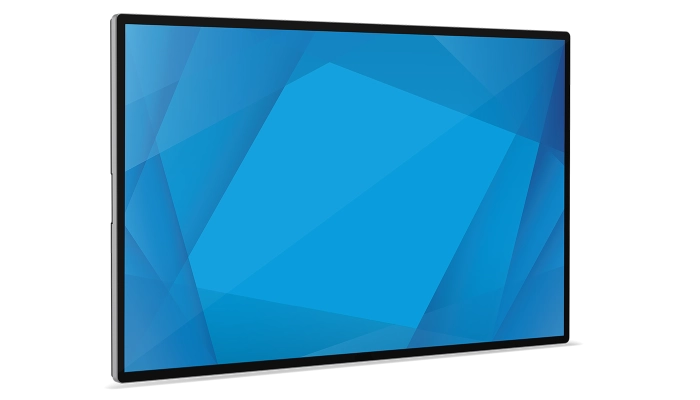

Elo large-format interactive display with 4K touch performance

Comprehensive I/O for Video, Touch and Control.

Rear I/O: 2 x HDMI, USB 3.0 Type-B, RJ45 OSD remote, DisplayPort 1.4, 3.5 mm TRS RS232, 3.5 mm line-out
Side I/O: HDMI, USB 3.0 Type-A, power button, source select, OSD button
Video inputs: 3 x HDCP-capable HDMI plus DisplayPort 1.4
Sync ranges: 121.8-140 KHz horizontal, 47-63 Hz vertical
OSD menus: source, color, audio, power, time, settings and conference controls

Power and Audio Profile.

Input power: 100-240VAC, 50/60Hz (IEC 60320-C13)
IR power: ON 152W, SLEEP 2W, OFF 0.7W
TouchPro power: ON 157W, SLEEP 2W, OFF 0.7W
Speakers: 2 x 10W integrated stereo
Audio out: 3.5 mm TRS headphone output

Built for 24/7 Commercial Duty Cycles.

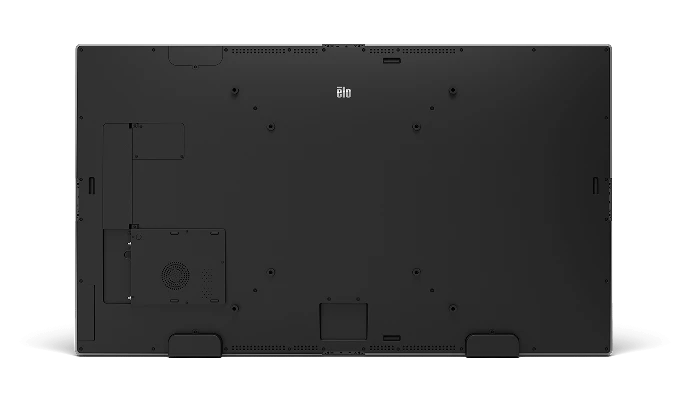

Mechanical + Mounting

TouchPro dimensions: 58.69" x 34.08" x 3.17"
IR dimensions: 58.69" x 34.07" x 3.55"
VESA: MIS-F 400 x 400 mm (M6)
VESA: MIS-F 600 x 600 mm (M8)
Shipping carton: 68.9" x 45.28" x 11.02"

Environmental + Compliance

Max operating time: 24 hours/day
Operating temp: 0°C to 40°C (tilt up to 15°)
Tabletop operating temp: 0°C to 35°C
Operating humidity: 20% to 80% non-condensing
Approvals: UL, FCC, CE, RCM, VCCI, CB, IK07
Energy Star: 7.1
Sensors/features: ambient light sensor, auto wake

Elo 6553L installed in commercial mounting configurations

Warranty and Coverage Options.

Standard warranty: 3-year with AUR included
4-year + AUR: Elo P/N E740135
5-year + AUR: Elo P/N E740330
3-year + OSE (Continental US): Elo P/N E740527

Product Specifications
Model	6553L
Color	Black
Active Display Area	56.2" x 31.6" / 1428.48 mm x 803.52 mm
Dimensions	TouchPro: 58.69" x 34.08" x 3.17" / 1490.6 mm x 865.5 mm x 80.4 mm; IR: 58.69" x 34.07" x 3.55" / 1490.6 mm x 865.5 mm x 90.2 mm
Display Technology	3840 x 2160 @ 60Hz native; Active matrix TFT LCD with LED backlight; other resolutions supported
Diagonal Size	64.53" / 1639.06 mm
Aspect Ratio	16:9
Number of Colors	10 bit, 1.07 billion
Brightness	LCD Panel 500 nits; with IR 450 nits; with TouchPro PCAP 430 nits
Response Time	8 msec
Viewing Angle	Horizontal ±89° / 178° total; Vertical ±89° / 178° total
Contrast Ratio	1100:1
On-Screen Display	Let’s Get Started, Video Source Select, Color Settings, Audio Settings, Power, Time, OSD Settings, Information, Conference
Available I/O Ports	Back: HDMI x2, USB 3.0 Type B, RJ45 OSD Remote, DisplayPort 1.4, 3.5mm TRS jack for Serial RS232, 3.5mm Audio Headphones Line-out; Side: HDMI x1, USB 3.0 Type A, Power Button, Video Source Selection, On Screen Display Button
Video Inputs	3x HDCP-capable HDMI on Type A connector, DisplayPort 1.4 connector; Input Video Horizontal Sync frequency range: 121.8 - 140 KHz; Input Video Vertical Sync frequency range: 47 - 63 Hz
Power	Power Input connector: IEC 60320-C13; Input power signal specifications: 100-240VAC 50/60Hz; Power Consumption: IR - ON 152W, SLEEP 2W, OFF 0.7W; TouchPro - ON 157W, SLEEP 2W, OFF 0.7W
Audio	Internal Speakers: 2 x 10 W stereo speakers; Headphone output connector: 3.5 mm TRS jack
Weight	Unpackaged TouchPro with ECM: 115.54 lbs / 52.41 kg; TouchPro without ECM: 111.14 lbs / 50.41 kg; IR with ECM: 118.54 lbs / 53.77 kg; IR without ECM: 114.13 lbs / 51.77 kg; Packaged TouchPro without ECM: 131.04 lbs / 59.44 kg; IR without ECM: 136.24 lbs / 61.8 kg
Shipping Dimensions	68.9" x 45.28" x 11.02" / 1750 mm x 1150 mm x 280 mm
Maximum Operating Time	24 hours/day
Temperature	Portrait/Landscape/Tilt ≤15° Mode: Operating 0°C to 40°C / 32°F to 104°F; Storage -20°C to 60°C / -4°F to 140°F; Tabletop Mode: Operating 0°C to 35°C / 32°F to 95°F; Storage -20°C to 60°C / -4°F to 140°F
Humidity	Operating 20%-80%; Storage 10%-95% non-condensing, 38.7°C max wet bulb temperature
Regulatory Approvals and Declarations	UL, FCC; cUL, IC; CB; CE; RCM; VCCI; CCC for TouchPro only, IK07 and UL60950 for ball drop test
Energy Star	7.1
Mounting Options	VESA MOUNT PER MIS-F, 400 x 400mm, M6; VESA MOUNT PER MIS-F, 600 x 600mm, M8
Other Features	Ambient Light Sensor - changes panel color to match ambient light, Auto Wake
Warranty	3-year with AUR included
Extended Warranty	4 year + AUR - Elo P/N: E740135; 5 year + AUR - Elo P/N: E740330; 3 year + OSE Continental US Only - Elo P/N: E740527; 4 year + OSE Continental US Only - Elo P/N: E740728; 5 year + OSE Continental US Only - Elo P/N: E740918
MTBF	50,000 hours demonstrated
What’s in the Box	QIG, HDMI 2.0 cable, USB 3.0 cable Type A to Type B, power cable, IEC 60320-C13 to NA plug, EU/KR plug, UK plug, Serial 3.5mm male to Serial DB9 female cable, Energy label according to EU Regulation 1062/2010
