MicroTouch Desktop Series
The pictures shown are general images for product Desktop Series and may not be applicable to all part numbers
Desktop Series POS Touch Screen Monitor
This product replaces the older MicroTouch Desktop Series.
10.1" Touch Monitor
The ultra-modern, zero bezel design and compact footprint of the DT-100P-A1 make it an ideal choice for second displays, small point-of-service stations, and interactive in-aisle or end-cap signage.
With USB-C ALT DP mode, power delivery input, and 10-point projected capacitive touch, it streamlines cabling while delivering a smooth, consumer-like experience in a commercial-ready package.
Featured Specifications
- Size: 10.1" TFT LCD
- Maximum Resolution: 1280 x 800
- Contrast Ratio: 1000:1
- Aspect Ratio: 16:10
- Brightness: 350 nits (No Touch), 290 nits (P-CAP)
- View Angle: H: 160°, V: 160°
- Video Port: 1 x VGA, 1 x DP, 1 x HDMI
- Warranty: 3 year
15.6" Touch Monitor

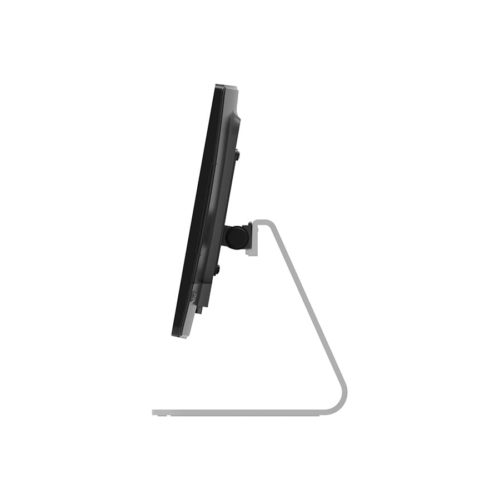

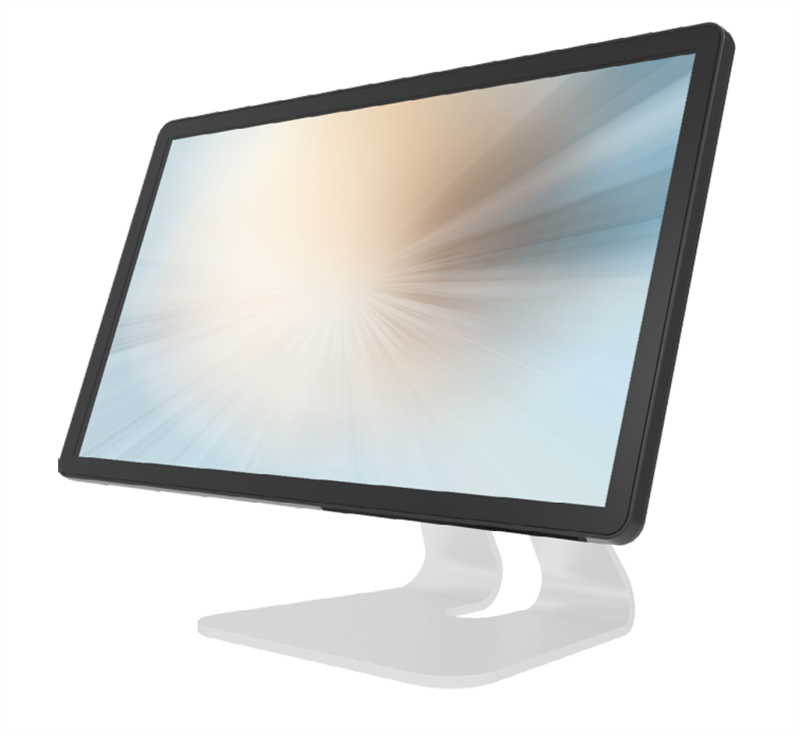

The ultra-modern, unique zero bezel and modular design of the DT-156P-B2 makes it a one-stop-shop solution with optional peripherals for added functionality. This 10-point touch, projected capacitive, Full HD 1920 x 1080 solution is great for retail point-of-sale or point-of-service with add-on features like 3-track MSR and a 2MP camera – with side and top mounting options.
The seamless bezel, advanced PCAP technology, and rounded aesthetic bridge the gap between daily consumer devices and commercial devices, creating a memorable end-user experience.
Featured Specifications
- Size: 15.6" TFT LCD
- Maximum Resolution: 1920 x 1080
- Contrast Ratio: 1000:1
- Aspect Ratio: 16:9
- Brightness: 450 nits (No Touch), 405 nits (P-CAP)
- View Angle: H: 178°, V: 178°
- Video Port: 1 x VGA, 1 x DP, 1 x HDMI
- Warranty: 3 year
21.5" Touch Monitor

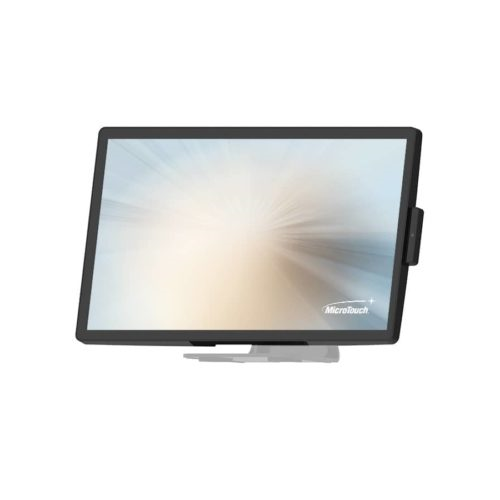

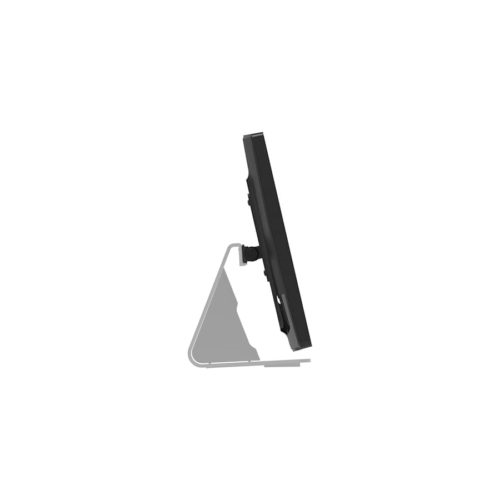

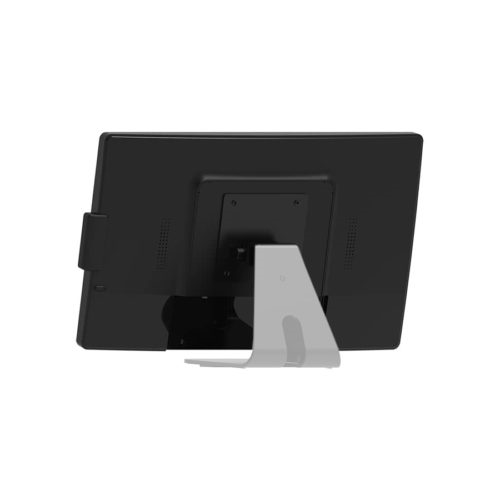

The DT-215P-B2 combines an ultra-modern, zero bezel design with a modular architecture that supports optional peripherals, making it a flexible one-stop solution for full-sized point-of-sale and point-of-service stations.
This 10-point PCAP touch display delivers Full HD 1920 x 1080 resolution and a seamless glass front, helping align the look and feel of commercial deployments with the consumer devices end-users are familiar with.
Featured Specifications
- Size: 21.5" TFT LCD
- Maximum Resolution: 1920 x 1080
- Contrast Ratio: 1000:1
- Aspect Ratio: 16:9
- Brightness: 250 nits (No Touch), 225 nits (P-CAP)
- View Angle: H: 178°, V: 178°
- Video Port: 1 x VGA, 1 x DP, 1 x HDMI
- Warranty: 3 year
| Product Specifications | |
|---|---|
| Touch Screen | Projected Capacitive |
| Touch Points | 10 |
| Touch Screen Interface | USB-C |
| Serial Port | 1 x RJ11 (for Remote Key) |
| USB Port | 1 x USB Type C (Alt Mode for DP video support) |

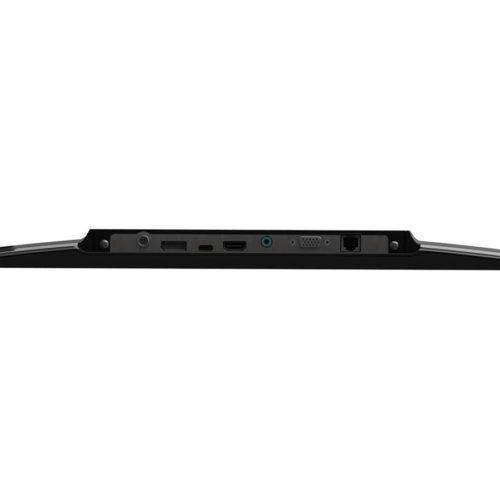

| Video Port | 1 x VGA, 1 x DP, 1 x HDMI (up to 1920 x 1080 @60Hz) |
| Audio Port | 1 x Audio-Input (3.5 mm Mini-Jack) |
| Power Input | 1 x DC In 12V Jack Power Input |
| Power Supply | Max. 60W (12V, 5A) External Power Adaptor |
| Speaker | 2 x 2W |
| Housing Color | Black |
| Construction | Glass, Plastic (ABS), SECC Metal |
| Dimensions (W x H x D) mm |
|
| Net Weight (kg) |
|
| Gross Weight (kg) |
|
| Carton (W x H x D) mm |
|
| VESA | 100 x 100 mm |
| Operating Temperature | 0˚C ~ 40˚C, 20% ~ 80% RH. Non-Condensing |
| Storage Temperature | -20˚C ~ 60˚C, 10% ~ 90% RH. Non-Condensing |
| Optional Peripheral |
|
