Pioneer TOM-M5

The pictures shown are general images for product TOM-M5 and may not be applicable to all part numbers

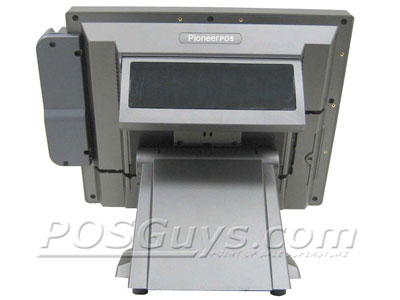

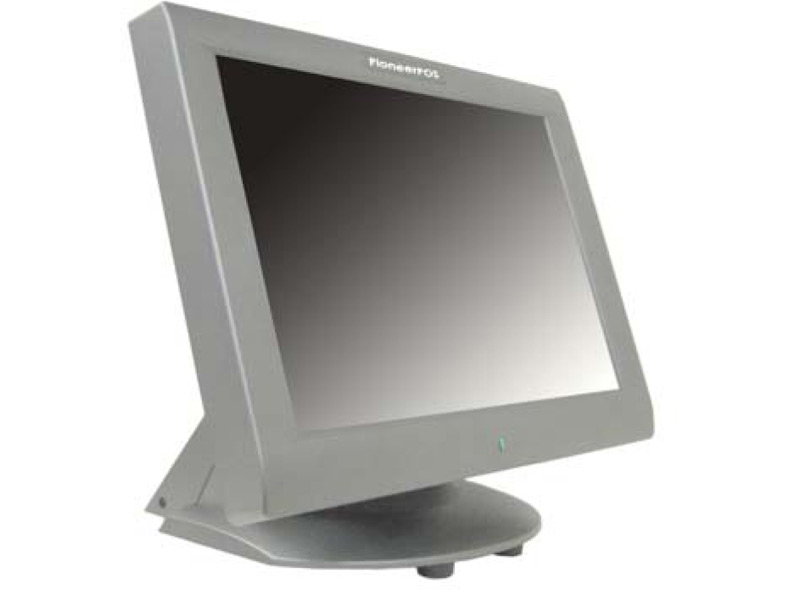

TOM-M5 POS Touch Screen Monitor


The Pioneer TOM-M5 has reached end of life.

The Pioneer TOM-M5 Touchscreen monitor features a 15" Active Matrix TFT LCD display with Resistive Touch Technology. The built-in 4-Port USB hub allows for easy cable management when the PC is otherwise not easily accessible. With an optional 3-track magnetic stripe reader, fingerprint scanner, or speakers, the TOM-M5 is ideal for any retail or restaurant POS environments.

Features
  • Spill resistant design
  • Built-in USB hub
  • Drivers for Windows XP, WePOS, Vista, CE.Net, Linux
  • 1 year warranty
  • Product Specifications
    Display Type 15 Inch TFT Active Matrix
    Color Options Dark Grey
    Interface USB
    Style Desktop
    Optimal Resolution 1024 x 768
    Aspect Ratio 4:3
    Brightness 250 nits
    Colors 16.2 million colors
    Weight 15 lb (6.9 kg)
    Dimensions 14.63(w) x 14(h) x 9(d)
    Mounting Options Removable Base, VESA 75mm, Wall or Pole Mount
    Operating Temperature 0°C to 40°C (32°F to 104°F)
    Power Supply External - AC 100-240V - DC Out +12V, 5A

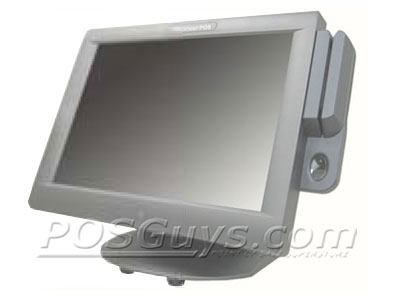

    Optional Peripherals Internal speakers (2 watts/channel) - magnetic stripe reader (MSR) with USB interface - fingerprint reader with USB interface - rear customer display with serial interface
    Warranty 1 Year

    Pioneer TOM-M5 Reviews

    POSGuys Rating:

    This monitor is a great example of the strengths of Pioneer, longevity and extendibility. We like it for the variety of interface options, the clever built in USB ports, and the high quality build. Due to it's industrial design, the TOM-M5 touch monitor has slightly larger dimensions but is as a result more sturdy and durable.

    Customer Reviews

    Accessories

    Base Stand for 15 Inch Touchsystem
    Please Call
    TOM-M7 Magnetic Stripe Reader (MSR): Dark Grey, 3-track, USB Interface
    TOM-M7 Fingerprint Reader and 3-Track Magnetic Stripe Reader (MSR) Combo

    Previously Available Models

    Previously Available Accessories
