Custom America SM600

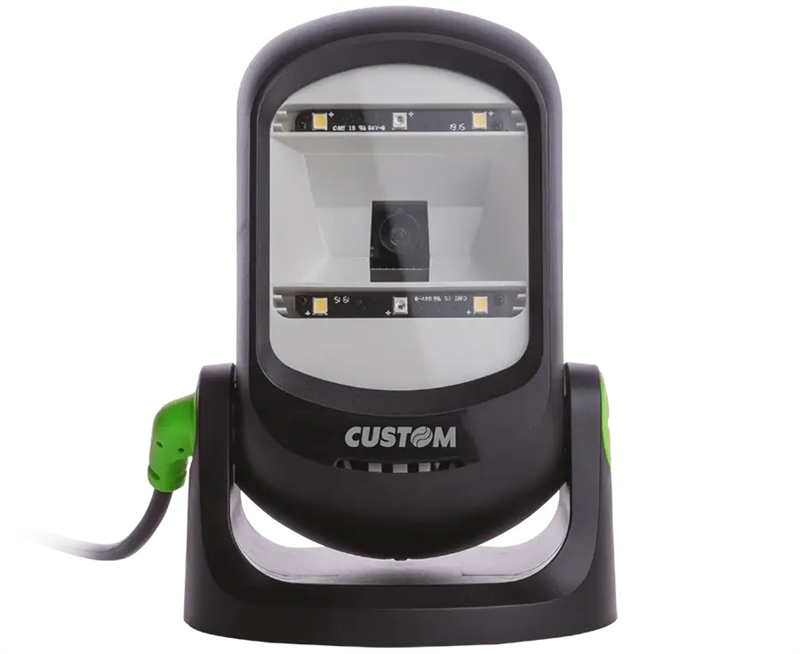

The pictures shown are general images for product SM600 and may not be applicable to all part numbers
SM600 Presentation Barcode Scanners
SM600 is a compact and omni-directional imaging presentation scanner. The compact size and small footprint makes it the ideal value solution for space-constrained environments. Built to scan everything from coupons, gift cards, loyalty cards, boarding passess and even theaters or cinema tickets - SM600's provides intuitive point-and-shoot scanning at a great price.
Product Specifications | |
---|---|
Dimensions (W x D x H) | 97.89 W x 74.90 D x 137.94 H mm |
Weight | 315g |
Material Type | ABS plastic |
Reading Angle | Horizontal -55°, Vertical -35° |
Scanner Resolution | 1280 (H) x 800 (V) pixels 3.0 mil (Code 39), 8 mil (QR Code) |
Scan Speed | 60 fps (frame per second) |
Pitch Angle | ±60°(from front to back) |
Skew/Pitch Roll Tolerance | ±60°(from plane parallel to symbol (side- to-side) Roll: 360° |
Environmental seal | IP42 (dust and water protection) |
MTBF | 50.000 hours |
Drop Resistance | 47.24 inches (120 cm) drop on concrete surface |
Downloads |
---|
MS600 Spec Sheet |
SM600 Spec Sheet |
