DataLogic Gryphon Fixed Mount

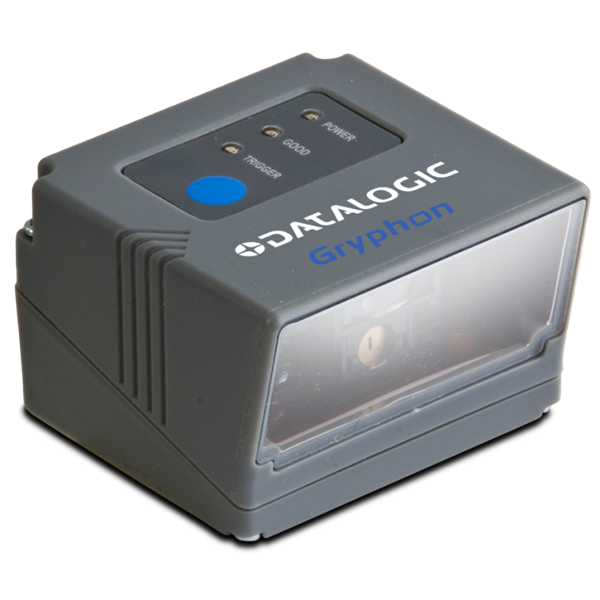

The pictures shown are general images for product Gryphon Fixed Mount and may not be applicable to all part numbers

Gryphon Fixed Mount Presentation Barcode Scanners


Using advanced imaging technology, the Gryphon™ I GFS4100 fixed mount bar code reader provides a complete self-contained solution for OEM use into self-service kiosks, price verifiers, ticket readers, document handling, and medical laboratory applications, as well as vending machines and other automated equipment.
Designed for easy integration, the Gryphon I GFS4100 reader provides a simple ‘plug-and-play’ solution for system designers. Constructed using high-impact resin to withstand repeated cleanings with solvents and disinfectant solutions, the sealed enclosure meets industrial standards against water and particulates to provide dependable and reliable scanning performance.
The Gryphon I GFS4100 OEM module shares the same excellent reading characteristics found in the premium line of Gryphon™ 4100 series of handheld devices. Featuring outstanding near-field reading, a wide angle field-of-view, improved motion tolerance and snappy reading, it also offers integrators excellent performance on decoding poor or damaged codes. As with all Gryphon readers, the GFS4100 reader offers users additional good-read visual confirmation with Datalogic’s patented ‘Green Spot’ technology.
The Gryphon I GFS4100 reader supports several modes that can be used as a trigger. The module has the ability to automatically sense objects and trigger itself. A continuous scan mode transmits data whenever a bar code passes into its field of view. The reader can be triggered remotely using input from programmable logic controller (PLC) or sensor.
Available in two models, the GFS4150-9 model supports an RS-232 serial interface, or the GFS4170 features a USB interface. The USB version supports both USB-HID for easy integration and keyboard emulation, or USB COM for virtual serial communications.

DataLogic Gryphon Fixed Mount Reviews

POSGuys Rating: Not Rated

Customer Reviews

Downloads

Recommended Models

GRYPHON GFS4400 2D FIXED SCANNER, USB cable

Additional Models

GRYPHON GFE4400, 2D Fixed Engine, RS232/USB (no cable) (OEM STYLE NO CASING)
Gryphon GFS4100, 1D Fixed Scanner, RS-232 (9P) - Use with Power Supply 90ACC1882
GRYPHON GFE4400, 2D Fixed Engine, USB KIT (OEM STYLE NO CASING)
GRYPHON GFS4400 2D FIXED SCANNER, RS232 cable

Previously Available Models
