DataLogic Magellan 9400i

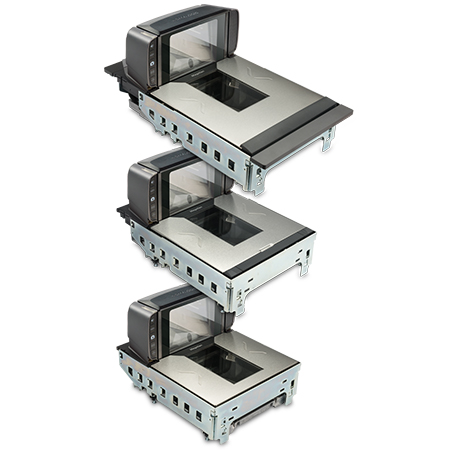

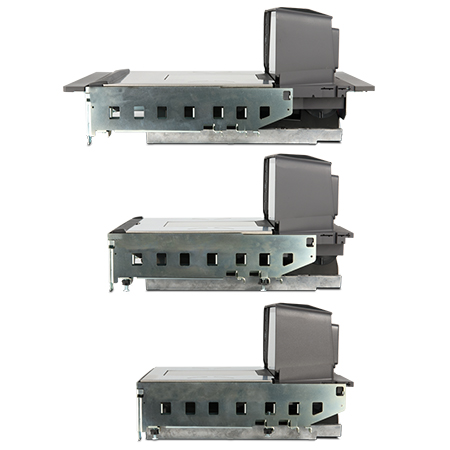

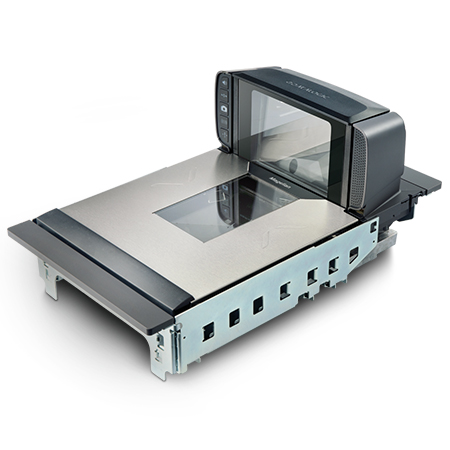

Magellan 9400i Product Image

The pictures shown are general images for product Magellan 9400i and may not be applicable to all part numbers

Magellan 9400i Presentation Barcode Scanners


The DataLogic Magellan 9400i is nearing end of life. It will soon be replaced by the DataLogic Magellan 9600i.

This product replaces the older DataLogic Magellan 8400.

The Magellan™ 9400i scanner/scale: a new class of high performance bar code scanners. With digital imagers in all planes, the 9400i scanners read both 1D and 2D bar codes seamlessly without requiring item orientation by the cashier.

With a more traditional bonnet height and large horizontal and vertical windows, the Magellan 9400i allows optimum positioning for POS or self-checkout touchscreens, payment terminals and printers while maintaining ergonomic comfort for both seated and standing cashiers.

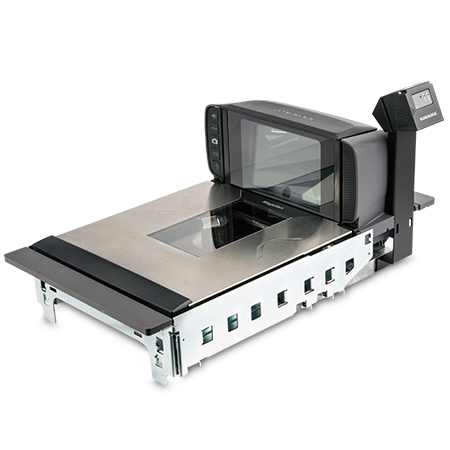

The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from their mobile phone screen or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.

Innovative features and options such as ScaleSentry™ shrink monitoring/prevention technology, AllWeighs™ platters and the support of all major EAS systems make 9400i purpose-built to help retailers reduce shrink at the POS.

Features

  • RS-232 Serial (single or double), IBM 46XX, and USB Multi-Interfaces
  • Seamless scanning of 1D and 2D codes in all planes, w/customer facing scanner for coupons
  • Digimarc scanning option (9400i Only)
  • Single or Dual Interval Scale Options, 30 LBS capacity
  • Product Specifications
    Dimensions Depth (Below Counter): 10.2 cm / 4.0 in
    Height (Above Counter): 13.0 cm / 5.1 in
    Length (By Model):
  • 939401 (Short, Scanner Only): 35.6 cm / 14.0 in
  • 939403 (Medium, Scanner Only): 40.1 cm / 15.8 in
  • 939405 (Long, Scanner Only): 50.8 cm / 20.0 in
  • 939404 (Medium, Scanner/Scale): 40.1 cm / 15.8 in
  • 939406 (Long, Scanner/Scale): 50.8 cm / 20.0 in
    Width: 29.2 cm / 11.5 in
  • Interfaces Available Powered RS-232; Remote Scale Display; EAS Controller Ports; Sensormatic, Interlock; Powered USB Host (Type A) (x2); RS-232 / IBM 46XX / USB Multi-Interface: OEM (IBM) USB Plus Power (Scanner and Scale); RS-232 (Scanner) / RS-232 (Scale); RS-232 (Scanner) or Single Cable RS-232 (Scanner and Scale)
    Scan Method 5-Side (plus Customer Service Scanner) Area Imagers
    Decoding Capabilities Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes; EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417; UPC A/E Composites; Aztec Code; Data Matrix; QR Code, Micro QR Code; Optional support for Digimarc® Barcode (9400i series only)
    Scale Max Static Weight 68.0 kg / 150.0 lb
    Power AC Input: 100 - 240 VAC, 50-60 Hz Power Consumption: Operating (Nominal): 12 Watts Sleep Mode: 11 Watts
    Indicators Audio: 85 dB Speaker; Adjustable Tone and Volume; Supports WAV file formats Visual: Good Read confirmation for all reading planes; Scale center of zero; ScaleSentry event; Sensormatic EAS status
    Operating Temperature 10 to 40 °C / 50 to 104 °F
    Storage Temperature -40 to 70 °C / -40 to 158 °F
    Accessories Remote Scale Display; Dual-Head Remote Scale Display; Customer Service Scanner (w/Omni Mount, Bonnet Side Mount, or Bonnet Back Mount)
    Warranty 1 Year

    DataLogic Magellan 9400i Reviews

    POSGuys Rating: Not Rated

    Customer Reviews

    Recommended Models

    Magellan 9400, Long, 20”, flange mount, sapphire top, produce rail, power supply, Single R232 Cable
    $2014.85 Add to Cart
    Magellan 9400i Scanner/Scale, English Config/Single Interval/No Display, Long Sapphire Platter/Flange Mount w/ Fixed Produce Rail, Enhanced Processing with Scale Sentry, US Std Power Cord/Brick, RS232 Single Cable, ICL9620,NCR,PC
    $2014.85 Add to Cart

    Additional Models

    Magellan 9400i Scanner/Scale, English Config/Single Interval/No Display, Medium Sapphire Platter/Flange Mount w/ Fixed Produce Rail, Enhanced Processing with Scale Sentry, US Std Power Cord/Brick, RS232 Standard Cable,ICL9520, PC9S
    $2029.60 Add to Cart
    Magellan 9400i Scanner Scale, Metric w/ Display, Medium Sapphire Platter/, LLT, Flush Rail SHELF MOUNT, Canada Single Interval (Metric) Enhanced Processing, Single Display/Single Interval, Retail Serial Cable , AC power cord and Power Brick
    $2008.36 Add to Cart
    Magellan 9400i Scanner/Scale, English Config/Single Interval/No Display, Long Sapphire Platter/Flange Mount w/ Fixed Produce Rail, Enhanced Processing with Scale Sentry, CSS with Bonnet Mount, USB POT Cable
    $2249.67 Add to Cart
    Magellan 9400i Scanner/Scale, English Config/Single Interval/No Display, Long Sapphire Platter/Flange Mount w/ Fixed Produce Rail, Enhanced Processing with Scale Sentry, CSS with Bonnet Mount, US Std Power Cord/Brick, IBM 46XX Port 9E Cable
    $2275.04 Add to Cart
    Magellan 9400i Scanner/Scale, English Config/Single Interval/No Display, Medium Sapphire Platter/Flange Mount w/ Fixed Produce Rail, Enhanced Processing with Scale Sentry, US Std Power Cord/Brick, RS232 Single Cable, ICL9620,NCR,PC
    $2014.85 Add to Cart
    Magellan 9400i Scanner/Scale, English Config/Single Interval/No Display, Med Sapphire Platter/SHELF MOUNT w/ Fixed Produce Rail, Enhanced Processing with Scale Sentry, US Std Power Cord/Brick, Retail USB Type A E/P Cable
    $2014.85 Add to Cart
    Magellan 9400i Scanner/Scale, Canada Metric Config/Single Interval w/ Display, Long Sapphire Platter/Flange Mount w/ Fixed Produce Rail, Enhanced Processing, US Std Power Cord/Brick, RS-232 Single Cable
    $2008.36 Add to Cart

    Accessories

    Scale Cable for Dual Cable Mode, RS-232, PC Scale, Female, 15 ft for dual cable setup. For Datalogic Magellan.
    MAGELLAN 9400i SCANNER SCALE, OVERNIGHT, 3 YEARS, Comprehensive Warranty
    Scanner Scale Cable for Single Cable Mode, RS-232, ICL, PC, 4.5 m/15 ft (9 PIN). For Datalogic Magellan.
    Kit, Remote Scale Display, English, Single Head, Single Interval, US/Canada/Puerto Rico
    PWR ADP,12V/18W,PSAA18U-120(D6)-R
    Datalogic Universal Power Power Cord (120VAC, STD)

    Previously Available Models
