DataLogic Magellan 9500

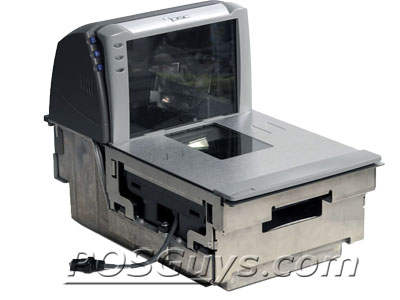

The pictures shown are general images for product Magellan 9500 and may not be applicable to all part numbers

Magellan 9500 Presentation Barcode Scanners

The DataLogic Magellan 9500 has reached end of life.

The Datalogic Magellan 9500 Barcode Scanner / Scale Combination features a sturdy design and advanced scanning capabilities to speed checkout in grocery and high volume retail environments. FirstStrike Advanced Decoding technology increases first read accuracy and robustness to dirty, damaged and unreadable barcodes, while the 360° scanning planes eliminate the need to readjust products for scanning. Available as a standalone barcode scanner or as a scanner / scale combination, the Datalogic Magellan 9500 will provide your high volume retail location years of excellent service.

  • Optional Dual EAS Antennas in both vertical and horizontal planes
  • Scale models feature 30 lb capacity at 0.01 lb increments
  • 6-sided reading for products up to 5.5" tall
  • 6,400 scanlines/sec
  • 50° to 104° F operating temperature
  • Product Specifications
    Dimensions Length: Model 9502Ù (scanner/scale): 20.0"/ 50.8 cm
    Model 9501Ù (scanner): 20.0"/ 50.8 cm
    Model 9503Ù (scanner): 20.0" / 50.8 cm
    Model 9504Ù (scanner/scale): 20.0" / 50.8 cm

    All Models: 11.5 in (29.2 cm) W x 7.0 in (17.8 cm) H (Above Counter) x 6.5 in (16.5 cm) D (Below Counter)
    Weight Model 9502Ù (scanner/scale): 28.9 lb / 13.11 kg
    Model 9501Ù (scanner): 22.2 lb / 10.07 kg
    Model 9503Ù (scanner): 24.2 lb / 10.9 kg
    Model 9504Ù (scanner/scale): 32.9 lb / 14.9 kg
    Color Options Grey
    Interfaces Available IBM RS-485
    Scan Method Omni Directional Laser Scanner
    Decoding Capabilities Standard 1D Barcodes
    Mobility/Range In-Counter Scanner
    Scan Rate (Maximum) 6,400 lines/sec.
    Scale Capacity 30.0 lb / 9.99 kg or 15 kg
    Scale Max Static Weight 150 lb / 68 kg
    Scale Minimum Legal Weight .01 lb / 0.005 kg
    Indicators LED
    Auto Sense Mode Yes
    Operating Temperature 50° to 104° F / 10° to 40° C
    Storage Temperature -40° to 158° F / -40° to 70° C
    Warranty 1 Year
