DataLogic Magellan 9900i

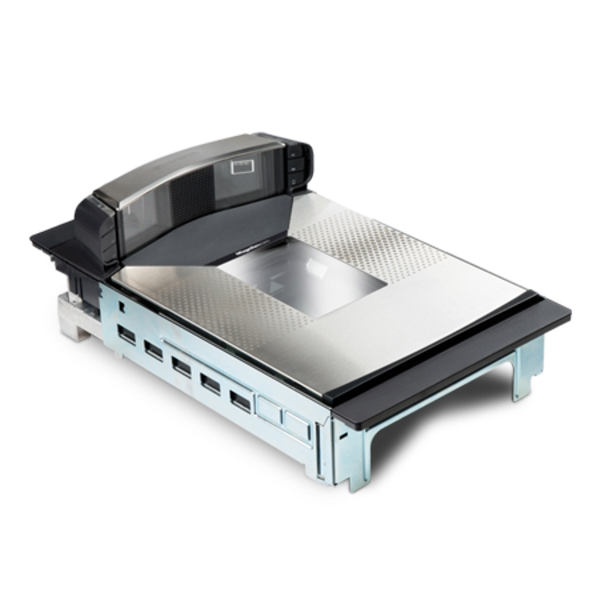

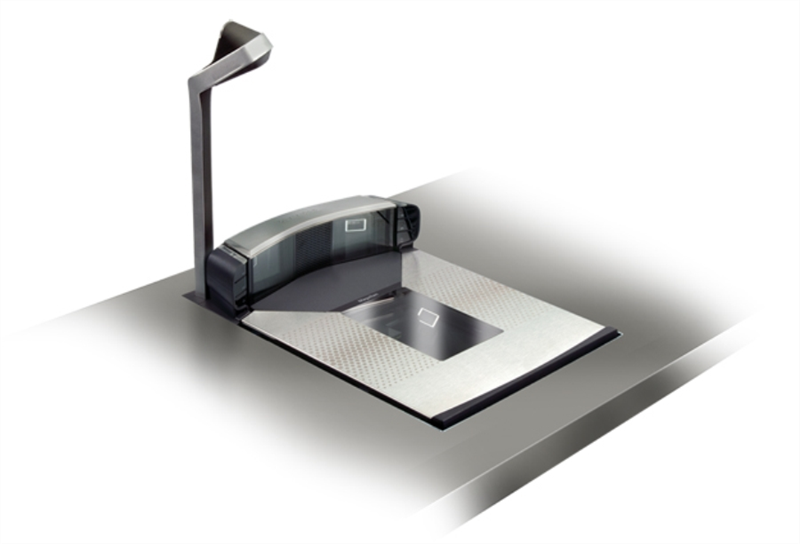

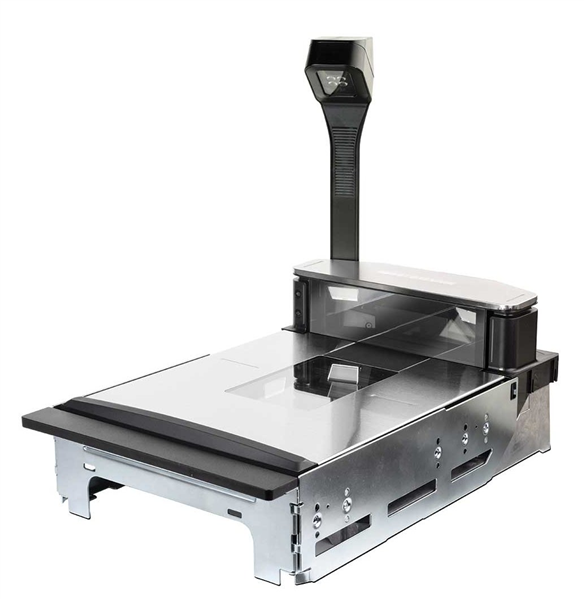

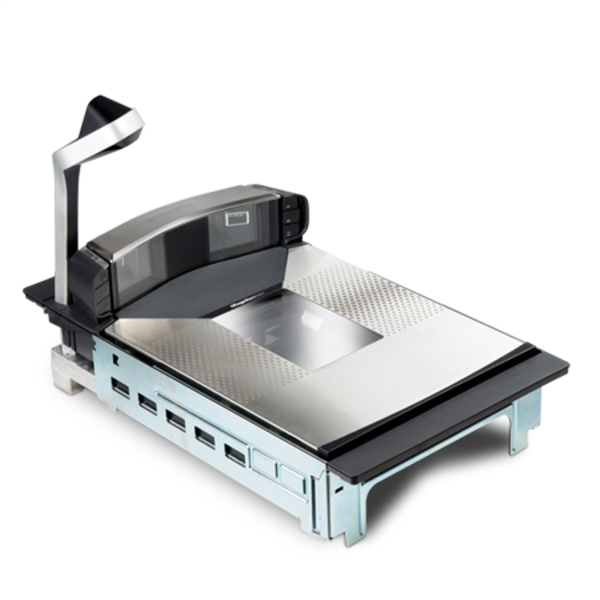

Magellan 9900i Product Image

The pictures shown are general images for product Magellan 9900i and may not be applicable to all part numbers

Magellan 9900i Presentation Barcode Scanners


This product replaces the older DataLogic Magellan 9800i.

Scanning Excellence with an AI Edge

The #1 selling ‘in counter’ scanners for assisted and self-checkout are now even better. Fresh styling, rugged design, industry-leading scan performance and new options that enable Artificial Intelligence (AI) at the checkout put the Magellan 9900i portfolio in a class of their own and positions it as a strong replacement to it's predecessor, the Magellan 9800i.

With basic and advanced configurations, the 9900i scanners and scanner/ scales are the perfect companion for Point of Sale (POS) systems in all high throughput checkout environments. The lower height allows customers to better meet ADA compliance and improve the customer experience. Three chassis lengths, multiple checkstand mount options and the addition of a Top Down Reader (TDR) allows customers to tailor a solution that best solves their assisted and self-checkout needs.

Enhancing the Cashier or Customer Experience

Packed with the latest imaging technology, the 9900i scanners feature the largest scan volume in their class. This ensures fastest read rates and ease of use regardless of 1D, 2D, GS1 or Digimarc symbologies.

The new Magellan scanners feature capacitive touch buttons and smooth surfaces to ensure the above counter areas are easy to clean and sanitize.

The 9900i TDR option expands the scan volume by 20% and adds an industry unique 6-sided view of items crossing the platter for the ultimate scanning experience. The TDR comes in 3 heights and offers an optional integrated customer-facing reader, enabling customers to scan mobile devices and coupons independent from a cashier in assisted lanes improving efficiency.

Integrated Loss Prevention Features For Today's Retail Challenges

Magellan 9600i is powered by QuadVision™, a multi-core processor and multi-camera system with embedded Linux operating system to future-proof the platform. ScanSentry™ color camera options and neural processors result in a checkout that is fully enabled to support Artificial Intelligence (AI) software that will boost customer satisfaction and dramatically improve loss prevention.

  • ScaleSentry Technology
    Monitors the sides of the scale platter with an infrared (invisible) beam to detect if fruit or produce is misplaced on the scale platter causing the item to be under-weighed.
  • All-Weighs™ Scale Platter
    The All-Weighs scale platter design provides a total scanner weighing surface including the top of the bonnet, allowing the user to properly weigh produce that is too long to fit on the platter surface.
  • ScanSentry
    The 9600i can detect item movement across the platter and alert the POS system if no barcode was detected. This can be augmented with color cameras and Artificial Intelligence to create ‘best in class’ loss prevention and item recognition solutions.
Product Specifications
Auto Discriminates all Retail Barcodes EAN/JAN/UPC, Code 128, EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417; UPC A/E Composites. Aztec Code; Data Matrix; QR Code, Micro QR, Digimarc® Barcode and all future GS1 codes.
Illumination Multiple diffused LEDs: orientation and wavelength optimized for eye comfort.
Scan Indicators
  • Visual: Good-read confirmation for all reading planes
  • Audio: 85 dB Speaker - Adjustable Tone and Volume plus Supports WAV file formats.
  • Host Multi-Interface RS-232 / USB
  • Multi-Interface: OEM (IBM) USB Plus Power (Scanner / Scale); RS-232 (Scanner) / RS-232 (Scale); RS-232 (Scanner) or Single Cable RS-232 (Scanner / Scale)
  • POS Operating Systems Windows10, Linux, Android™; OPOS and JavaPOS utilities are available for download
    Auxiliary Ports Powered USB Host (Type A) (x2); Powered RS-232; Remote Scale Display; EAS Controller Ports; Sensormatic, Interlock
    Ethernet Ports 1 x Ethernet is standard; Optional 7 port Ethernet switch (IEEE1588)
    NOTE: Switch requires an external 48V power supply
    Magellan Dual Interval Scale Technology
  • Minimum Increment: Range 1: 0.002 kg / 0.005 lb;
  • Range 2: 0.005 kg / 0.010 lb
  • Scale Capacity: Range 1: 0 - 6.0 kg / 0 - 15.0 lb;
  • Range 2: 6.0 - 15.0 kg / 15.0 - 30.0 lb
  • Magellan Single Interval Scale Technology
  • Minimum Increment: 0.005 kg / 0.010 lb;
  • Scale Capacity: 0 - 15.0 kg / 0 - 30.0 lb
  • Adaptive Scale Compatibility – Adaptive Scales: Bizerba; Mettler Toledo; Max. Static Weight: 68.0 kg / 150.0 lb Vibration immunity: 4 filter settings
    All-Weighs Scale Platter Integrated horizontal and vertical scale platter surfaces increase active weighing area for easy, accurate weighing of large items.
    ScaleSentry ScaleSentry is an infrared platter detection system to provide shrink prevention; Configurable audio / visual indicators identify items placed outside weighing surface.
    EAS Features Integrated EAS Antenna for Checkpoint and Nedap. Sensormatic Deactivation Controller integrated with Datalogic SmartSentry™ technology; Scanner provides Good-read / EAS Status Indicators
    ScanSentry Magellan 9900i can host a variety of Artificial Intelligence solutions that improve customer experience and reduce losses at the checkout.
    Dimensions
  • Depth (below counter): 10.6 cm / 4.0 in
  • Length: Short - 35.2 cm / 13.9 in
  • Length: Medium - 39.9 cm / 15.7 in
  • Length: Long - 43.7 cm / 17.2 in
  • Width: 29.2 cm / 11.5 in
  • 9900i height (above counter): 6.8 cm / 2.7 in
  • Power Requirements
  • Scanner Power Consumption: 12 VDC
  • Operating (Nominal): 9.3 Watts; Sleep: 7.3 Watts;
  • Optional DC brick: AC Input: 100 - 240 VAC, 50-60 Hz
  • Optional Ethernet 48 VDC brick: AC Input: 100 - 240
  • VAC, 50-60 Hz
  • Ambient Light 0-86,080 lux
    ESD Protection 25 kV air discharge
    Humidity (Non-Condensing) 5 - 95%
    Temperature
  • Operating: 10 to 40 °C / 50 to 104 °F
  • Storage/Transport: -40 to 70 °C / -40 to 158 °F
  • Agency Approvals
  • The product meets necessary safety and regulatory approvals for its intended use.
  • See the Quick Reference Guide for a complete list of certifications.
  • Environmental Compliance Complies to China RoHS; Complies to EU RoHS; Complies to R.E.A.C.H. - EC1907/2006
    Aladdin™ Configurator Datalogic Aladdin provides customers the opportunity to manage the configuration of handheld or fixed position products, and allows firmware updates, advanced formatting through an intuitive user interface.
    Magellan SDK(s) Datalogic will provide developer tools to support POS integration and the optional AI enablement HW functionality (Color cameras, Neural Processors, and Ethernet expansion).
    Remote Management Capabilities Current Diagnostic reporting utilizes WMI (OPOS and JavaPOS) and MBeans (JavaPOS); Host Download Supports IBM Director, Wavelink Avalanche™ and other ERP management solutions.
    Future AI Enablement Features (Options) Image Capture
    Magellan 9900i offers two color cameras (TDR and HCCM) for AI inference models image collection. Tensor Processor
    Magellan 9900i offers a Coral TPU for processing AI inference models inside the scanner. Ethernet Switch
    A 7 port Ethernet switch allows the Magellan to connect up to 2 integrated and 4 external cameras for creating a ‘zone of cognition’.
    Warranty 1-Year Standard Factory Warranty

    DataLogic Magellan 9900i Reviews

    POSGuys Rating: Not Rated

    Customer Reviews

    Recommended Models

    Magellan 9900i Scanner/Scale, Long Platter/Fixed Produce Rail/Shelf Mount with Scale Sentry,US/Single Interval/English Config, US Std Power Brick/Cord, USB Type A E/P Cable
    $1716.90 Add to Cart
    Platter Length:Long
    Interface Type:USB

    Additional Models

    Magellan 9900i Scanner/Scale, Med Platter/Fixed Produce Rail/Shelf Mount with Scale Sentry, US/Single Interval/English Config, US Std Brick and Cord, RS/RS Std I/F, No Cable, No EAS
    $1698.61 Add to Cart
    Platter Length:Medium
    Interface Type:Serial
    Magellan 9900i Scanner/Scale, Long Platter/Fixed Produce Rail/Flange Mount with Scale Sentry, US/Single Interval/English Config, US Std Brick and Cord, RS/RS Std I/F, No Cable
    $1698.61 Add to Cart
    Platter Length:Long
    Interface Type:Serial

    Accessories

    Datalogic Cable USB Type A External Power 4.5 m/15 ft. For Datalogic Magellan.
    Scanner Scale Cable for Single Cable Mode, RS-232, ICL, PC, 4.5 m/15 ft (9 PIN). For Datalogic Magellan.
    Scale Cable for Dual Cable Mode, RS-232, PC Scale, Female, 15 ft for dual cable setup. For Datalogic Magellan.
    Cable, RS-232, PC, 4.5 m/15 ft (25 PIN). For Datalogic Magellan.
    Top Down Imager, 7", Magellan 9800i
    9-Inch Top Down Reader. For Datalogic Magellan 9800i.
    Magellan 9800i Top Down Reader, Tall Model, 12.4 Inches
    Power Adapter,12V/30W, PSAC3OU-120L6D-R. For Datalogic Magellan.
    Datalogic Universal Power Power Cord (120VAC, STD)
    Power Cord, 120V, US, Twist & Lock. For Datalogic Magellan.
    Remote Scale Display Kit, English, Dual Head, Dual Interval, US/Canada/Puerto Rico. For Datalogic Magellan.
    Remote Scale Display Kit, English, Dual Head, Single Interval, US/Canada/Puerto Rico. For Datalogic Magellan.
    Remote Scale Display Kit, English. Single Head, Dual Interval, US/Canada/Puerto Rico. Datalogic Magellan 9800i
    Kit, Remote Scale Display, English, Single Head, Single Interval, 22" Post
    Cable, USB, Type A, External Power, 4.5 m/15 ft. For Datalogic Magellan.
