Honeywell HF810 & HF811

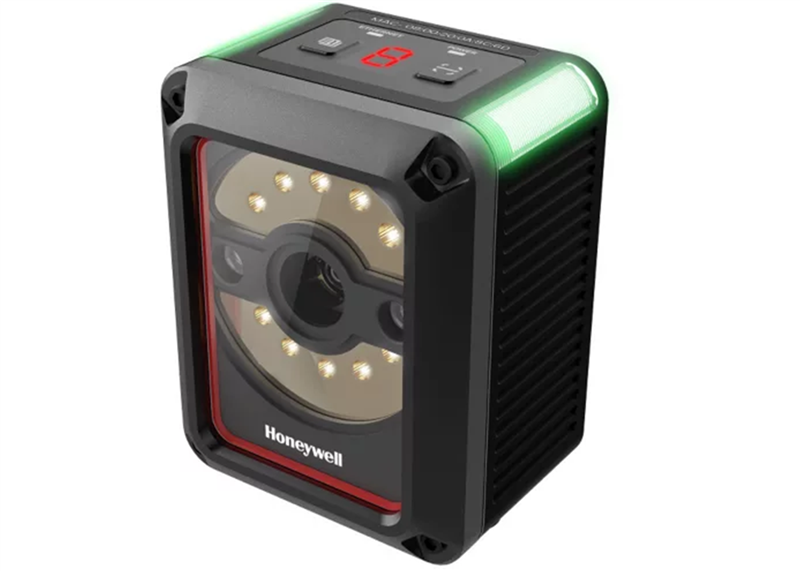

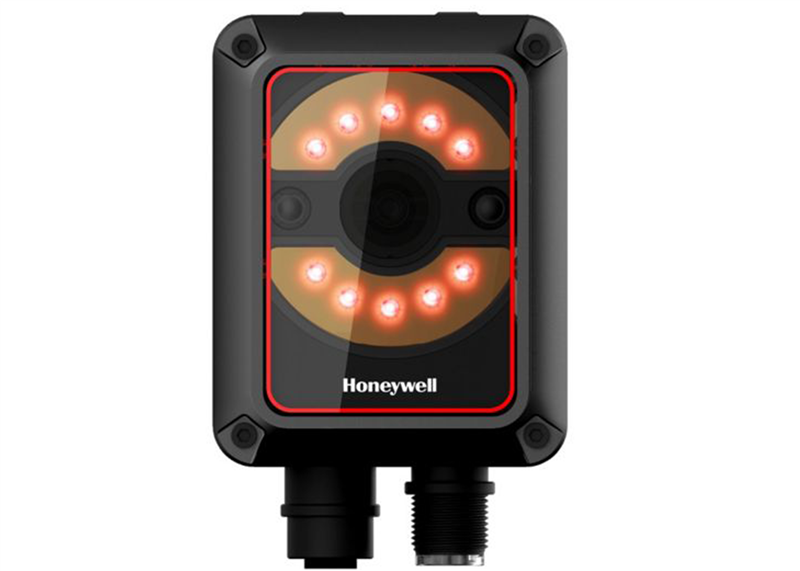

The pictures shown are general images for product HF810 & HF811 and may not be applicable to all part numbers
HF810 & HF811 Presentation Barcode Scanners
Built with flexibility in mind, the HF810 and HF811 are designed to perform in a wide variety of environments and enable seamless integration with package sorting and light manufacturing processes.
About the HF810 & HF811
With Honeywell’s state-of-the-art technology in encoding and decoding, HF810 Fixed-mount 2D Industrial Scanner offers powerful performance, including DPM capabilities, in a compact form factor that can be networked to build a complete manufacturing or warehouse management solution for end users.
Features and Benefits
- Enhanced performance - Dedicated DPM algorithm for rapid scanning in manufacturing workflows
- Flexible configuration - Network-ready with I/O functionality for accessories such as external triggers and auxiliary lighting
- Plug and Play - DataMax Plus configuration tool enables rapid setup. Autotune function optimizes scanning parameters with the press of a button
| Product Specifications | |
|---|---|
| Dimensions with Stand (H x W x D) | 70 mm x 55 mm x 45 mm |
| Weight | 180g |
| Lens | Liquid Lens |
| Communication | RS232, RS485, TCP/IP, Field Bus Protocol (Profinet, EthernetIP, Modbus TCP) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| IP Rating | IP65 |
| Scan Pattern | Area image |
| Resolution |
|
| Scan Angle |
|
| Decode Capability | Reads standard 1D, PDF, 2D (QR, Datamatrix, Maxicode, Aztec) DPM |
Honeywell HF810 & HF811 Reviews
Customer Reviews
| Downloads |
|---|
| Quick Start Guide |
| Spec Sheet |
| User Manual |
Recommended Models
HF81X Scanner-Only: Tethered, Fix Mount, 1D/2D DPM, FlexRange, 2MP, White, Wide FOV, Transparent, Ethernet, RS232, Auto-focus, Global
$1651.55 Add to Cart
Megapixel:2MP
LED Illumination:White
Field of View:Wide
Additional Models
HF81X Scanner-Only: Tethered, Fix Mount, 1D/2D DPM, FlexRange, 0.5MP, Blue, Narrow FOV, Transparent, Ethernet, RS232, Auto-focus, Global
$1445.72 Add to Cart
Megapixel:0.5MP
LED Illumination:Blue
Field of View:Narrow
HF81X Scanner-Only: Tethered, Fix Mount, 1D/2D DPM, FlexRange, 0.5MP, Red , Narrow FOV, Transparent, Ethernet, RS232, Auto-focus, Global
$1445.72 Add to Cart
Megapixel:0.5MP
Field of View:Narrow
LED Illumination:Red
HF81X Scanner-Only: Tethered, Fix Mount, 1D/2D DPM, FlexRange, 0.5MP, White, Narrow FOV, Transparent, Ethernet, RS232, Auto-focus, Global
$1445.72 Add to Cart
Megapixel:0.5MP
Field of View:Narrow
LED Illumination:White
HF81X Scanner-Only: Tethered, Fix Mount, 1D/2D DPM, FlexRange, 0.5MP, Blue, Wide FOV, Transparent, Ethernet, RS232, Auto-focus, Global
$1445.72 Add to Cart
Megapixel:0.5MP
LED Illumination:Blue
Field of View:Wide
HF81X Scanner-Only: Tethered, Fix Mount, 1D/2D DPM, FlexRange, 0.5MP, Red , Wide FOV, Transparent, Ethernet, RS232, Auto-focus, Global
$1445.72 Add to Cart
Megapixel:0.5MP
LED Illumination:Red
Field of View:Wide
HF81X Scanner-Only: Tethered, Fix Mount, 1D/2D DPM, FlexRange, 0.5MP, White, Wide FOV, Transparent, Ethernet, RS232, Auto-focus, Global
$1445.72 Add to Cart
Megapixel:0.5MP
LED Illumination:White
Field of View:Wide
HF81X Scanner-Only: Tethered, Fix Mount, 1D/2D DPM, FlexRange, 2MP, Blue, Narrow FOV, Transparent, Ethernet, RS232, Auto-focus, Global
$1651.55 Add to Cart
Megapixel:2MP
LED Illumination:Blue
Field of View:Narrow
HF81X Scanner-Only: Tethered, Fix Mount, 1D/2D DPM, FlexRange, 2MP, Red , Narrow FOV, Transparent, Ethernet, RS232, Auto-focus, Global
$1651.55 Add to Cart
Megapixel:2MP
Field of View:Narrow
LED Illumination:Red
HF81X Scanner-Only: Tethered, Fix Mount, 1D/2D DPM, FlexRange, 2MP, White, Narrow FOV, Transparent, Ethernet, RS232, Auto-focus, Global
$1651.55 Add to Cart
Megapixel:2MP
Field of View:Narrow
LED Illumination:White
HF81X Scanner-Only: Tethered, Fix Mount, 1D/2D DPM, FlexRange, 2MP, Blue, Wide FOV, Transparent, Ethernet, RS232, Auto-focus, Global
$1651.55 Add to Cart
Megapixel:2MP
LED Illumination:Blue
Field of View:Wide
HF81X Scanner-Only: Tethered, Fix Mount, 1D/2D DPM, FlexRange, 2MP, Red , Wide FOV, Transparent, Ethernet, RS232, Auto-focus, Global
$1651.55 Add to Cart
Megapixel:2MP
LED Illumination:Red
Field of View:Wide
Accessories
HF81X Ethernet Cable, M12 Connector, 2 meters.
$56.85 Add to Cart
HF81X Ethernet Cable, M12 Connector, 5 meters.
$94.74 Add to Cart
HF81X Ethernet Cable, M12 Connector, 10 meters.
$101.51 Add to Cart
HF81X IO Cable, M12/DB9 connectors, 2 meters.
$87.97 Add to Cart
HF81X IO Cable, M12 Connector, 5 meters.
$94.74 Add to Cart
HF81X IO Cable, M12 Connector, 10 meters.
$135.35 Add to Cart
HF81X Serial Cable, M12/DB9 connectors, 2 meters.
$135.35 Add to Cart
HF81X Serial Cable, M12/DB9 connectors, 5 meters.
$182.72 Add to Cart
HF81X Serial Cable, M12/DB9 Connectors, 10 meters.
$324.84 Add to Cart
HF81X Installation Bracket.
$10.44 Add to Cart
HF81X Power Supply.
$215.19 Add to Cart
