Honeywell Solaris

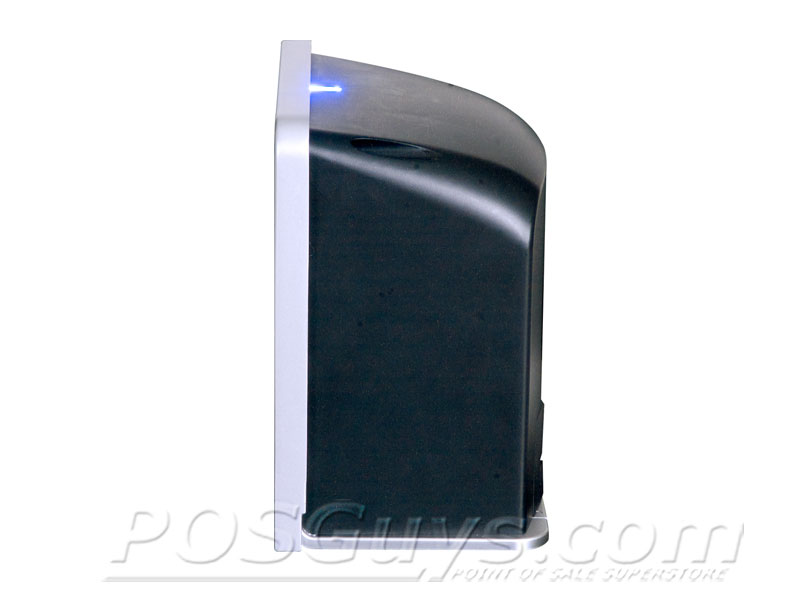

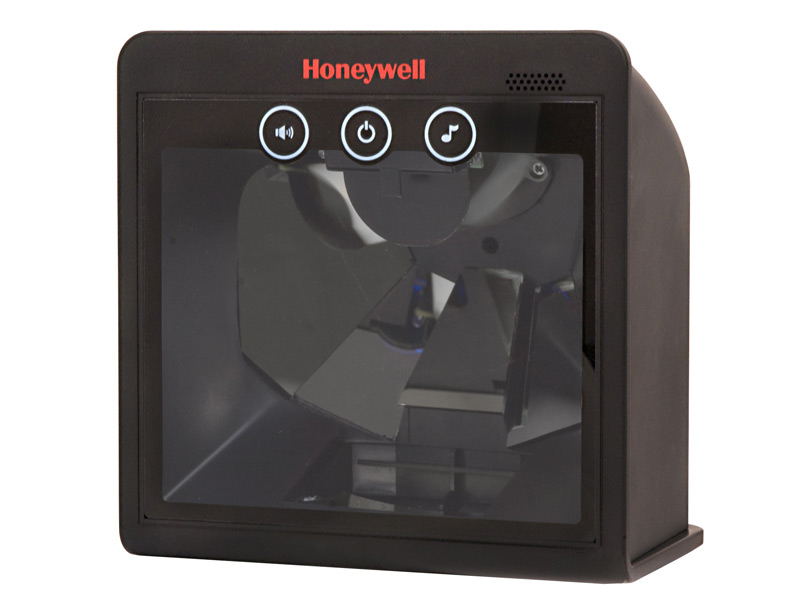

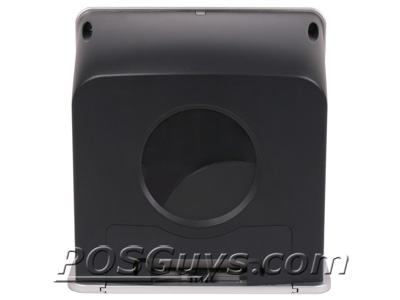

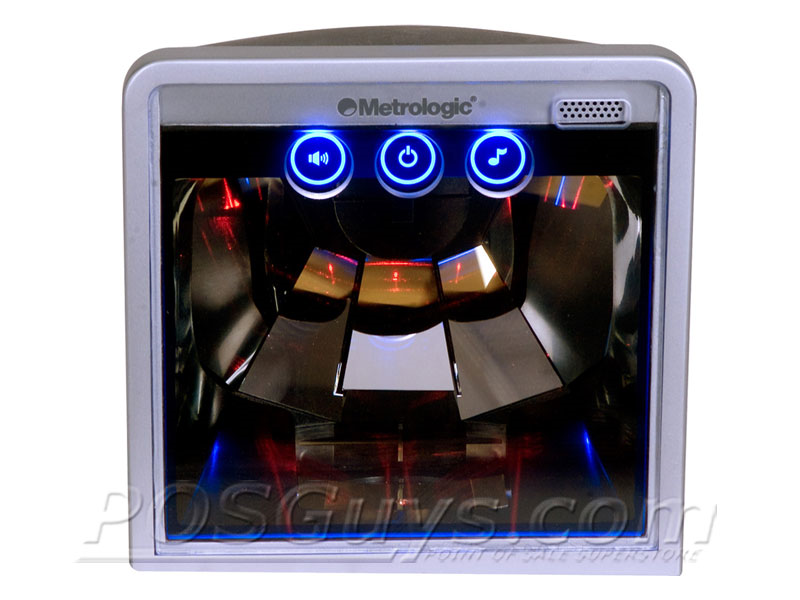

Solaris Product Image

The pictures shown are general images for product Solaris and may not be applicable to all part numbers

Solaris Presentation Barcode Scanners

The Honeywell Solaris has reached end of life. It has been replaced by the Honeywell Solaris 7980g.

The Metrologic Solaris omnidirectional scanner features an incredibly aggressive scan engine, excellent for high volume retail or grocery environments. Products scan accurately while traveling past the scanner at high speeds or even in free fall, minimizing wait time at checkout. An integrated RF EAS antenna allows the Solaris to integrate with loss-prevention systems, simplifying point of sale setup.

Multiple on-board interfaces allow the Solaris to install into a variety of locations with ease. A built-in diagnostic display provides easy troubleshooting for any possible scanner errors, lowering the total cost of ownership.

Click Here for Additional Warranty Information


  • Speedy 1800 scan lines per second
  • Contact to 10" effective scan range
  • Can scan up to 5 mil barcodes
  • 3 buttons for power, buzzer volume, and buzzer tone

  • Product Specifications
    Dimensions 92 x 152 x 152 mm (3.6 x 6.0 x 6.0")
    Weight 700 g (24.7 oz)
    Color Options Graphite Grey
    Interfaces Available USB HID Keyboard Wedge
    USB Serial Emulation
    RS-232 Serial
    PS/2 Keyboard Wedge
    Scan Method Omni Directional Laser Scanner
    Decoding Capabilities Reads standard 1D and GS1 DataBar symbologies
    Mobility/Range Corded
    Scan Rate (Maximum) 1800 scan/second
    Reading Angle Pitch: 60°
    Skew: 60°
    Print Contrast (Min.) 35%
    Typical Depth of Field 5.2 mil 0 - 45 mm (0 - 1.8")
    7.5 mil 0 - 150 mm (0 - 6.0")
    10.4 mil 0 - 230 mm (0 - 9.0")
    13 mil 0 - 255 mm (0 - 10.0")
    26 mil 0 - 280 mm (0 - 11.0")
    Indicators LED
    Adjustable Beep
    Auto Sense Mode Yes
    Operating Temperature 0°C to 40°C (32°F to 104°F)
    Storage Temperature -40°C to 60°C (-40°F to 140°F)
    Environmental Sealing Sealed to resist airborne particulate contaminants
    Stand Yes, Optional Flex Pole Stand
    Warranty 2 year factory warranty

    Honeywell Solaris Reviews

    POSGuys Rating:

    "The Metrologic MS7820 Solaris mini-slot scanner keeps checkout lines moving with its aggressive scan engine that scans at 1800 scan lines per second. Featuring a large scanning window for accurate scanning on the first pass, the Solaris combines reliability with excellent performance."
