Honeywell Vuquest 3320G

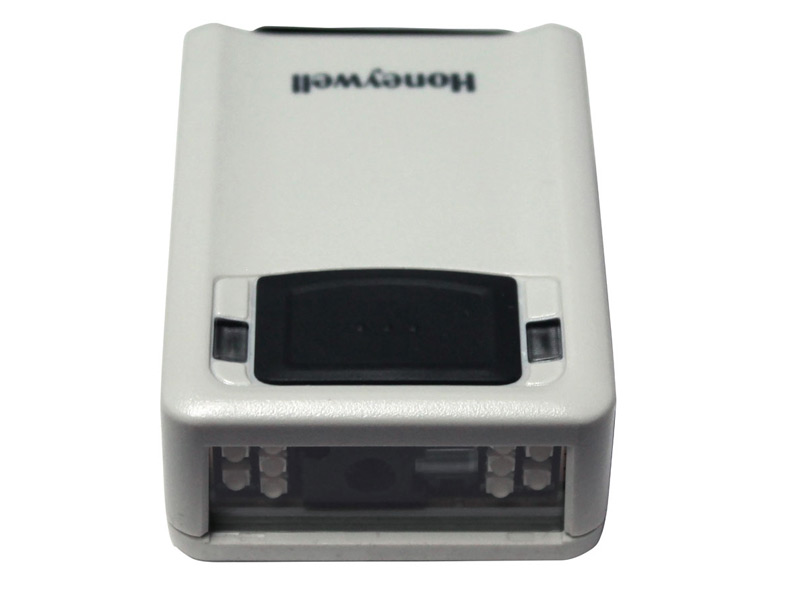

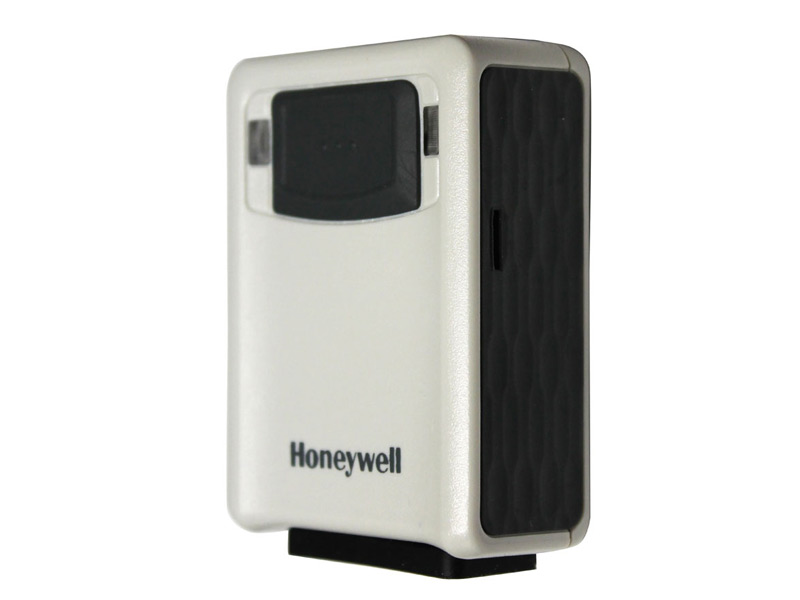

The pictures shown are general images for product Vuquest 3320G and may not be applicable to all part numbers
Vuquest 3320G Presentation Barcode Scanners
This product replaces the older Honeywell Vuquest 3310g.
The Vuquest 3320g compact area-imaging scanner offers aggressive scanning of all 1D, PDF and 2D barcodes in a lightweight, durable, and portable form factor. The scanner’s sleek and elegant design also blends seamlessly in retail environments, providing superior-performance scanning of all printed barcodes, and digital barcodes on any smart device. Replete with a 2-year warranty and a hardy seal rating of IP53, this scanner will fit into your retail or other hospitality business flow seamlessly and last for many seasons.
Features Reads standard 1D and 2D barcodes
IP53 Seal rating against dust and sprays of water
Optional models support Driver's License Parsing, OCR, and more
106 inch per second motion tolerance
Can be triggered remotely
Software packs available to enhance the functionality
Features
| Product Specifications | |
|---|---|
| Dimensions | 2.9 in x 2.0 in x 1.0 in (LxWxH) [73 mm x 51 mm x 26 mm] |
| Weight | 77 g (2.7 oz) |
| Interfaces Available | USB, RS-232 and Keyboard Wedge |
| Scan Method | Area Imager (838 x 640 pixel array) |
| Decoding Capabilities | Reads standard 1D, PDF, 2D, Postal and OCR symbologies. *Note: Decode capabilities dependent on kit configuration |
| Motion Tolerance | >270 cm/s (106 in/s) at focal point |
| Print Contrast (Min.) | 20% minimum reflectance difference |
| Indicators | LED and Audio confirmation |
| Auto Sense Mode | Yes |
| Image Capture | Yes |
| Mobile Phone Scanning Capabilities | Yes |
| Ambient Light (Max) | 100,000 lux |
| Drivers License Data Parsing | Options Available, or via Upgrade |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Warranty | 2 Years, with extensions available |
Honeywell Vuquest 3320G Reviews
Customer Reviews
| Downloads |
|---|
| 3320G Quick Start Guide |
| 3320G User Guide |
Recommended Models
Vuquest 3320g 2D Scanner USB Kit: PDF417, Black scanner (3320g-4), 2.9m (9.5ft) straight USB Type A, cable (52-52559-N-3-FR), documentation, EasyDL 2.0
$512.37 Add to Cart
Color:Black
Scanner Type:2D
Cable:USB Included
Vuquest 3320g 2D Scanner USB Kit: PDF417, black scanner (3320g-2), 2.9m (9.5ft) straight USB Type A, cable (52-52559-N-3-FR), documentation
$438.33 Add to Cart
Color:Black
Scanner Type:2D
Cable:USB Included
Vuquest 3320g 2D Scanner USB Kit: PDF417, ivory scanner (3320g-4), 2.9m (9.5ft) straight USB Type A, cable (52-52559-N-3-FR), documentation
$381.15 Add to Cart
Color:Ivory
Scanner Type:2D
Cable:USB Included
Additional Models
Vuquest 3320g 2D Scanner Only: PDF417, Extended Range, ivory scanner (3320g-4) RS232,USB,Key Board Wedge Interfaces, Cable not Included
$524.74 Add to Cart
Color:Ivory
Scanner Type:2D
Cable:Not Included
Vuquest 3320g 2D Scanner Only: PDF417, High Density Focus, ivory scanner (3320g-4) RS232,USB,Key Board Wedge Interfaces, Cable not Included
$410.90 Add to Cart
Color:Ivory
Scanner Type:2D
Cable:Not Included
Vuquest 3320g 2D Scanner Only: Black, RS232,USB,Key Board Wedge Interfaces, Cable not Included
$597.95 Add to Cart
Color:Black
Scanner Type:2D
Cable:Not Included
Vuquest 3320g 2D Scanner Only: PDF417, ivory scanner (3320g-4) RS232, USB, Key Board Wedge Interfaces, Cable not Included
$372.94 Add to Cart
Color:Ivory
Scanner Type:2D
Cable:Not Included
Accessories
Cable: USB, black, Type A, 5V, 2.9m (9.5/) straight
$17.82 Add to Cart
Cable: USB, black, Type A, 5V, 2.9m (9.5/) straight, External IO
$29.16 Add to Cart
Cable: RS232, black, DB9, 5V, 2.9m (9.5ft) straight
$17.29 Add to Cart
