Honeywell Vuquest

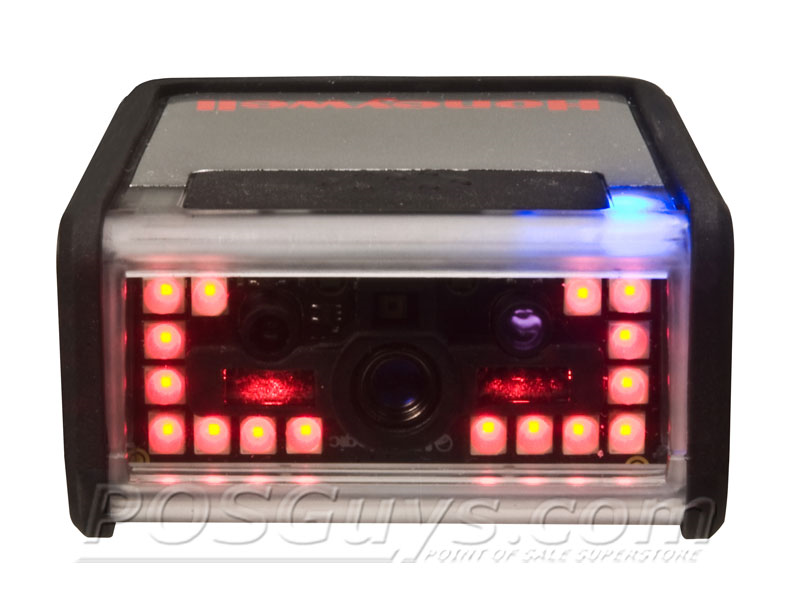

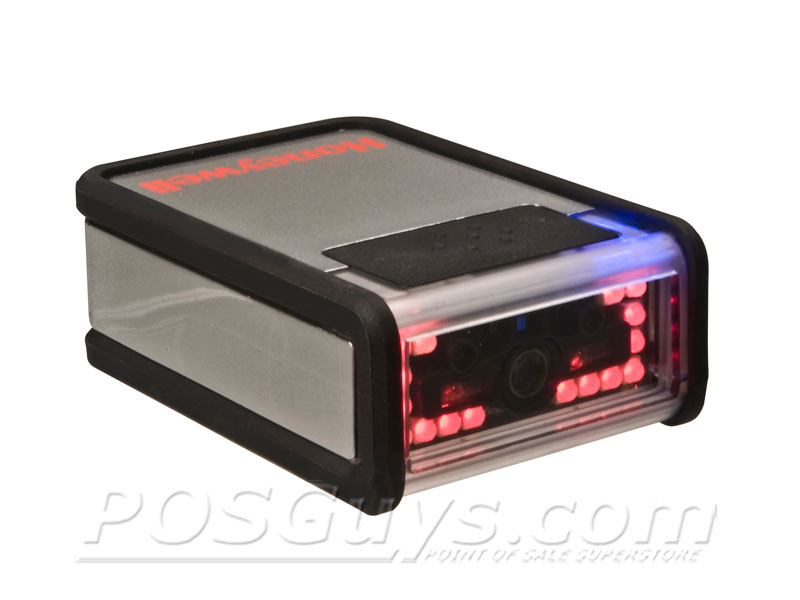

Vuquest Product Image

The pictures shown are general images for product Vuquest and may not be applicable to all part numbers

Vuquest Presentation Barcode Scanners


The Honeywell Vuquest has reached end of life. It has been replaced by the Honeywell Vuquest 3310g.

The Honeywell MS4980 Vuquest barcode scanner is a lightweight, small 2D presentation scanner, ideal for high volume locations needing additional scanning features, such as drivers license parsing. Small enough to fit in the palm of your hand, the MS4980 features a 1.2 megapixel CMOS sensor, allowing it to read 1D and 2D barcodes with ease. The high-speed imager can also capture high-resolution images, giving you a fast method to verify signatures, capture identification card data or read personal checks.

With an infrared barcode sensor and 11" scan range, the MS4980 Vuquest barcode scanner is an excellent addition for locations needing a variety of data capture methods. The Vuquest 4980 is compatible with optional EasyDL software for use parsing Drivers License.

Features
  • Small form factor, 1.9"W x 2.9"L x 1.0"H
  • 1.6" - 11.8" scan range for 13 mil 1D and 15 mil Data Matrix barcodes
  • USB, RS-232 Serial, PS/2 Keyboard Wedge interfaces available
  • 3 separate memory banks allows for configurations paired to specific interfaces
  • IP32 seal protects from dirt and splashes of water

    The Vuquest 4980 is discontinued.
    For a replacement scanner try the latest addition to the Vuquest line, the Honeywell Vuquest 3310g.

  • Product Specifications
    Dimensions 74 x 50 x 26 mm (2.9 x 1.9 x 1.0 in)
    Weight 70 g (2.5 oz)
    Color Options Silver with Black
    Interfaces Available USB
    RS232
    Keyboard Wedge
    Scan Method Area Imager
    Decoding Capabilities Reads standard 1D, PDF, 2D, Postal and OCR symbologies
    Mobility/Range Corded
    Motion Tolerance 100 cm/s (39½/s) for 13 mil UPC @ 13 cm (5½) distance
    Reading Angle Pitch: 70°
    Skew: 75°
    Typical Depth of Field 7.5 mil (1D): 88.9 – 180.3 mm (3.5 – 7.1 in)
    7.5 mil (DataMatrix): 78.7 - 200.7 mm (3.1 – 7.9 in)
    10.4 mil (1D): 78.7 – 248.9 mm (3.1 – 9.8 in)
    10 mil (DataMatrix): 90 mm - 215 mm (3.5½ – 8.5½)
    13 mil (1D): 40.6 mm – 299.7 mm (1.6½ – 11.8½)
    Indicators LED (Blue/White)
    Beep
    Auto Sense Mode Yes
    Image Capture No
    Mobile Phone Scanning Capabilites Yes
    Drivers License Data Parsing MK4980-30B41-12 Yes, On Select Models
    Operating Temperature 0°C to 40°C (32°F to 104°F)
    Storage Temperature -20°C to 70°C (-4°F to 158°F)
    Drop Specification Designed to withstand 1.5 m (5´) drops
    Environmental Sealing IP32
    Ambient Light (Max) 100,000 lux (9,290 foot-candles)
    Warranty 2 Year Manufacturer Warranty

    Honeywell Vuquest Reviews

    POSGuys Rating:

    The Vuquest 4980 is discontinued. For a similar scanner try the Vuquest 3310g.
