Symbol LS7808

The pictures shown are general images for product LS7808 and may not be applicable to all part numbers

LS7808 Presentation Barcode Scanners


The Symbol LS7808 has reached end of life. It has been replaced by the Symbol LS7708.

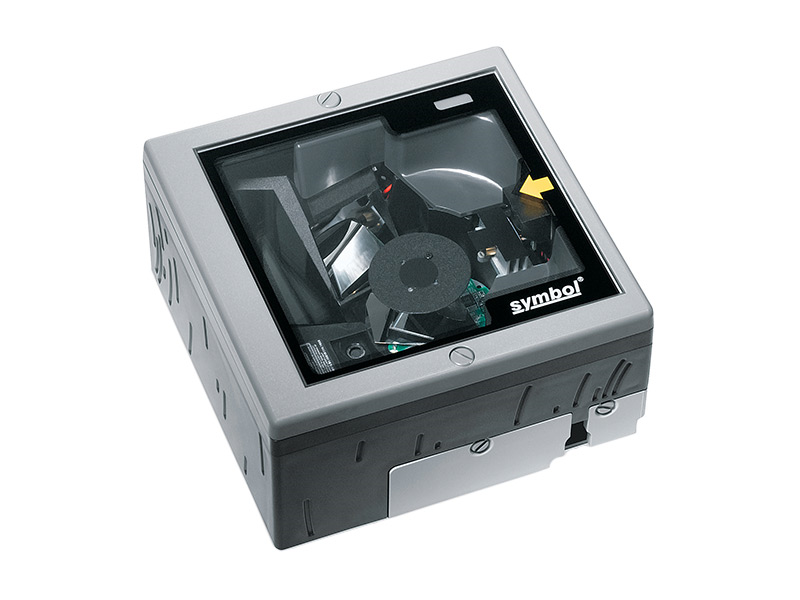

The Symbol LS7808 barcode scanner gives you the high-speed, in-counter performance you need at high value retailers such as department stores or hardware stores. With a durable design and Symbol's advanced scanning technology, the LS7808 will handle virtually any scanning scenario.

The LS7808 mounts into a counter or checkstand, giving you fast omnidirectional scanning without taking up vital counterspace. It reads 1D barcodes from contact to up to 7 inches away, and the 1,800 scans per second scanning speed ensures even quickly-moving barcodes are read.

In-counter scanners are known for their resilience, and the LS7808 is no exception. Available with your choice of Tin Oxide or Sapphire glass, the scanning window is remarkably scratch resistant and durable. The 5,500 RPM prism motor provides smooth operation for the life of the device. Shipping with a 3-year warranty standard, the Symbol LS7808 barcode scanner will give any high volume retailer many years of great service.

    Features
  • Contact to 7-inch scan range for standard retail barcodes

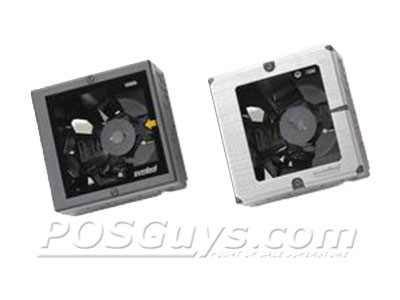

  • Tin Oxide or Sapphire glass
  • EAS support
  • 3-year warranty
Product Specifications
Dimensions 6 in. W x 6 in. L x 3.1 in. H
152 mm W x 152 mm L x 79 mm H
Weight 1.9 lbs/0.85 kg
Color Options Black
Gray
Interfaces Available Each Symbol LS7808 features on-board multiple interface supporting: RS-232C (Standard, Nixdorf, ICL, & Fujitsu), IBM 468X/469X, Keyboard Wedge, USB (Standard, IBM SurePOS, Mac), Synapse (allows connectivity to all of the above plus many non-standard interfaces)
Scan Method Laser Omni-Directional Scanner
Decoding Capabilities Standard 1D Barcodes
Decoding Capabilities UPC-A, UPC-E, UPC-E1, EAN 8/13, JAN 8/13, UPC/EAN with Supplementals,Code 39, Code 39 Full ASCII, Interleaved 2 of 5, Discrete 2 of 5, Code 128, UCC/ EAN 128, ISBT 128, Codabar/NW7, Code 93, Code 11, RSS Variants
Scan Rate (Maximum) 1,800 scan lines per second
Typical Depth of Field 5 mil: (38%) 0 in - 0.5 in (1.25 cm - 6.4 cm)
7.8 mil: (60%) 0 - 4.0 in (0 -12.7 cm)
10.4 mil: (80%) 0 - 5 in (0 -19.0 cm)
13 mil: (100%) 0 - 7 in (0 - 25.4 cm)
Indicators LED
Beep
Auto Sense Mode Yes
Operating Temperature 32° to 104°
Storage Temperature -40° to 140°
Ambient Light (Max) Fluorescent, Incandescent, Mercury Vapor and Sodium Vapor: 450 Ft Candles (4,844 Lux)
Sunlight: 8000 Ft Candles (86,111 Lux)
Warranty 3 Years
