PAX Technology A920
The pictures shown are general images for product A920 and may not be applicable to all part numbers
A920 Payment Terminals
All payment devices require encryption & key injection for use in point of sale software. This service is NOT INCLUDED in price. Please visit our Credit Card Processing Page or call for more information
The A920 combines the full features of an Android tablet with a powerful payment terminal, all in a sleek and compact design. The A920 delivers an integrated camera, high-speed thermal printer, and high-capacity battery to meet the daily demands across all dynamic Retail or Hospitality environments.
Features
- 5" Capacitive Touch Screen
- 4G + WiFi (2.4GHz, optional 5GHz) + Bluetooth 4.0 + GPS

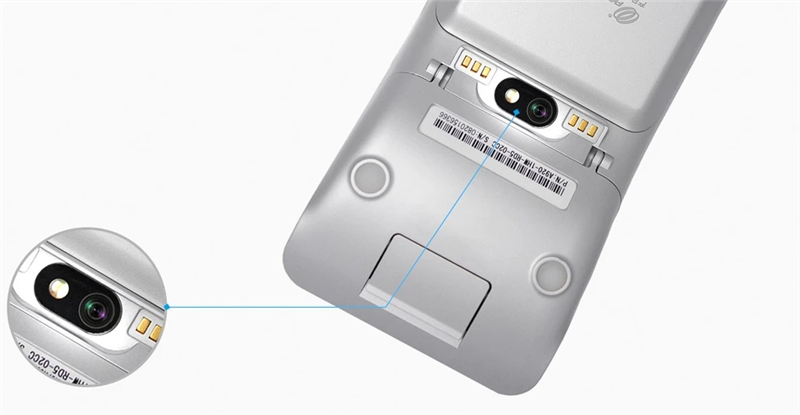

- Front (0.3MP)& Rear (5MP) Cameras
- NFC/contactless-enabled to support electronic wallets
- PCI PTS 5.x SRED
- Powered by Android 7.1

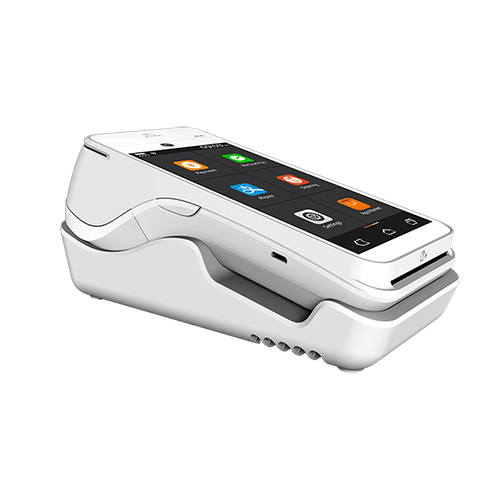

- Optional Docking Station
- PIN on glass
Encrypted payment terminals with must be purchased in partnership with a merchant account provider. To learn more, visit our Credit Card Processing Page or call our team at 1-800-903-6571.
Want to Make Credit Processing Simple? We Can Do That.
Credit card processing can be confusing. We make it easy. We'll make sure you understand exactly what you're signing up for because we believe you deserve to make an informed decision. We don't try to push you into a payment processing service that doesn't fit your needs or costs more than it should.
Product Specifications | |
---|---|
What’s in the Box | A920 Smart Terminal, Paper Roll, Power Cable, Power Adapter |
Operating Systems | Paydroid Powered by Android 7.1 |
Processor (Android) | Cortex A7 + ARM |
Memory (RAM/Flash) | 8GB eMMC Flash + 1GB DDR RAM | Optional: 16GB eMMC Flash + 2GB DDR RAM Extended Micro SD card slot up to 128GB (OS 7.1) or 32GB (OS 5.1) |
Camera | 5MP Rear-Facing + 0.3MP Front Facing |
Display Touchscreen | 5'' IPS WXGA 720 x 1280 Pixels Multi-Point Capacitive HD Touch Screen |
Receipt Printer | 40 lines/sec | Paper roll outer diameter: 40mm |
IO Ports | 1 Micro USB OTG | 6 PIN POGO PIN |
Certifications | PCI PTS 5.x SRED | EMV L1 & L2 | EMV Contactless L1 | Visa payWave | MasterCard Contactless | UPI qUICS | Amex ExpressPay | Discover D-PAS | JCB J/Speedy | Interac Flash | MasterCard TQM | Common.SECC UKCC | CE | RoHs | ATEX |
Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) Operating Temperature -20°C ~ 70°C (-4°F ~ 158°F) Storage Temperature 5% ~ 96% Relative Humidity, Non-Condensing |
Downloads |
---|
Blank VAR Sheet |
Pax A920 Spec Sheet |
