AML Firebird Self-Service Kiosk
The pictures shown are general images for product Firebird Self-Service Kiosk and may not be applicable to all part numbers







Firebird Self-Service Kiosk POS Computers
The Firebird Enterprise Kiosk is an all-in-one Android computer with integrated barcode scanning. Designed for a variety of applications in retail, commercial, and light industrial settings, smaller build of this kiosk gives users the flexibility to set up the kiosk in multiple locations throughout the facility for any application. Applications might include price checking, time clock, access control, labor tracking, and much more. Featuring a 7-inch capacitive touchscreen display, the Firebird can be powered with a PoE (Power Over Ethernet) connection, simplifying installation and deployment. Internal USB ports support the addition of label and tag printers, as well as card readers and biometric devices.
The kiosk also features an RGB LED light bar for device and scan status visual feedback. Firebird is powered by Android 8.1 running on an ARM octa-core processor at 1.8 GHz. Using consumer-grade devices becomes a financial headache for businesses in the long run as the cost to repair or replace parts isn’t cost-effective. Firebird was built with commercial-grade components made to withstand long-term continuous usage. At its core, the main functionality of Firebird is to act as a standalone stationary computer equipped with a 2D omnidirectional scan engine. This stationary kiosk is useful in many scenarios including scanning badges, gift cards, products, raw materials, and even tools used in the workplace. The optional camera also gives employees to interact with a camera for video or photographing purposes.
Product Specifications | |
---|---|
Dimensions (W x H x D) | 212mm W x 142mm H x 33mm D 8.3" W x 5.7" H x 1.3" D |
Weight | 1.25 lbs / 0.57 kg |
Display | 7" LCD, 720 x 1280 resolution Projective Capacitive Multi-touch |
Power | 5VDC, PoE (802.3af and 802.3at) |

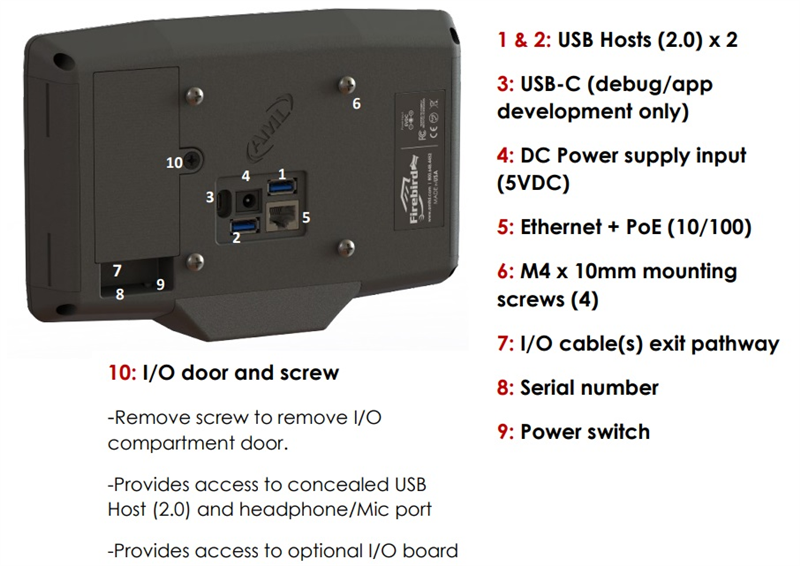

IO Ports | DC Input (5V)
Ethernet+PoE (10/100)
USB Host (2.0) x 3
USB Type C (for Debug/App Development) RS232 Port Optional |
Audio | Dual 2W Speaker (landscape mode) Single Speaker (portrait mode) Headphone/Mic port (3.5mm standard CTIA Phone Jack) |
Processor | Octa-Core 64-bit Arm Cortex 1.8 GHz |
Operating Systems | Android™ 8.1 (Oreo) |
Memory | 2GB LPDDR3 SDRAM |
Storage | 32GB eMMC |
Camera | Optional - 13MP, 74.4 degrees, with Autofocus |
WLAN | 802.11a/b/g/n/ac Dual Band (2.4 GHz / 5 GHz), 2X2 MIMO |
