AML Monarch+ Self Service Kiosk

The pictures shown are general images for product Monarch+ Self Service Kiosk and may not be applicable to all part numbers





Monarch+ Self Service Kiosk POS Computers
The Monarch+ combines the power of an all-in-one computer with a barcode-scanning kiosk. Developed as a built-for-purpose device and engineered with industrial-grade components, the Monarch+ is a self-service kiosk that outlasts and outperforms consumer-grade devices deployed in environments ranging from retail stores to warehouse/manufacturing floors. An integrated barcode scanner comes standard on all models and optional accessories for integrated receipt printers, EMV/MSR card readers, and mounting brackets ensure you'll be able to configure this device for any self-service application.
Utilizing x86-64 architecture, the Monarch+ can run Windows 10 or Linux operating systems. The sleek design and capacitive touchscreen help facilitate an intuitive experience for any user. Power can be supplied over a PoE+ equipped network, eliminating the restriction of having to place the device near a wall outlet.
The Monarch is designed to run any Windows-Based kiosk application. Don't have kiosk-focused software? AML offers a ready-made software called StoreScan.
Uses for Any Application
Retail

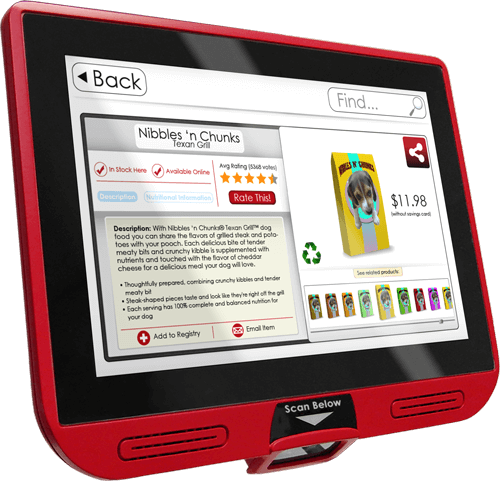

Allow users to verify a price is easily done when the Monarch+ is running AML’s StoreScan™ software. Other useful applications include being able to check the balance on a gift card, locate a product in the store, check loyalty points, or even make a purchase.
Commercial
Ideal for any check-in/check-out application like tool cribs and file rooms. It also makes the ideal way-finder for a busy lobby or a self-service kiosk for rental agreements and employment applications. We've also seen this solution used in self-check-in portals for a day care, health club, or seminars.
Hospitality
The Monarch+’s small form-factor and PoE+ capability make it ideal for deploying multiple devices across large venues. Whether the need is to check the balance on a player card, buy electronic tickets to a show or play, or act as a self-service concierge.
Industrial

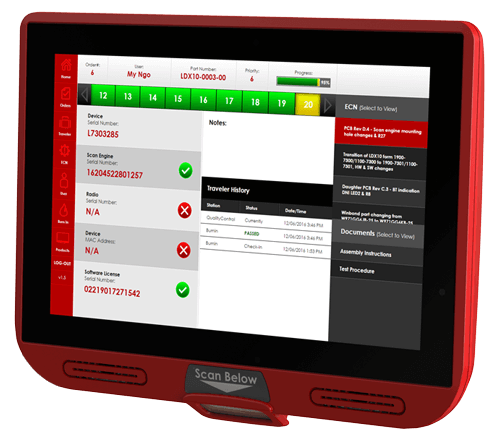

Using PCs and tablets on a shop floor is a recipe for disaster. But the Monarch+ enterprise self-service kiosk is designed to be safely mounted on a wall, pole or table. From there it can act as a time clock or host software for tracking labor or work-in-process inventory. Worried about bumps and bruises? The Monarch-PE has a stainless steel “wrap” available to protect the kiosk from mishaps.
Product Specifications | |
---|---|
Dimensions (W x H x D) | 267mm W x 211mm H x 47mm D / 10.5″ W x 8.3″ H x 1.9″ D |
Weight | 2.15 lbs / 0.98 kg |
Operating Systems | Windows™ 10, Linux |
Processor | Intel© Atom™ x5-E3940 1.6GHz Quad Core Processor |
Memory (RAM) | 4GB DDR3L 1867 MT/s |
Display | 10.1″ LCD, 1280 x 800 resolution IPS Projective Capacitive Multi-touch |
Speakers | Stereo 3W |
Power | 5VDC, PoE+ (802.3at) |
WLAN | Optional: Wi-Fi 6 (802.11ax) 2X2 BT Smart-Ready 5.2 |
Operating Temperature | 0° to 40° C / 32° to 104° F |

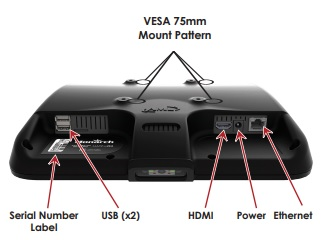

MOUNTING: | VESA 75mm standard mount pattern |
Receipt Printer | OPTIONAL: 2.25" (58mm)W x 1.25" OD (31.75mm) |
Storage | 128GB SSD |
