Custom America Peak Android

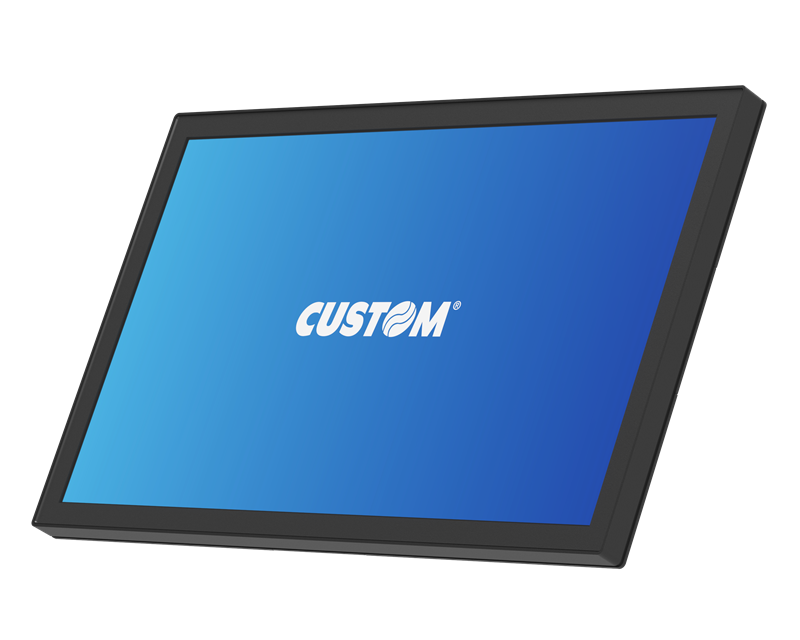

The pictures shown are general images for product Peak Android and may not be applicable to all part numbers

Peak Android POS Computers


The commercial-grade and highly versatile Peak Android Touch Computer provides flexibility and performance to fit any use case. Available in 15.6-inch and 21.5-inch sizes and featuring an assortment of optional peripherals, stands and mounts, the Peak can be transformed to fit any use case: POS, Self-Service, Price Checker, Endless Aisle Station, Kitchen Display System, or Digital Signage. Powered by a long-life Qualcomm SDA660 chipset and backed by Custom’s three-year warranty, the Peak is built to provide longevity and reliability for any environment.

Note, Stand Purchased Separately.

Highlighted Features

  1. Modular Design
    Slim and sleek and featuring an assortment of bezel-attached peripherals, the Peak Android is designed to fit any industry: Retail, Restaurant, Entertainment, Aviation, Lottery, Gaming, Betting and Warehouse
  2. Commercial-Grade Performance
    Equipped with Android 12 and a long-life Qualcomm SDA660 chipset, the Peak delivers secure and reliable performance for all your applications ®
  3. Extreme Versatility
    The Peak can be adapted to any touchpoint requirement. Leverage its extensive I/O and transform it into a robust countertop POS system. Mount it on one of Custom’s Connect kiosk stands and you have an instant self-service device. Affix it to the wall or shelf and deploy it as a price checker, endless aisle station or kitchen display system
  4. Simplified Serviceability and Deployment
    Ruggedized for Retail, the Peak features a removable compute box that simplifies maintenance and future expansion. An optional Power over Ethernet (POE) module reduces installation to a single cable
  5. MDM Ready
    The Peak is certified by leading MDM providers making it an easy device to add and manage within your fleet
Markets
  • Retail
  • Hospitality
  • Grocery
  • C-Store
  • Entertainment
  • Self-Payment and Kiosk
  • Gaming, Lottery and Betting
  • Parking
  • Aviation
Accessories
  • NFC reader (Android/Windows)
  • 2D Scanner
  • 5M Webcam
  • Fingerprint reader
  • LED light Bar
  • Terminal Stand (hinge)

Note, Stand Purchased Separately.

Product Specifications
Processor Qualcomm® SDA660
Memory 4GB LPDDR4
Storage 64GB eMMC
Supported OS Android 12.0
I/O
  • 2x USB-A 3.0
  • 2x USB-A 2.0
  • 1x USB-C 3.0 (data only)
  • 4x micro-USB 2.0 (bezel)
  • 2x DB9 (powered RS232)
  • 1x RJ45
  • 1x RJ11
  • 1x FeDP
  • 1x 4PIN (w/latch)
  • Power Over Ethernet POE module 802.3bt Type 3 (up to 60W) (Premium Model)
    Wireless LAN+BT WiFi5+BT4.1
    Size and Resolution Peak Android 15.6-inch
  • 15.6" (1920x1080)
  • Peak Android 21.5-inch
  • 21.5" (1920x1080)
  • Touch Technology True-Flat PCAP multi-touch
    Brightness Peak Android 15.6-inch
  • 300 NITS
  • Peak Android 21.5-inch
  • 250 NITS
  • Speaker 1x3W
    Power Supply 65W/19V
    EMC and Safety FCC Class A, CE Mark Class A, LVD
    Operating Temp. 0°C ~ 35°C (32°F ~ 95°F)
    Storage Temp. -20°C ~ 60°C (-4°F ~ 140°F)
    Humidity 20% ~ 85% RH non-condensing
    Dimensions Peak Android 15.6-inch
  • 370 mm (W) x 235 mm (H) x 42 mm (D)
  • Peak Android 21.5-inch
  • 518 mm (W) x 310 mm (H) x 49.3 mm (D)
  • Weight Peak Android 15.6-inch
  • 3.0 kg
  • Peak Android 21.5-inch
  • 5.3 kg
  • VESA Mount 75x75mm and 100x100mm
