Custom America Peak Windows 21"

The pictures shown are general images for product Peak Windows 21" and may not be applicable to all part numbers

Buy it now
Lifetime Support
15 Day Return Period
Peak Windows 21" Features
Windows 11
Windows 10
16:9 Ratio

Peak Windows 21" POS Computers


The commercial-grade and highly versatile Peak Windows Touch Computer provides flexibility and performance to fit any use case. Available in a 21.5-inch size and featuring an assortment of optional peripherals, stands and mounts, the Peak can be transformed to fit any use case: POS, Self-Service, Price Checker, Endless Aisle Station, Kitchen Display System, or Digital Signage. Powered by a long-life 11 generation Intel processor and backed by Custom’s three-year warranty, the Peak is built to provide longevity and reliability for any environment.

Note, Stand Purchased Separately.

Characteristics
  1. Modular Design
    Slim and sleek and featuring an assortment of bezel-attached peripherals, the Peak Windows is designed to fit any industry: Retail, Restaurant, Entertainment, Aviation, Lottery, Gaming, Betting and Warehouse
  2. Commercial-Grade Performance
    Equipped with a long-life 11 generation Intel processor, the Peak delivers secure and reliable performance for all your applications
  3. Designed for Retail
    Ruggedized for Retail, the Peak features a host of retail-specific ports providing extensive device and network connectivity
  4. Extensive OS Support
    Choose from Windows 10 IoT, Windows 11 Pro and Windows 11 IoT (when released) operating systems. For added flexibility, the Peak is also available in a no OS configuration enabling you to load the Linux build that best suits your environment
Markets
  • Retail
  • Hospitality
  • Grocery
  • C-Store
  • Entertainment
  • Self-Payment and Kiosk
  • Gaming, Lottery and Betting
  • Parking
  • Aviation
Accessories
  • NFC reader (Android/Windows)
  • 2D Scanner
  • 5M Webcam
  • Fingerprint reader
  • LED light Bar
  • Terminal Stand (hinge)

Note, Stand Purchased Separately.

Product Specifications
Processor Intel® Core i5-1145G7E
Memory 8GB DDR4 (Standard Model)/16GB DDR4 (Premium Model)
Storage Windows 10 IoT, Windows 11 Pro, Windows 11 IoT (when released), Linux

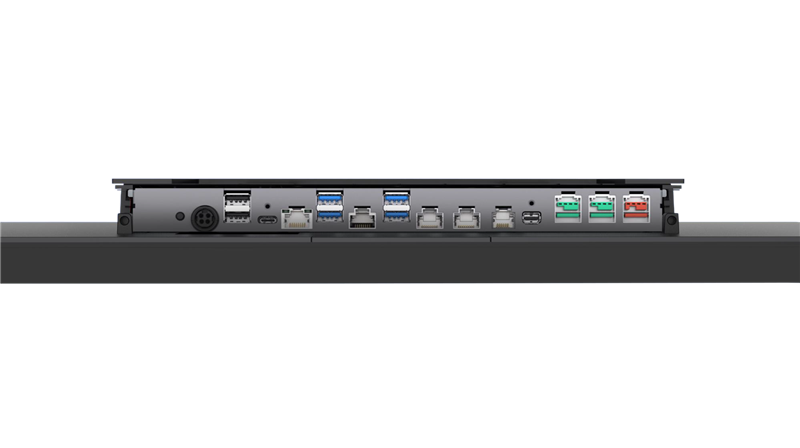

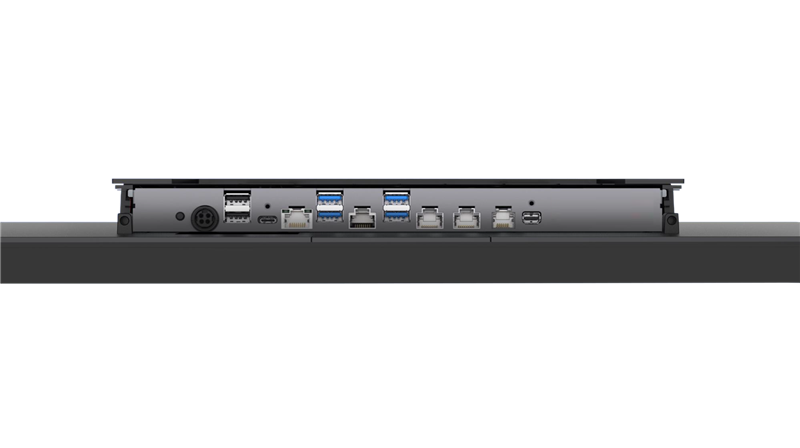

I/O
  • 4x USB-A 3.0
  • 2x USB-A 2.0
  • 1x USB-C 3.0
  • 4x micro-USB 2.0 (bezel)
  • 3x RJ48 (w/ 2x RJ48 to DB9 cables)
  • 1x RJ45
  • 1x RJ11
  • 1x FeDP
  • 1x 4PIN (w/ latch)
  • Powered USB
  • 2x Powered USB 12V (Premium Model)
  • 1x Powered USB 24V (Premium Model)
  • Wireless LAN+BT WiFi6+BT5.2 (M.2) (Standard and Premium Models)
    Size and Resolution 21.5" (1920x1080)
    Touch Technology True-Flat PCAP multi-touch
    Brightness 250 NITS
    Speaker 1x3W
    Power Supply 120W/19V
    EMC and Safety FCC Class A, CE Mark Class A, LVD
    Operating Temp. 0°C ~ 35°C (32°F ~ 95°F)
    Storage Temp. -20°C ~ 60°C (-4°F ~ 140°F)
    Humidity 20% ~ 85% RH non-condensing
    Dimensions 518 mm (W) x 310 mm (H) x 49.3 mm (D)
    Weight 5.3 kg

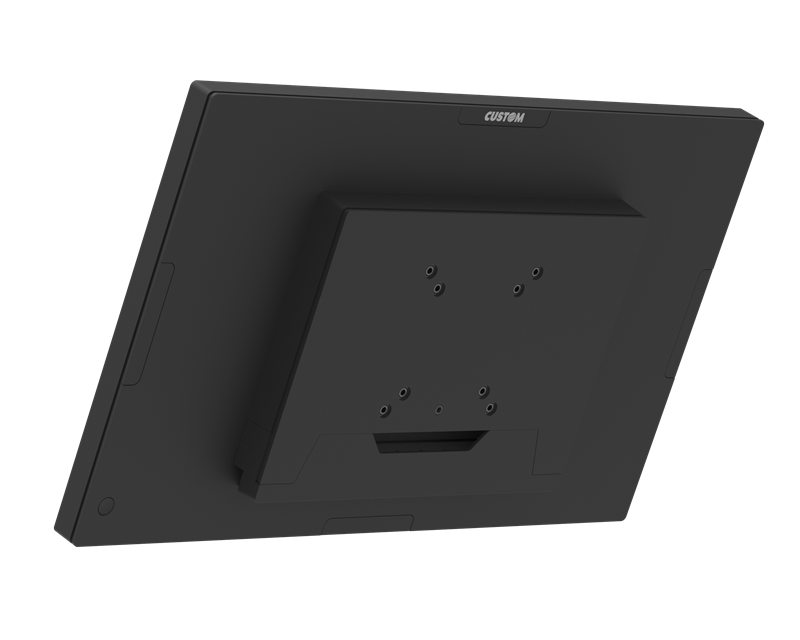

    VESA Mount 75x75mm and 100x100mm

    Custom America Peak Windows 21" Reviews

    POSGuys Rating: Not Rated

    Customer Reviews

    Downloads
    Peak Spec Sheet

    Recommended Models

    Peak 21.5" POS Touch Computer. Widescreen. i5 1145G7E Processor, 8GB RAM, 256GB, LAN, WiFi, BT. Win 10 IoT. Stand Not Included - Order Separately.
    $2197.13 Add to Cart
    RAM:8GB
    Connectivity:LAN, WiFi & Bluetooth
    Windows Version:Win 10 IoT
    Peak 21.5" POS Touch Computer. Widescreen. i5 1145G7E Processor, 8GB RAM, 256GB, LAN, WiFi, BT. Win 11 Pro. Stand Not Included - Order Separately.
    $2300.63 Add to Cart
    RAM:8GB
    Connectivity:LAN, WiFi & Bluetooth
    Windows Version:Win 11 Pro
    Peak 21.5" POS Touch Computer. Widescreen. i5 1145G7E Processor, 8GB RAM, 256GB, LAN Only. Win 10 IoT. Stand Not Included - Order Separately.
    $2152.13 Add to Cart
    RAM:8GB
    Connectivity:LAN Only
    Windows Version:Win 10 IoT
    Peak 21.5" POS Touch Computer. Widescreen. i5 1145G7E Processor, 8GB RAM, 256GB, LAN Only. Win 11 Pro. Stand Not Included - Order Separately.
    $2255.64 Add to Cart
    RAM:8GB
    Connectivity:LAN Only
    Windows Version:Win 11 Pro

    Additional Models

    Peak 21.5" POS Touch Computer. Widescreen. i5 1145G7E Processor. 8GB RAM, 256GB, LAN, WiFi, BT. No OS. Stand Not Included - Order Separately.
    $2030.63 Add to Cart
    RAM:8GB
    Connectivity:LAN, WiFi & Bluetooth
    Windows Version:No OS
    Peak 21.5" POS Touch Computer. Widescreen. i5 1145G7E Processor. 16GB RAM, 256GB, LAN, WiFi, BT, PUSB. No OS. Stand Not Included - Order Separately.
    $2165.63 Add to Cart
    RAM:16GB
    Connectivity:LAN, WiFi, Bluetooth & Powered USB
    Windows Version:No OS
    Peak 21.5" POS Touch Computer. Widescreen. i5 1145G7E Processor, 16GB RAM, 256GB, LAN, WiFi, BT, PUSB. Win 10 IoT. Stand Not Included - Order Separately.
    $2332.13 Add to Cart
    RAM:16GB
    Connectivity:LAN, WiFi, Bluetooth & Powered USB
    Windows Version:Win 10 IoT
    Peak 21.5" POS Touch Computer. Widescreen. i5 1145G7E Processor, 16GB, 256GB, LAN, WiFi, BT, PUSB. Win 11 Pro. Stand Not Included - Order Separately.
    $2435.63 Add to Cart
    RAM:16GB
    Connectivity:LAN, WiFi, Bluetooth & Powered USB
    Windows Version:Win 11 Pro
    Peak 21.5" POS Touch Computer. Widescreen. i5 1145G7E Processor, 8GB RAM, 256GB, LAN. No OS. Stand Not Included - Order Separately.
    $1985.64 Add to Cart
    RAM:8GB
    Connectivity:LAN Only
    Windows Version:No OS

    Accessories

    11.6" Touch LCD Rear Display for Custom America Ascent & Peak All-In-Ones.
    Led Light Bar for Peak Terminal
    Finger Print Reader for Peak Terminal
    2D Scanner for Peak Terminal
    5M Webcam with Mic for Peak Terminal
    NFC Reader for Peak Terminal (Android/Windows)
    HDMI Adapter Cable for Peak Terminal
    POS Terminal Stand for Peak Terminal
