Elo TouchSystems C Series All-in-One

C Series All-in-One POS Computers


The Elo TouchSystems C Series All-in-One has reached end of life. It has been replaced by the Elo TouchSystems X-Series - 20 Inch Widescreen.

The Elo C Seriers Rev.B touch computer offers a stylish bezel free design and powerful Intel Core-i3 or Core i5 processor. Internal cable management keeps work stations neat and tidy and the full range of connectivity ports allow businesses to plug in peripheral devices as required.

Elo's highly ruggedized touch screen all in one fanned computers come in both a 19" and 22" size. Choose between the resistive AccuTouch screen, best for hospitality, or the sleek appearance capacitive iTouch Plus screen to best suit your businesses needs. Featuring a 3 year warranty and optional advance unit replacement program the 19C3 will provide years of reliable service.

  • 19" or 22" 16:9 High Definition Widescreen Display
  • Excellent Cable Management
  • Energy Star 5.2 Certified
  • Optional iTouch (multi-touch surface acoustic wave) Capacitive Touch Technology
  • Optional AccuTouch "no-bezel" Resistive Touch Technology
Product Specifications
Color Options Dark Grey
Memory 2GB Low-Profile DDR2 DIMM on 1 of 1 slot - (Replaceable with 4GB max2 on 1 slot)
Processor Intel Core i3
Intel Core i5
Hard Drive 160GB 2.5" SATA HDD
Operating System Windows 7 Pro SP1 (64-bit)
Windows 8.1 Industry Embedded Pro (64-bit)

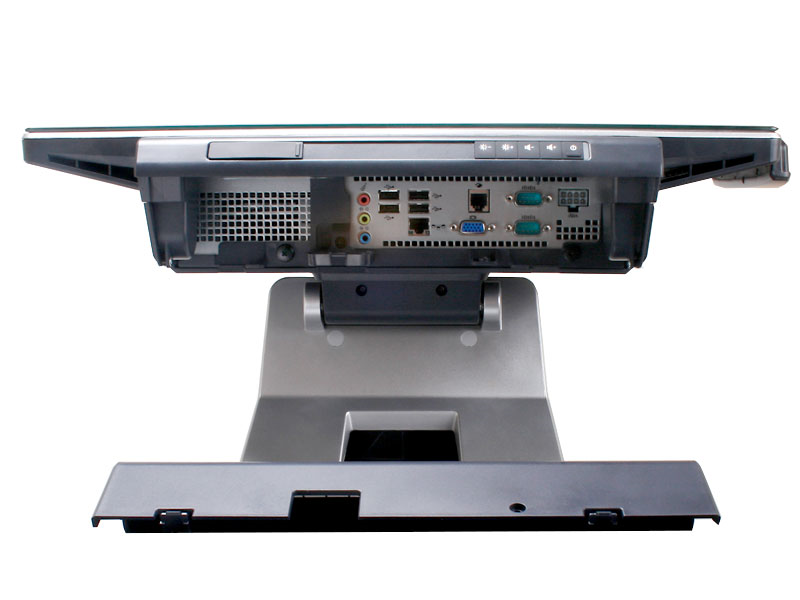

Ports 6 USB 2.0
2 USB-to-Serial RS-232
Optional Parallel
1 LAN RJ45 (Gigabit)
Optional Cash Drawer Kit Available
Optional 2nd VGA Port Expansion Card
1 line-in, 1 line-out, 1 mic-in (Audio Ports)
Video Intel GMA X4500
Display Type 18.5"or 21.2" Diagonal, Active Matrix TFT LCD
Screen AccuTouch (Zero Bezel Resistive)
IntelliTouch (Multi-Touch Surface Acoustic Wave)
iTouch (Zero Bezel Surface Acoustic Wave)
Style Desktop
Aspect Ratio 16:9 Wide
Brightness LCD Panel: 250 nits
AccuTouch: 200 nits
iTouch: 225 nits
IntelliTouch Plus: 225 nits
Optimal Resolution 1366 x 768 @ 60Hz
Weight With Stand: 20.6lbs (9.3kg)
Bezel Zero Bezel On iTouch and AccuTouch Models
Colors 16.7 Million
Dimensions 19" With Stand: 18.7" x 14.9" x 8.9" (475mm x 380mm x 226mm)
22" With Stand: 21.2” x 15.3” x 8.9” (539.8mm x 388.8mm x 226.1mm)
Mounting Options 100 mm VESA Mount
Mounting Options 100 mm VESA Mount
Power Supply External 12VDC universal-type power supply brick
AC input voltage: 100-240VAC
Input frequency: 50-60Hz
Max output power: 150W (Max. draw: 170W)
Speakers Two 2W Internal Speakers
Optional Peripherals Rear Customer Display VFD
Finger Print Reader
Webcam
Magnetic Stripe Reader
Warranty 3 Year
Return Policy 20 Days
