Elo TouchSystems E-Series 2

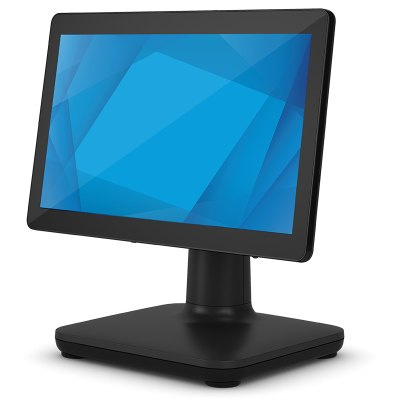

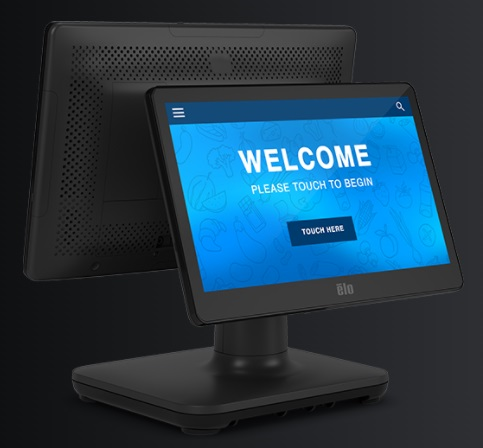

The pictures shown are general images for product E-Series 2 and may not be applicable to all part numbers
E-Series 2 POS Computers
This product replaces the older Elo TouchSystems 15" E-Series 15E2.

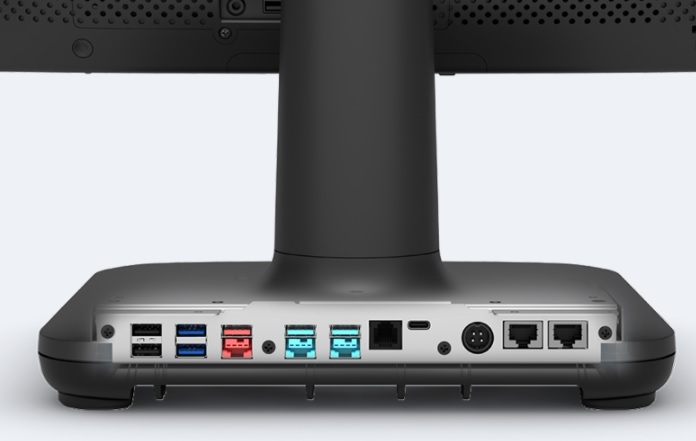

Purpose-built for point of sale, the E-Series 2 offers a 15.6-inch touchscreen display, Intel’s 8th generation Celeron processor and an integrated expansion hub to connect the peripherals you need. Integrated into the base of the stand is an expansion hub that allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices — there is connectivity to cover it all.
The E-Series 2 utilizes the reliability-tested performance and security of Intel’s 9th Generation processors, integrated Trusted Platform Modules and the Windows 10 operating system. For added flexibility, the E-Series 2 offers models with no OS - all pretested with Linux SuSE, Ubuntu and Red Hat operating systems, providing businesses the best solution for their environment.
What's in the Box
- E-Series 2
- North America Power Cord
- EU Power Cord
- Power Adapter – 180W
- Cable Management Kit
- Quick Installation Guide (QIG)
| Product Specifications | |
|---|---|
| Display Resolution | 1366 x 768 @ 60Hz |
| Aspect Ratio | 16:9 (standard) |
| Touch Technology | TouchPro® PCAP with up to 10 touches |
| Processor | Intel® Celeron® Processor J4125 (4M Cache, up to 2.7 GHz) |
| Memory (RAM) | 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 8GB) |
| USB | 3 x USB 3.0 (1 on display head, 2 on I/O); 2 x USB 2.0 on I/O; 4 x Micro USB 2.0 on edges for optional Elo peripherals. |
| Network/Ethernet | 1 x LAN RJ45 (Gigabit) |
| Cash Drawer Port | 12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by internal switch) |
| Power | External USB-C power supply brick; AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; Maximum output power: 180W |
| Dimensions (L x W x H): | 15.2" x 14.54" x 8.71" / 386.2 mm x 369.3 mm x 221.2 mm |
| Shipping Dimensions | 18.19" x 11.77" x 18.5" / 462 mm x 299 mm x 470 mm |
| Weight | Unpackaged: 10.4 lbs / 4.7 kg / Packaged: 15.2 lbs / 6.9 kg |
| Temperature | Operating: 0°C to 35°C (32°F to 95°F); Storage: -20°C to 60°C (-4°F to 140°F) |
| MTBF | 50,000 hours demonstrated |
| MOUNTING: | 75mm VESA mount |
| Warranty | 3-year warranty |
