E-Series 3 POS Computers
E-Series 3 with Intel Touchscreen Computer.
Purpose-built for point of sale, the E-Series 3 offers a 15.6-inch touchscreen display, powerful Intel processor and integrated connectivity for all the peripherals you need. From cash drawers and printers to barcode scanners and payment devices - there is connectivity to cover it all.

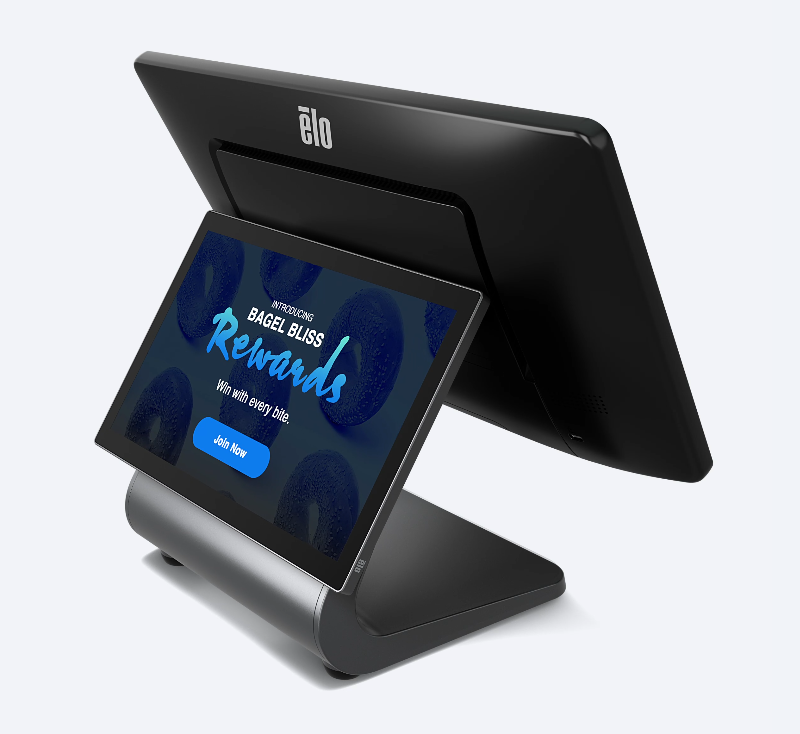

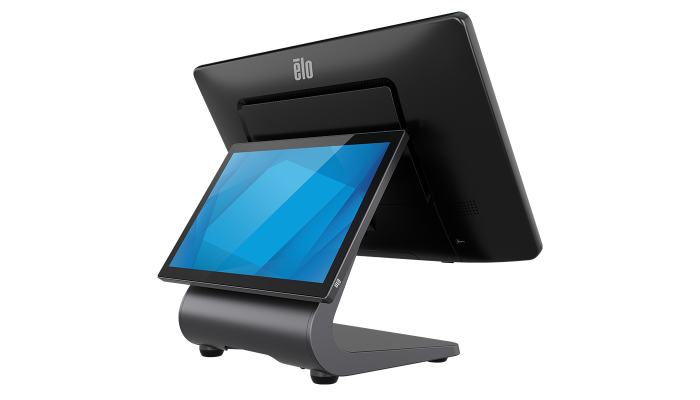

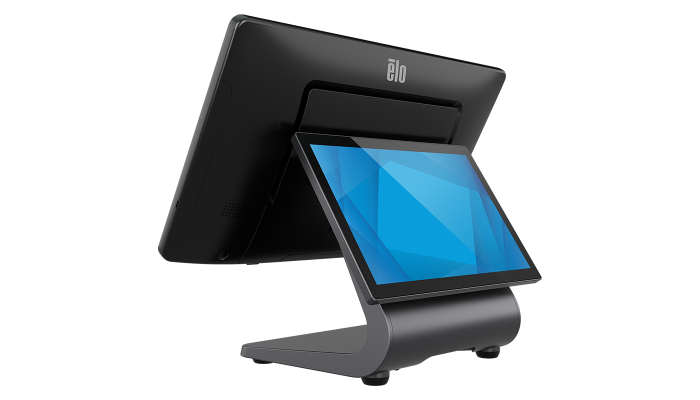

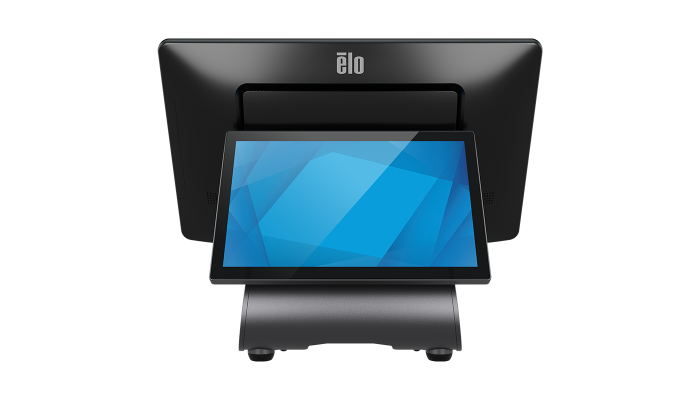

Add a customer-facing display.
The E-Series 3 includes USB-C connectivity, allowing you to easily connect a customer-facing display - providing touch, data and power with just one cable.

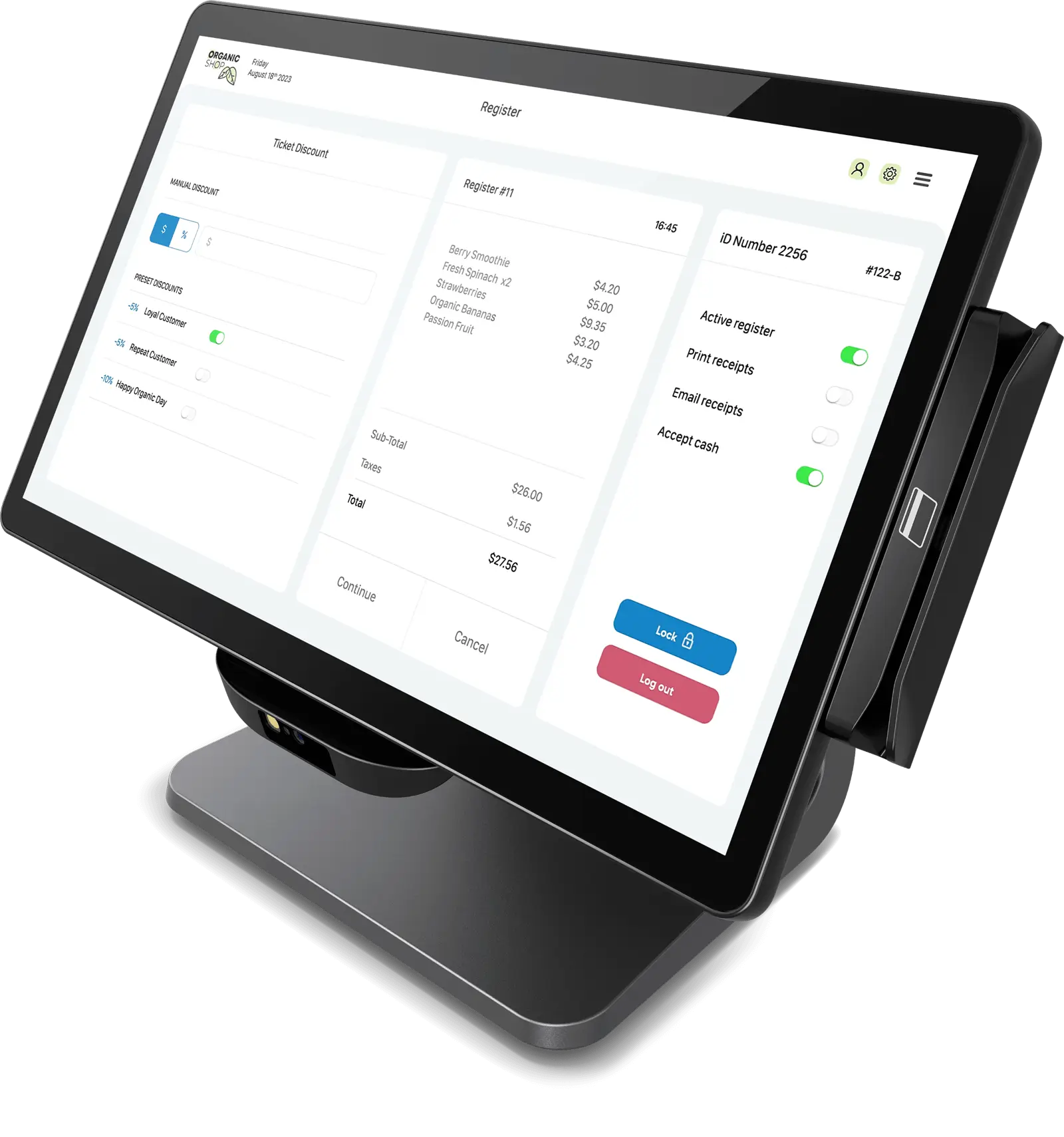

Expand with Elo Edge Connect.
Seamlessly attach up to two peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

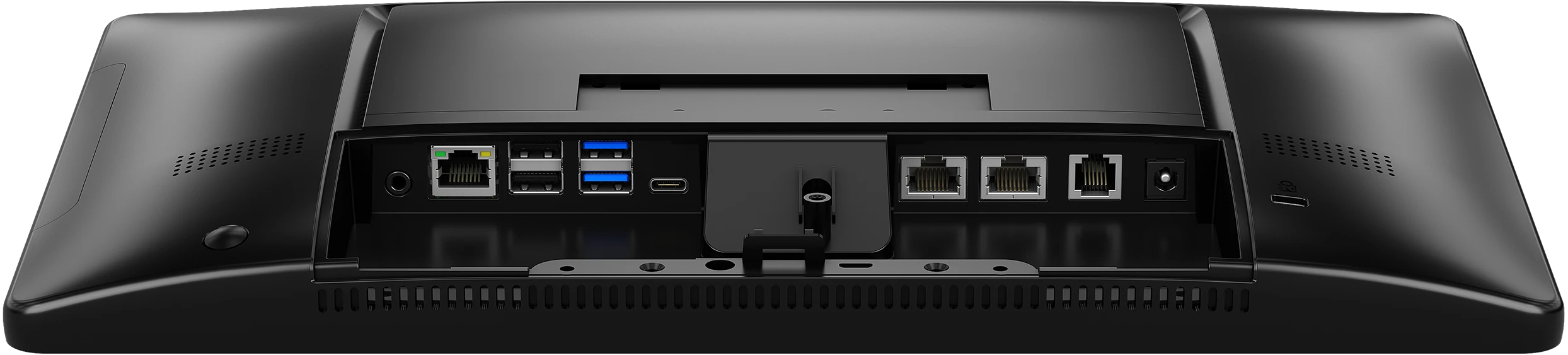

Enhanced connectivity for all your accessories.
- Chemically Strengthened Glass
- IP54 Rating
- 50,000 MTBF
- Chemically Strengthened Glass
- IP54 Rating
- 50,000 MTBF
Support for Linux
For added flexibility, the E-Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
Quality that is built to last.
Elo Engineers each product with a goal that goes beyond meeting expectations; we aim to exceed them. By integrating our technology into your operations, you are partnering with us - and as your partner, we are committed to delivering reliable products so you can focus on growth and innovation, confident in the knowledge that we stand behind our products, ready to support you every step of the way.
| Product Specifications | |
|---|---|
| Enclosure Color | Black |
| Active Display Area (W x H) | 13.55" x 7.62" / 344.2mm x 193.5mm |
| Display | 15.6" / 396.24 mm diagonal, active matrix TFT LED LCD |
| Touch Technologies | TouchPro® PCAP with up to 10 touches |
| Aspect Ratio | 1920 x 1080 @ 60Hz |
| Number of Colors | 262k |
| Brightness (typical) | LCD panel: 200 nits, TouchPro PCAP: 170 nits |
| Viewing Angle (typical) | Horizontal: 89°/89° or 178° total / Vertical: 89°/89° or 178° total |
| Contrast Ratio (typical) | 500:1 |
| Response Time Total (typical) | 25 msec |
| Processor | Intel Processor N97 (6M Smart Cache, up to 3.60 GHz) |
| Memory (RAM) | 8GB 4800MHz DDR5 SO-DIMM on 1 slots (Expandable to 16GB maximum1 on 1 slots) |
| Storage | 128GB M.2 PCIe (NVMe) SSD³, 80 TBW
256GB M.2 PCIe (NVMe) SSD³, 160 TBW ³GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less. |
| Operating System Options | No Operating System
Microsoft Windows 11 IoT Enterprise LTSC 64-bit 2024 |
| Languages | Windows 11 - 36 Language groups |
| TPM | Intel® Platform Trust Technology (Intel® PTT) |
| Video | Intel UHD Graphics |
| BIOS | AMI |
| Wireless Connectivity | 802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz; Bluetooth 5.3 |
| I/O Ports | 1 x RJ45 LAN (Gigabit) Port
2 x USB 3.0 Ports 2 x USB 2.0 Ports 2 x Micro USB 2.0 Ports for Elo Edge Connect peripherals(Right/Bottom) 2 x RJ45 Serial Port 1 x 12V/24V Cash Drawer Port (EPSON Pinout, 24V default; selectable by BIOS setting) 1 x Full-function USB-C Port (Power up to 27W, USB 3.0, Display Port, Additional Video Out) 1 x Audio Port (3.5 mm headset jack) |
| Speakers | Two 2W internal speakers |
| Control Buttons | Power Button |
| Power | External 19VDC universal-type power supply brick; AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; Maximum output power: 90W |
| Max Power Consumption | On: <30W; Sleep: < 2W; Off: < 0.5W |
| Dimensions | 14.56" x 7.19" x 11.75" / 370.4 mm x 182.6 mm x 298.4 mm |
| Shipping Dimensions | 18.3" x 10.3" x 14.8" / 465 mm x 262 mm x 376 mm |
| Weight | Unpackaged: 7 lbs / 3.2 kg / Packaged: 11 lbs / 5.0 kg |
| Temperature | Operating: 0°C to 35°C (32°F to 95°F); Storage: -20°C to 60°C (-4°F to 140°F)
The thermal report pass airflow 0.5m/s + CPU Minimum assured power condition. For non-OS SKUs, recommend installing the Elo optimize TDP tool for better performance. |
| Humidity (non-condensing) | Operating: 20% to 80%; Storage: 5% to 95% (38.7°C max wet bulb temperature) |
| Real-Time Clock | Replaceable CR2032 lithium metal battery for clock |
| MTBF | 50,000 hours demonstrated |
| Sealability | Touchscreen sealed to sub-bezel; Touchscreen sealed to LCD |
| Other Features | Serviceable internal components; Kensington lock |
| Mounting Options | 75mm VESA mount |
| Warranty | 3-year warranty |
| Extended Warranty | 4 yr - Elo P/N: E819598; 5 yr - Elo P/N: E819795; 3 yr + AUR - Elo P/N: E820186; 4 yr + AUR - Elo P/N: E820388; 5 yr + AUR - Elo |
| What’s in the box | E-Series 3, North America Power Cord, EU Power Cord, Power Adapter – 90W, Series Port Cable RJ-45 to DB-9, Quick Installation Guide (QIG), Cable tie |
