Elo TouchSystems ECMG4 Module
-forids03-53-series-pgmain_800_700.png "ECMG4 Module Product Image")
The pictures shown are general images for product ECMG4 Module and may not be applicable to all part numbers

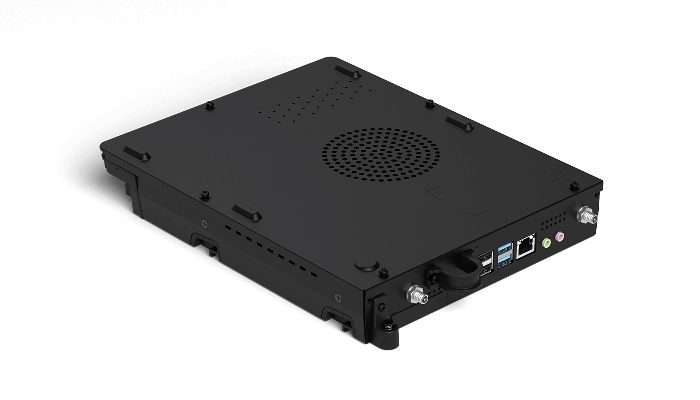

-forids03-53-series-pgmain_800_600.png "Alternate image for ECMG4 Module"){kind=small}
ECMG4 Module POS Computers
Elo ECMG4
Computer Modules
The Elo ECMG4 Computer Modules feature Intel® Core® 7th Generation CPUs with enhanced graphics performance. Available with Intel i5 processors for Microsoft Windows® 10 or no operating system, the commercial grade computer modules transform Elo's Large Format Interactive Displays into powerful all-in-one platforms. By adding touch to digital signage installations, you can create immersive brand experiences and self-service solutions to help increase customer engagement and satisfaction.
Smaller Form Factor
With dimensions of 11.07x8.2x1.7 the new ECMG4 form factor is 47% smaller than the previous model,
delivering a lower cost, lower energy consumption mini pc that's easier to install and maintain.
.png)
.png)
Easy Installation
The Elo IDS Computer Modules slide into the back of the touchscreen display to deliver the industry's thinnest commercial grade all-in-one large format touchcomputers. Field installation is easy with no external cables required. AC power, video and USB signals pass between the computer module and the Elo IDS touch display via an internal docking connector.
Connections
.png)
- LAN
- 2x USB 2.0 Type A
- 2x USB 3.0 Type A
- HDMI
- 3.5 mm line out & mic in
What's in the Box
- Quick Installation Guide (QIG)
- 2x WiFi/BT Antenna
- 4x M6x50 screws
- 4x M8x50 screws
- 4x Spacers
Compatible with
- 3203L TouchPro
- 4303L TouchPro and IR
- 5053L TouchPro and IR
- 5503L TouchPro and IR
- 5553L TouchPro and IR
- 6553L TouchPro and IR
| Product Specifications | |
|---|---|
| Processor | Intel® Core™ i5-7500T Processor
|
| Chipset | IntelH110 Chipset |
| Video | Intel HD Graphics 630 |
| TDP | 35W |
| BIOS | AMI |
| Storage | 256GB m.2 Solid State Drive (SSD) GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less. |
| Memory | 8 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots
16 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots (E405488 only) Maximum memory using 2 slots. Expandable up to 64GB maximum, DDR4-2133/2400 @ 1.2V |
| Operating Systems Supported | No Operating System
Microsoft Windows 10 64-bit (SAC) Microsoft Windows 10 Enterprise 2019 LTSC 64-bit |
| Display Compatibility | 5553L and 6553L Interactive Displays |
| USB Port(s) | 2 x USB 2.0 Type A; 2 x USB 3.0 Type A |
| Ethernet Port(s) | 1 x LAN RJ45 (Gigabit) |
| Wireless | IEEE 802.11 a/b/g/n/ac (downlink MU-MIMO |
| Bluetooth | Bluetooth 5 |
| Audio Ports | 1 x 3.5 mm Line out; 1 x 3.5 mm MIC in |
| Video Out | 1 x HDMI (UHD capable) |
| Real Time Clock | Replaceable lithium-ion battery for clock |
| Power Supply | Power provided by IDS Monitor |
| Dimensions | 11.07" x 8.2" x 1.7" / 281.1 mm x 208.2 mm x 43 mm |
| Shipping Box Dimensions | 28.74" x 20.47" x 13.78" / 730 mm x 520 mm x 350 mm |
| Weight | Unpackaged: 4.6 lbs / 2.1 kg; Packaged: 7.3 lbs / 3.3 kg |
| Temperature | Operating: 0°C to 40°C (32°F to 104°F) ; Storage: -30°C to 60°C (-22°F to 140°F) |
| Humidity (non-condensing) | Operating: 20% to 80%; Storage: 10% to 90% |
| Agency Approvals | UL/cUL, CB, FCC, CE, AS, NZS, VCCI |
| Warranty | Three years |
| Extended Warranty |
|
| Optional Product Coverage | On Site Exchange included in Continental US only |
| MTBF | 50,000 hours demonstrated |
| What’s in the box | QIG, 2x WiFi/BT Antenna, 4x M6x50 screws, 4x M8x50 screws, 4x Spacers |
