Elo TouchSystems EloPOS Pack 2
The pictures shown are general images for product EloPOS Pack 2 and may not be applicable to all part numbers
EloPOS Pack 2 POS Computers
High Performance Computer.
The EloPOS Pack 2 delivers a high performance enterprise-grade computing solution in a sleek, compact form factor. Backed by the security and infrastructure of an Intel-based system with the speed of 14th gen Raptor Lake processors, the EloPOS Pack 2 provides the power you need to run your business.
Small footprint for compact spaces.
Prupose-built to accommodate compact spaces, the EloPOS 2 boasts a smaller footprint in both size and weight than typical commerical-grades PC's.
Securely mount with a bracket.
Easily secure the EloPOS Pack 2 to any counter in a snap. Attach the mounting bracket to your desired location and simply clip it into place. And for added security, you can use the Kensington locks.
The perfect pairing for point of sale
Easily pair the EloPOS Pack 2 with your monitor of choice to create the perfect solution for your self-checkout and POS lanes.

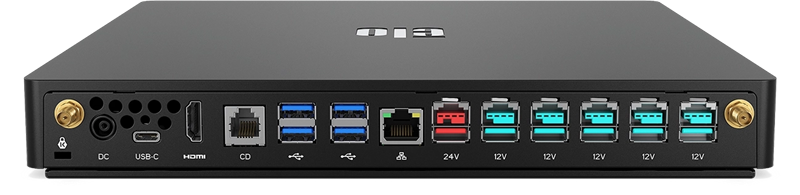

Connectivity for your accessories
With 17 connection ports, you can connect all the peripherals you need. From cash drawers and printers to barcode scanners and payment devices — there is a port to connect it all.
- USB-C full featured
- Gigabit LAN
- 6x USB 3.0
- HDMI
- 1x 24V Powered USB
- 5x 12V Powered USB
- 12V/24V Cash Drawer
- 3.5 mm headset jack
Expand possibilities with AI processing.
Experience unparalleled AI processing power with the EloPOS Pack 2, featuring optional Hailo Neural Processing Engine capable of executing 50 TOPS (trillion operations per second). Available with select i7 processor models. (coming soon)
Reliable security and performance.
Built with Intel 14th generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system, the EloPOS Pack 2 delivers the dependability businesses need.
Support for Linux
For added flexibility, the E-Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
Quality that is built to last.
Elo engineers each product with a goal that goes beyond meeting expectations; we aim to exceed them. By integrating our technology into your operations, you are partnering with us - and as your partner, we are committed to delivering reliable products so you can focus on growth and innovation, confident in the knowledge that we stand behind our products, ready to support you every step of the way.
| Product Specifications | |
|---|---|
| Processor | |
| Chipset | Intel Q670 Express |
| Video | |
| BIOS | AMI |
| Memory | |
| Storage | |
| Operating Systems | No Operating System, Microsoft Windows 10 IoT Enterprise LTSC 64-bit |
| Languages | Windows 10 – 36 Language groups |
| I/O Ports | 1x HDMI port, 1x LAN RJ45 (Gigabit), 2x USB 3.0 (Front side), 4x USB 3.0 (Rear side), 1x 24V & 5x 12V Powered USB, 1x 12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by internal switch), 1x Full-function USB-C (Power up to 27W, USB 3.0, Display Port), 1x 3.5 mm headset jack |
| Wireless | 802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz |
| Antenna | 2T2R design with External SMA connector |
| Bluetooth | Bluetooth 5.3 |
| RAID | Intel Volume Management Device (VMD) technology for select SKUs |
| TPM | TPM 2.0 |
| AMT | Intel Active Management Technology (AMT) for i5, i7 only. |
| Real Time Clock | Replaceable CR2450 lithium metal battery for clock |
| Power Supply | External 24VDC universal-type power supply brick, AC input voltage: 100-240 VAC, Input frequency: 50-60 Hz, Maximum output power: 180W |
| Power Consumption | ON Celeron: 35W (8GB DIMM/128GB SSD). Don’t exceed 145W for all peripherals load.; ON i3: 63W (8GB DIMM/256GB SSD). Don’t exceed 117W for all peripherals load.; ON i5: 62W (8GB DIMM/512GB SSD). Don’t exceed 118W for all peripherals load.; ON i7: 63W (16GB DIMM/256GB SSD). Don’t exceed 117W for all peripherals load.; SLEEP: <3W; OFF BIOS EUP Disable: <2.5W; OFF BIOS EUP Enabled: < 0.5W |
| Mounting Options | Bracket mounts to table with screws, System slides forward to engage hooks on bracket |
| Other Features | Serviceable internal components. Kensington Nano Security Slot. Kensington lock slot (Standard Size). |
| Upgrade Options | 8GB 5600MHz DDR5 SO-DIMM – E466053, 16GB 5600MHz DDR5 SO-DIMM – E466237 , 32GB 5600MHz DDR5 SO-DIMM – E466430, M.2 PCIe (NVMe) 128GB SSD – E466613, M.2 PCIe (NVMe) 256GB SSD – E466803 |
| Dimensions | 10.9" x 1.4" x 9.4" / 276 mm x 37 mm x 237.5 mm |
| Shipping Box Dimensions | 14.3" x 6.1" x 13.3" / 365 mm x 156 mm x 338 mm |
| Weight | Unpackaged: 5.76 lbs / 2.6 kg; Packaged: 10.14 lbs / 4.6 kg |
| Temperature | Operating: 0°C to 40°C (32°F to 104°F); Storage: -20°C to 60°C (-4°F to 140°F) |
| Humidity (non-condensing) | Operating: 10% to 90%; Storage: 0% to 95% (38.7°C max wet bulb temperature) |
| Compliance | Energy Star 8.0 certified configurations available |
| Warranty | 3 years |
| Extended Warranty | 4 year coverage - Elo P/N: E896120 ; 5 year coverage - Elo P/N: E896322 |
| MTBF | 50,000 hours demonstrated |
| What’s in the box | EloPOS Pack 2, North America Power Cord (1800+/-50mm), (6 ft +/- 1 inch), EU Power Cord (1800+/-50mm), Power Adapter – 180W, USB Type-C cable (1800+/-50mm), (6 ft +/- 1 inch), HDMI cable (1800+/-50mm), (6 ft +/- 1 inch), USB cable (1800+/-50mm), (6 ft +/- 1 inch), 2x SMA Antenna, QIG |
