EloPOS Pack POS Computers

Designed for Versatility

The EloPOS Pack delivers a powerful enterprise-ready compute platform in a sleek, compact form factor. Backed by the security and infrastructure of a Windows-based system with Intel’s Q370 Chipset and the speed of the Intel’s 9th gen processors, the EloPOS Pack provides the power you need to run your business. With versatile connectivity options, plug in anything from Elo’s latest monitor via single cable USB-C to a legacy printer requiring a 12V powered-USB. The system provides flexibility to make upgrades as your business requirements change.

EloPOS Pack Prominently displaying peripheral ports.

Small Footprint

Purpose-built to accommodate compact spaces, the EloPOS Pack boasts a smaller footprint in both size and weight than other commercial-grade PCs.

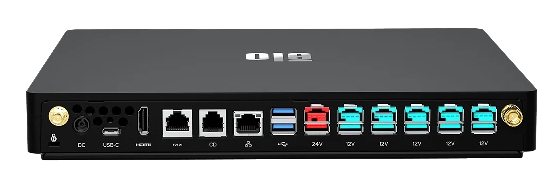

Photo of the back of the unit, slightly angled.

Unit floating over mounting plate, showcasing how they attach.

Securely Mount

Easily secure the EloPOS Pack to any counter in a snap. Attach the mounting bracket to your desired location and simply clip it into place. And for added security, you can use the Kensington locks.

Connect It All

With 16 connection ports, you can connect all the peripherals you need. From cash drawers and printers to barcode scanners and payment devices — there is a port to connect it all.

Angled photo exposing peripheral ports next to select compatible Elo displays

Connectivity for your accessories

With 17 connection ports, you can connect all the peripherals you need. From cash drawers and printers to barcode scanners and payment devices — there is a port to connect it all.

1 x HDMI port
1 x LAN RJ45 (Gigabit)
2 x USB 3.0 (Front side)
2 x USB 3.0 (Rear side)
1 x 24V on I/O

5 x 12V on I/O
1 x RJ50
1 x 12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by internal switch)
1 x Full-function USB-C (Power up to 27W, USB 3.0, Display Port)
1 x 3.5 mm headset jack

What's in the Box

EloPOS Pack
North America Power Cord (1800+/-50mm), (6 ft +/- 1 inch)
EU Power Cord (1800+/-50mm)
Power Adapter – 180W
Cable RJ-50 to DB-9 (900+/-30mm), (3 ft +/- 1 inch)
USB Type-C cable (1800+/-50mm), (6 ft +/- 1 inch)
HDMI cable (1800+/-50mm), (6 ft +/- 1 inch)
USB cable (1800+/-50mm), (6 ft +/- 1 inch)
2x SMA Antenna
Quick Installation Guide (QIG)
