Elo TouchSystems I-Series 4 Android

The pictures shown are general images for product I-Series 4 Android and may not be applicable to all part numbers

Buy it now
Lifetime Support
15 Day Return Period
I-Series 4 Android Features
16:10 Ratio
16:9 Ratio
10.1" Display
15.6" Display
21.5" Display
Android 10

I-Series 4 Android POS Computers


This product replaces the older Elo TouchSystems I-Series Android.

The I-Series is one of Elo's most popular product lines and has been used across the globe for everything from self-service, point-of-sale and price checkers to industrial controls and visitor management. This newest entry to the product line features a flexible Android 10 OS and enhanced CPU performance with your choice of upgraded Qualcomm or Rockchip processor options. Available in 10", 15" and 22" screen sizes, Elo's I-Series delivers a powerful, commercial-grade interactive platform complete with a Full HD 10-touch display.

Start changing the way customers and employees interact by deploying a new generation of interactive technologies that provides seamless integration, effortless provisioning and simplified device management via EloView or your preferred management tools.

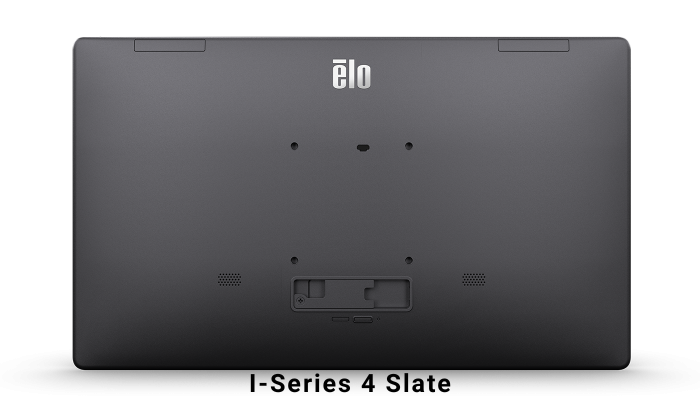

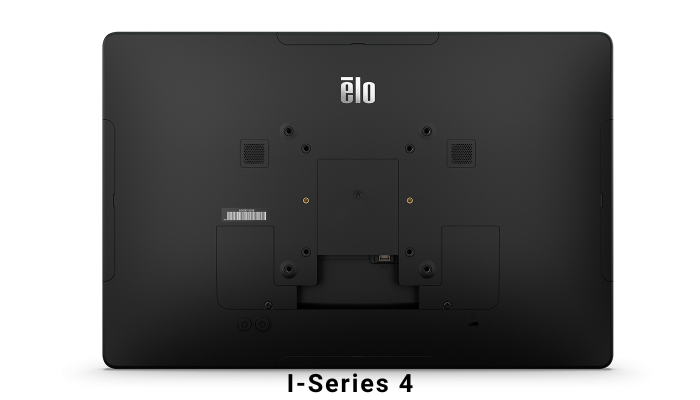

What's the Different Between the Slate and Non-Slate Version?
The Slate line features a thinner profile (0.88" vs 0.52") at the expense of the three USB-C peripherals connections on the top and side of the computer. The Slate line also offers a marginally brighter screen with a better contrast ratio. The Slate line's pain purpose is to be used with Elo's Z-line of POS Stands.

Highlighted Features
  • Powerful Touchscreens
    Available in 10", 15" or 22" widescreen sizes with high-performance computing and sleek edge-to-edge glass PCAP touchscreen
  • Enterprise-Grade Support
    Security updates, seamless provisioning, Elo Home, OEMConfig and more
  • Easy Android Device Management
    Deploy content, manage settings and maintain the OS with EloView
  • Modular Swappable Peripherals
    The modular designed I-Series can be easily configured to fit nearly any use. Elo Edge Connect peripherals allow you to add a variety of accessories including payment devices, cameras, barcode readers and many others. And with a number of stand options and universal 75x75 and 100x100 VESA compatibility (only 75x75 on Slate line) you get additional flexibility for any mounting need.
  • Google mobile services ready.
    Create a seamless experience for your customers - from their personal devices to your interactive experiences in store. With Google Mobile Services, your app can take advantage of the latest, Google-powered features while maintaining the added flexibility of EloView - making deployments and management a breeze.
  • Create your perfect POS system.
    Easily convert your favorite I-Series into a powerful, industrial-designed POS system that scales with your business.
  • Touchscreen kiosks simplified.
    The possibilities are endless with the I-Series. From self-order and self-checkout to order pickup and virtual assistants, pair the I-Series with a variety of stands to create your perfect kiosk. And, applications with audio and video are simplified with the built-in 8MP camera and digital microphones.
Product Specifications
Screen Size 10-inch model
  • 10.1" (256.54mm)

  • 15-inch model
  • 15.6" (396.24mm)

  • 22-inch model
  • 21.5" (546.10mm)
  • Bezel Color Gray, Black
    Operating System Android 10 with Google Play Services and EloView content deployment and management
    Processor
  • Standard: Qualcomm Snapdragon SDA660
  • Value: Rockchip RK3399
  • Memory 4GB
    Storage Standard: 64GB; Value: 32GB
    I/O Ports
  • 1x USB 3.0 support (900mA), Type C USB output, Micro SD slot, GPIO, Ethernet 1x LAN (Gigabit), DC in 4x micro-USB 2.0 Elo Edge
  • Connect ports (Support for 1.2A on one port and 500mA for the remaining three ports)
  • Wireless 802.11a/b/g/n/ac + Bluetooth 5.0
    Webcam
  • Standard: 8MP, Max Resolution: 1920x1080 30fps, Auto Focus, Focus Range: >10cm;
  • Value: 5MP, Max Resolution: 1920x1080 30fps, Auto Focus
  • Speakers Standard: 2x 0.8W; Value: 2x 2W
    Audio Standard: 2x built-in Digital Microphones; Value: 1x built-in Analog Microphone
    Resolution 10-inch model
  • Standard: 1920 x 1200 @ 60Hz
  • Value: 1280 x 800 @ 60Hz
    15-inch model & 22-inch model
  • 1920 x 1080 @ 60Hz
  • Touch Technology TouchPro┬« PCAP (Projected Capacitive) - up to 10 touches
    Aspect Ratio 10-inch model
  • 16:10

  • 15-inch model
  • 16:9

  • 22-inch model
  • 16:9
  • Number of Colors 8-bit (16.7M)
    Brightness 10-inch model
  • Standard: LCD Panel: 450 nits; PCAP: 387 nits
  • Value: LCD Panel: 300 nits; PCAP: 250 nits

  • 15-inch model
  • Standard: LCD Panel: 300 nits; PCAP: 258 nits
  • Value: LCD Panel: 250 nits; PCAP: 215 nits

  • 22-inch model
  • Standard: LCD Panel: 250 nits; PCAP: 215 nits
  • Value: LCD Panel: 250 nits; PCAP: 215 nits
  • Power AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz
    Power Consumption
  • Standard: On: 8.5W; Off: 0.4W; Sleep: 4.5W Value: On: 7.2W; Off: 0.4W; Sleep: 3.4W
  • Standard: On: 11.0W; Off: 0.4W; Sleep: 4.4W Value: On: 10.0W; Off: 0.4W; Sleep: 3.4W
  • Standard: On: 19.8W; Off: 0.4W; Sleep: 4.4W Value: On: 15.7W; Off: 0.45W; Sleep: 3.4W
  • Dimensions (W x D x H)
    10"
  • Standard: 12.6" x 6.0" x 9.3" / 320 mm x 150 mm x 235 mm
  • Value: 12.4" x 5.5" x 9.0" / 315 mm x 140 mm x 228 mm
    15"
  • Standard: 17.7" x 6.5" x 13.0" / 450 mm x 165 mm x 330 mm
  • Value: 18.3" x 6.3" x 13.0" / 465 mm x 160 mm x 330 mm
  • Standard: 23.2" x 6.6" x 15.8" / 590 mm x 168 mm x 400 mm
  • Value: 23.6" x 6.6" x 16.0" / 600 mm x 168 mm x 406 mm
  • Weight
    10"
  • Standard: 2.0 lbs / 0.9 kg;
  • Value: 1.8 lbs / 0.8 kg
    15"
  • Standard: 3.9 lbs / 1.8 kg;
  • Value: 3.5 lbs / 1.6 kg
    22"
  • Standard: 8.4 lbs / 3.8 kg;
  • Value: 9.5 lbs / 4.3 kg
