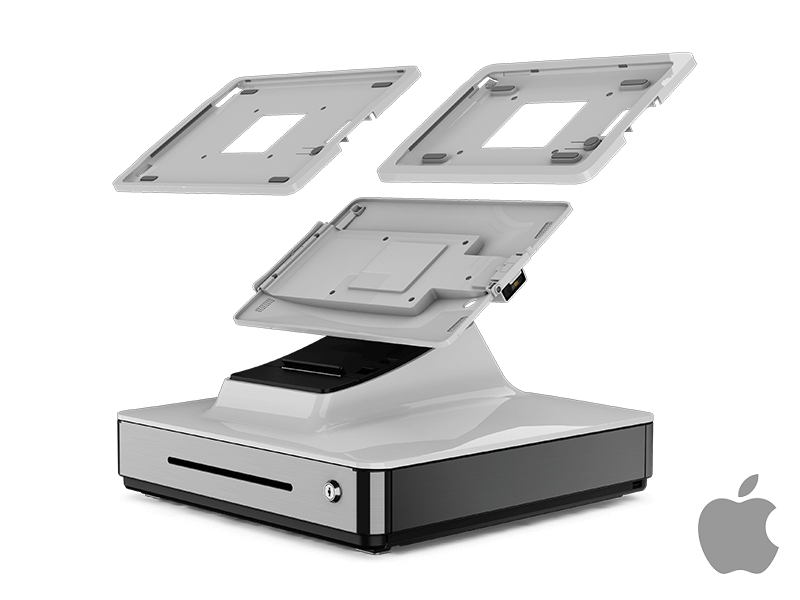

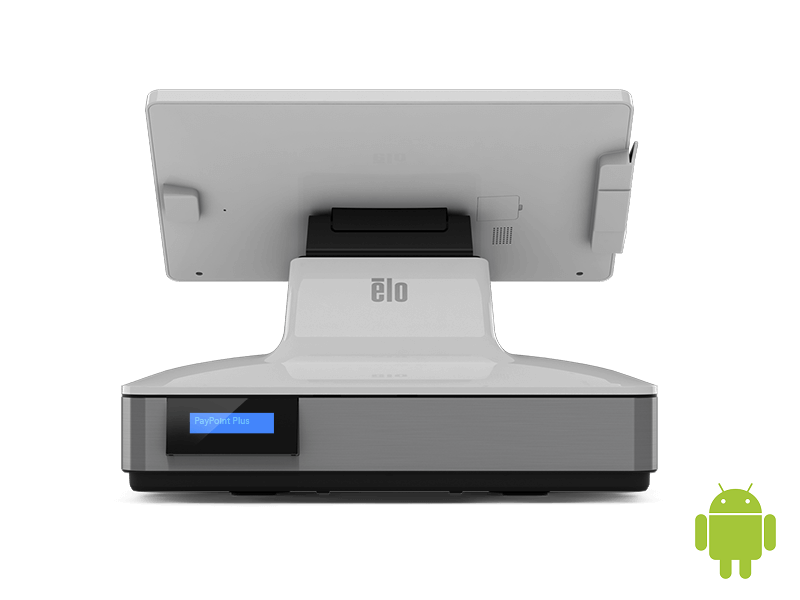

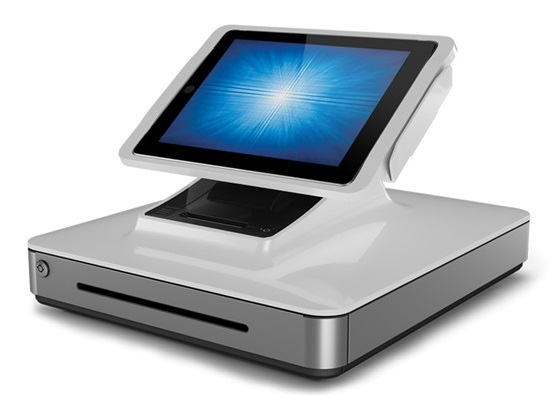

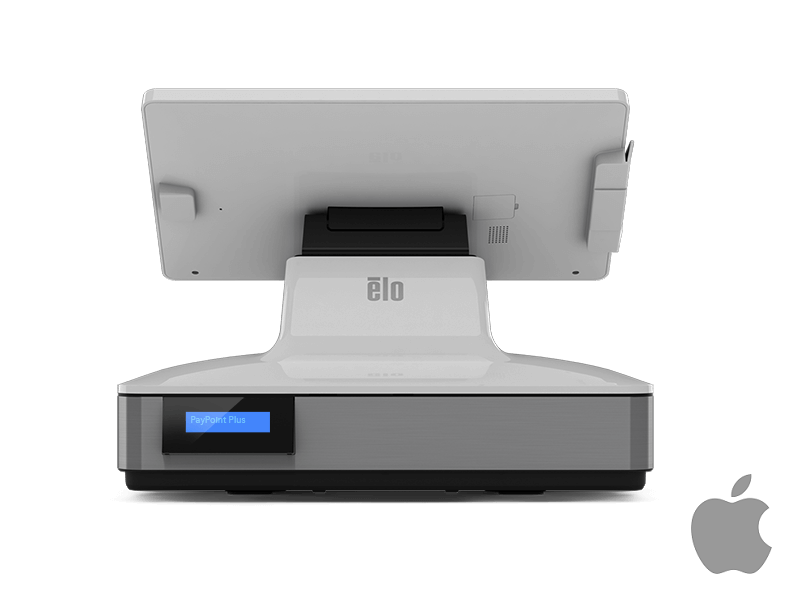

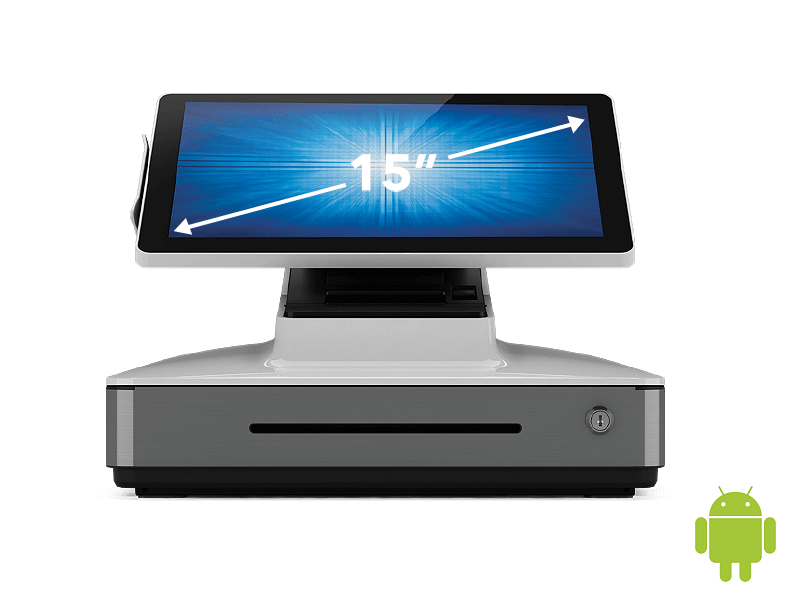

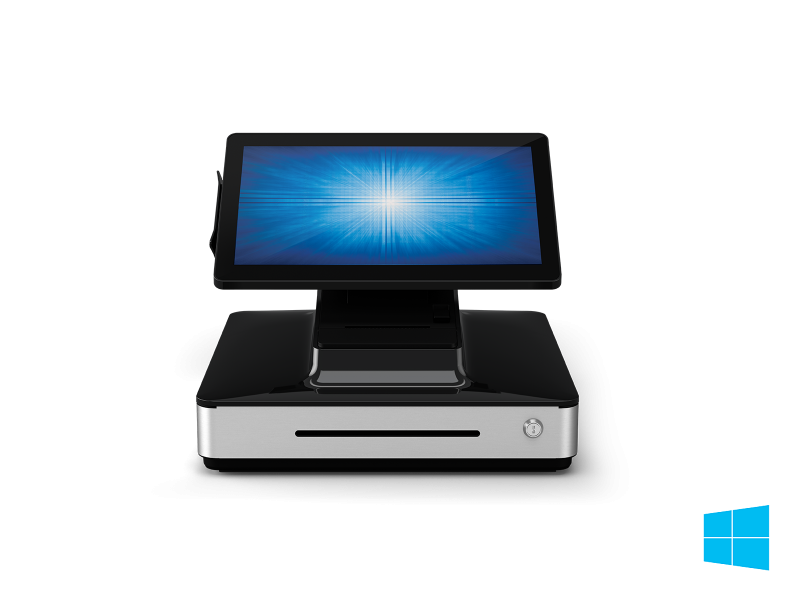

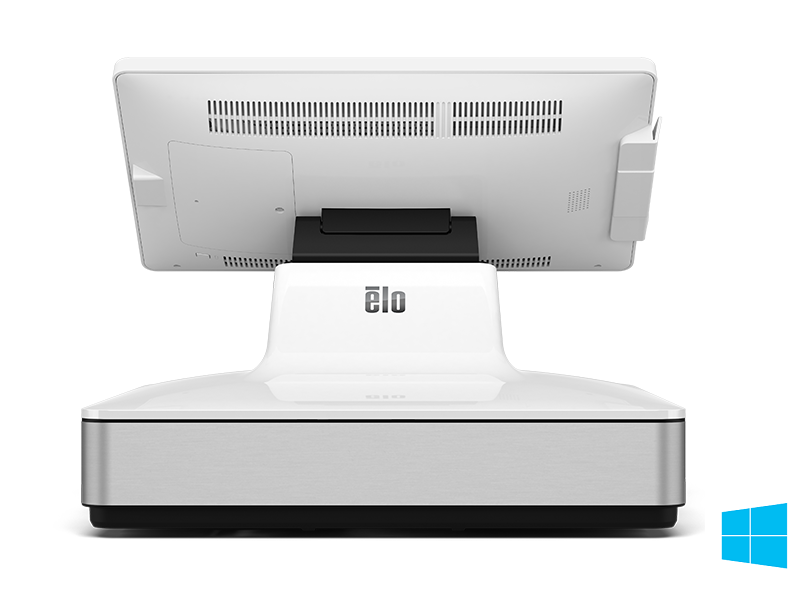

Elo TouchSystems PayPoint Plus

PayPoint Plus POS Computers


Building from the success and design from the previous model, Elo TouchSystems introduces their updated PayPoint Plus POS System! Everything you need for a self-contained POS station is included. Built into one space-saving, high-designed package Elo gives you a 15 touchscreen (for the Android/Windows models), a 2D barcode scanner, full-size cash drawer, 3" receipt printer, and card reader. Easy to use and stylish, you'll love being able to use your favorite operating systems for your POS needs without sacrificing counter space for all the equipment needed.

    Features
  • Available for Android, Windows, and Apple iPads
  • Apple model compatible with iPad Air/Air 2, iPad 4, iPad 2017 model, iPad Pro 9.7"/12.9" (sold separately)
  • Flippable display for customer interaction and signing
  • Customer-facing 2-line display (Android/Apple models only)
  • Integrated Honeywell 2D barcode scanner
  • Integrated Star Micronics TSP100III 3" Receipt Printer (uses standard thermal receipt paper)
  • 16" cash drawer with 5 bill/6 coin (N.America/China) or 4 bill/8 coin (Worldwide) tray options
  • Built-in MSR
  • 3 Year Warranty
Product Specifications
Weight
  • Apple: 18.29 lbs
  • Android: 19.84 lbs
  • Windows: 22.47 lbs
  • Dimensions 16.18" x 12.71" x 16.53" / 411 mm x 323 mm x 420 mm
    Operating Temperature 0°C to 35°C / 32°F to 95°F
    Humidity 20% to 80% non-condensing
    Color White or Black (Windows-only)
    Compatible iPads (Apple) For ETT10i2 models:
  • iPad Pro 9.7"
  • iPad (2017 model)
  • iPad 4
  • iPad Air
  • iPad Air 2
  • For ETT13i2 models: iPad Pro 12.9"
  • Touch Technology (An/Win) Android and Windows: PCAP (Projected Capacitive) - up to 5 touches
    Display Size (An/Win) 15.6'' diagonal, Active matrix TFT LCD (LED)
    Display Resolution (An/Win) 1920 x 1080 @ 60Hz
    Processor (Android) Qualcomm Snapdragon 2.0GHz Octa-Core
    Processor (Windows) Intel Core i5-8500T Processor (9M Cache, up to 3.50 GHz) with Intel vPro™ support
    Memory (RAM) (Android) 3GB
    Memory (RAM) (Windows) 8GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (Expandable to 32GB)
    Storage (Android) 32GB
    Storage (Windows) 128GB M.2 SSD, 72 TBW
    USB Ports
  • Apple: 1 x Type A USB (for Charging) 1 x Mini USB (for Charging)
  • Android: 4 x Type A USB 2.0 1 x mini USB 2.0 1 x 12V powered USB port
  • Windows: 4 x Type A USB 2.0 1 x 12V powered USB port
  • Ports (Apple)
  • 2 x RJ45 serial
  • 1 x RJ12 cash drawer
  • Ports (An/Win)
  • 2 x RJ45 serial
  • 1 x micro HDMI
  • 1 x LAN (Gigabit)
  • 1 x RJ12 cash drawer
  • Wireless Options (An/Win) 802.11b/g/n/ac + Bluetooth 5.0
    Magnetic Stripe Reader (MSR) Magtek 3 track encryptable; Default Security Level 2
    Barcode Scanner Specs
  • Honeywell N3680 1D/2D
  • CMOS sensor with 640 x 480 pixel resolution
  • Printer Specs
  • Star TSP100III USB thermal 3" w/Auto Cutter
  • 250mm/sec Print Speed
  • 80mm Max Paper Roll Diameter
  • 0.053-0.085mm Paper Thickness
  • Customer Display (Apple/An) 2x16 character display
    Cash Drawer Specs
  • Outside Dimensions: 16.18" x 16.54" x 3.50" / 411 mm x 420 mm x 89 mm
  • Removable till insert, Media slot for checks, 3 position lock
  • 5 bill, 6 coin tray
  • Operating System
  • Android: Android 7.1 with EloView content deployment and management
  • Windows: Windows 10 or No OS
  • Apple: SDK support for iOS 10 and later
  • Warranty 3-Year
    What's In the Box
  • Power cable
  • 1 x Receipt paper roll
  • 2 x Cash drawer keys
  • Quick Installation Guide
  • RJ45 to DB9 serial cable
  • Elo TouchSystems PayPoint Plus Reviews

    POSGuys Rating: Not Rated

    Customer Reviews

    Add a customer product review

    Recommended Models

    Elo PayPoint Plus, Android 7.1, 3GB RAM, 32GB SSD, 3-inch printer, 2D barcode scanner, 5x6 cash drawer, CFD, White (N. America/China)
    $1,649.00
    Elo PayPoint Plus, Apple 9.7-inch iPad (sold separately), 3-inch printer, 2D barcode scanner, 5x6 cash drawer, CFD, White (N. America/China)
    $1,159.00
    Elo PayPoint Plus, Apple 12.9-inch iPad (sold separately), 3-inch printer, 2D barcode scanner, 5x6 cash drawer, CFD, White (N. America/China)
    $1,199.00
    Elo PayPoint Plus, Win 10, 8GB RAM, 128 SSD, 3-inch printer, 2D barcode scanner, 5x6 cash drawer, White, (N. America/China)
    $2,140.00
    Elo PayPoint Plus, Win 10, 8GB RAM, 128 SSD, 3-inch printer, 2D barcode scanner, 5x6 cash drawer, Black (N. America/China)
    $2,170.00

    Additional Models

    Elo PayPoint Plus, Android 7.1, 3GB RAM, 32GB SSD, 3-inch printer, 2D barcode scanner, 4x8 cash drawer, White (Worldwide)
    $1,649.00
    Elo PayPoint Plus, Apple 9.7-inch iPad (sold separately), 3-inch printer, 2D barcode scanner, 4x8 cash drawer, White (Worldwide)
    $1,159.00
    Elo PayPoint Plus, Apple 12.9-inch iPad (sold separately), 3-inch printer, 2D barcode scanner, 4x8 cash drawer, White (Worldwide)
    $1,249.00
    Elo PayPoint Plus, Win 10, 8GB RAM, 128 SSD, 3-inch printer, 2D barcode scanner, 4x8 cash drawer, White (Worldwide)
    $2,140.00
    Elo PayPoint Plus, Win 10, 8GB RAM, 128 SSD, 3-inch printer, 2D barcode scanner, 4x8 cash drawer, Black (Worldwide)
    $2,170.00

    Accessories

    E784606 Replacement Cash Drawer Kit for PayPoint Plus, 5 bill 6 coin configuration
    $90.00
    Add to Cart
    E201914 Replacement cash drawer keys 001, PayPoint Plus
    $2.65
    Add to Cart
    E202119 Replacement cash drawer keys 002, PayPoint Plus
    $2.65
    Add to Cart
    E202321 Replacement cash drawer keys 003, PayPoint Plus
    $2.65
    Add to Cart
    E784408 Replacement Cable Kit for PayPoint Plus, White
    $20.00
    Add to Cart
    E202512 ELO, REPLACEMENT CASH DRAWER KIT, 4 BILL 8 COIN CONFIGURATION, PAYPOINT PLUS
    $90.00
    Add to Cart
