Elo TouchSystems Z30

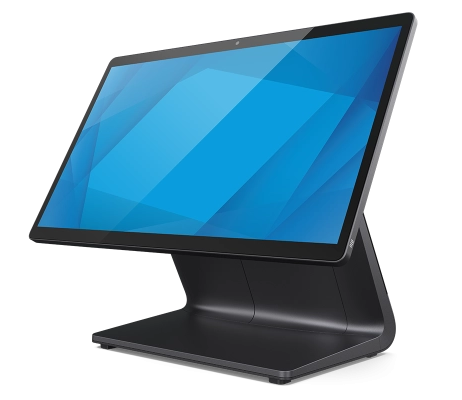

The pictures shown are general images for product Z30 and may not be applicable to all part numbers

Z30 POS Computers


The Z30 delivers a beautifully robust point-of-sale stand complete with a built-in customer-facing touchscreen display, integrated connectivity hub and concealed cable routing. Designed to support Elo's Android I-Series 4 Slate, the Z30 POS stand includes a universal VESA mount making it easy to install the 15.6-inch Full HD touchscreens with your choice of Qualcomm or Rockchip processor options.

Start changing the way customers and employees interact by deploying a new generation of interactive point-of-sale technologies that provide seamless integration, effortless provisioning and simplified device management via EloView or your preferred management tools.

Highlighted Features - EloPOS Z30 Android POS
  • Powerful Touchscreen
    The EloPOS Z30 offers a fully integrated 15.6-inch full HD interactive display.
  • Interactive display for customers
    With an integrated CFD, offer your customers a point of interaction to review transactions, participate in loyalty programs and see the latest promotions with the integrated customer-facing touchscreen display.
  • Secure it
    The Z30 is designed to stay in place without being secured, but if permanent mounting is required, easily affix our POS terminal to any counter or surface.
  • Commercial-grade performance
    Whether equipped with the Qualcomm Snapdragon 8-core Kryo processor or the Rockchip 6-core processor, the EloPOS Z30 for Android delivers the performance your point-of-sale system needs

BOX CONTENTS - EloPOS Z30
  • NA Power Cable/EU Power Cable
  • Quick Install Guide
  • 150W Power Brick
  • 2 x Zip Ties, Base Plate – for mounting to a countertop
  • 1 x M4x8 mm screw
  • 1x M3x6mm screw


BOX CONTENTS - Z30 Stand Only
  • North America Power Cable/European Power Cable
  • Quick Install Guide
  • 150W Power Brick
  • 2 x Zip Ties, 1 x M3 x6mm screws, 4 x M4x6 mm screws, 1 x M4x8 mm screw
  • Base Plate – for mounting to a countertop


Product Specifications
Bezel Color Dark Grey Metallic
Compatibility Main Display:
I-Series 4 Slate

Customer-Facing Displays (for use of non-CFD stand):
  • 0702L – Elo P/N: E796382
  • 1002L – Elo P/N: E155834 and E324341
  • 1302L – Elo P/N: E683595 and E683787
  • 1502L – Elo P/N: E125496

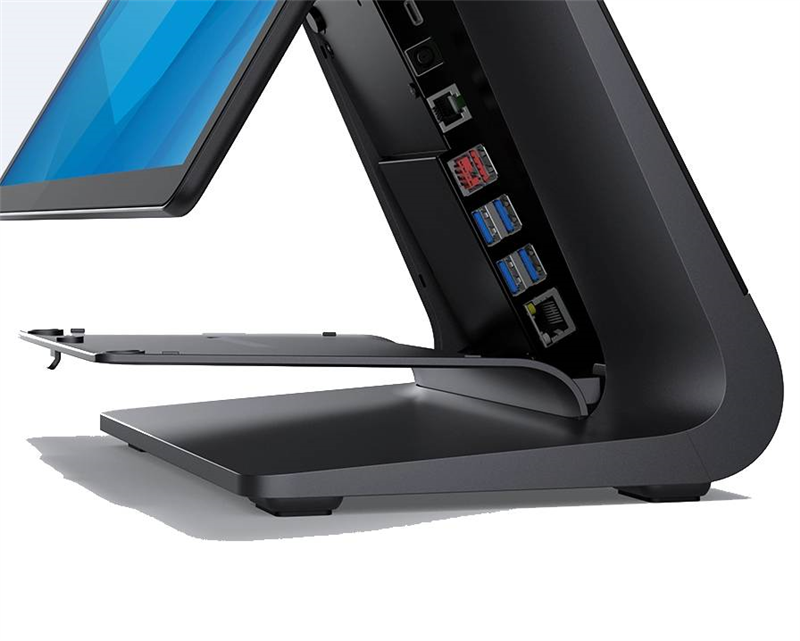

  • I/O Ports DC Input
  • 4 x USB-A 3.0 (900mA)
  • RJ45 Ethernet LAN (Gigabit)
  • RJ12 (Serial/cash drawer)* 12/24V
  • Powered USB 24V
  • USB-C output - CFD (DisplayPort, Touch and Power Delivery up to 27W)

    *User will need to select mode
  • Display Head Connection USB Type C
    Power
  • AC input voltage: 100-240 VAC
  • Input frequency: 50-60 Hz
  • Power Consumption On - Without CFD: 3.5W; With CFD: 8.32W
    Off: <0.1W
    Sleep - Without CFD: 2.5W; With CFD: 8.32W
    Real-Time Clock Lithium coin cell battery
    Dimensions (W x D x H) 6.34" x 9.55" x 7.99" / 162 mm x 242.6 mm x 203 mm
    Shipping Dimensions 11.65" x 11.42" x 12.6" / 296 mm x 290 mm x 320 mm
    Weight 5.7 lbs / 2.6 kg
    Shipping Weight 10.8 lbs / 4.9 kg
    Temperature Operating: 32°F to 104°F (0°C to 40°C) Storage: -4°F to 122°F (-20°C to 50°C)
    Humidity Operating: 20%-80% Storage: 5%-95%

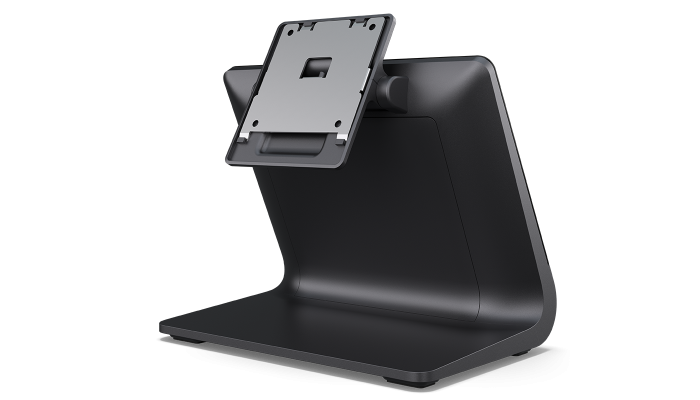

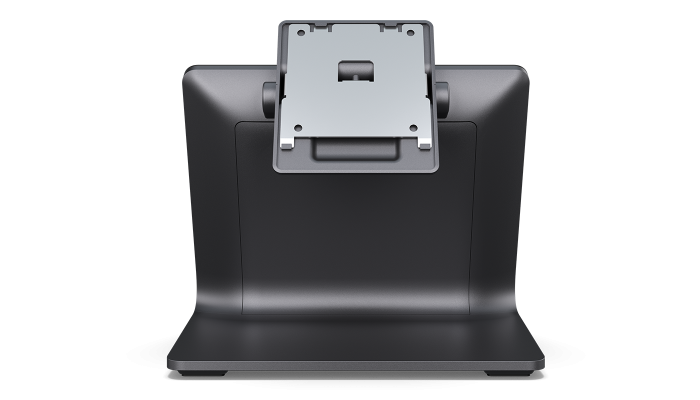

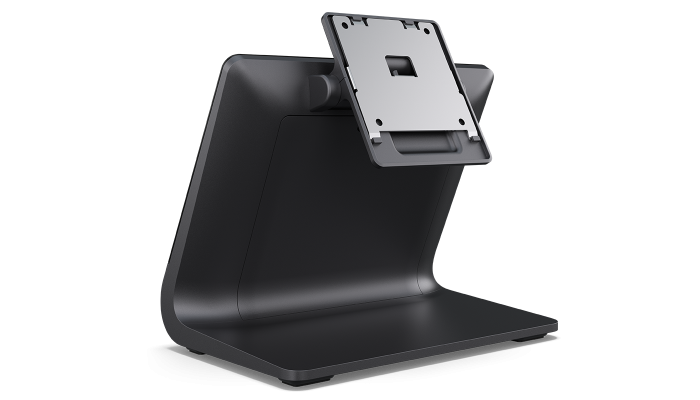

    Mounting Options VESA 75mm
    MTBF 50,000 hours
    Warranty 2 years standard
    What's in the Box Z30 POS Stand , North America Power Cable, European Power Cable, Quick Install Guide, 150W Power Brick, 2 x Zip Ties, 1 x M3 x6mm screws, 4 x M4x6 mm screws, 1 x M4x8 mm screw, Base Plate – for mounting to a countertop

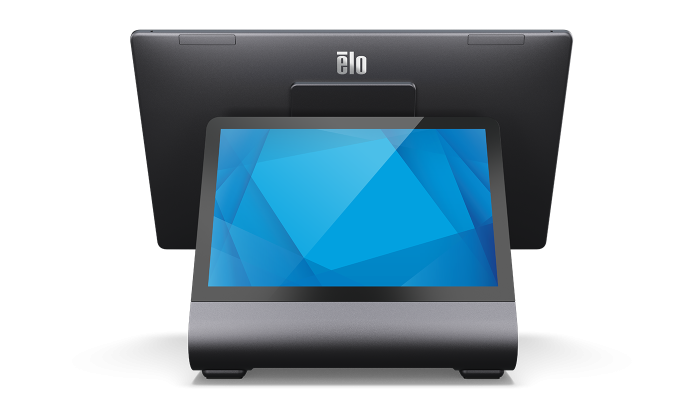

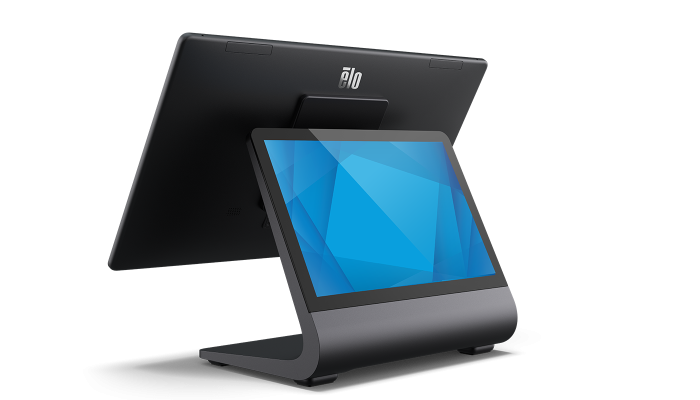

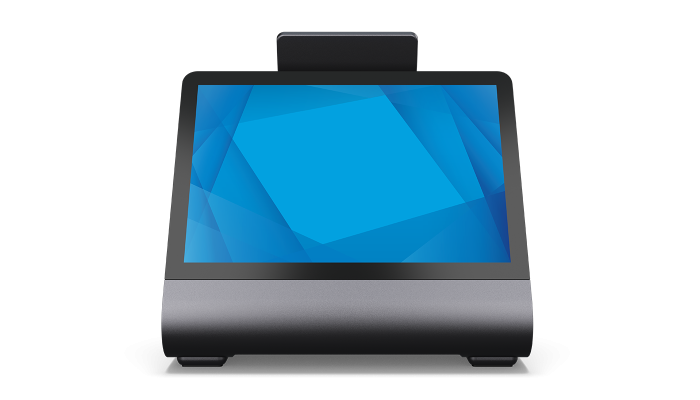

    Built-In Customer-Facing Display
  • Size Resolution 10.1 inch 1280x800 @ 60 Hz
  • Active Display Area 8.7" x 5.3" / 216.96 mm x 135.6 mm
  • Operating System Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total
  • Processor LCD Panel: 400 nits; TouchPro PCAP: 344 nits
  • Number of Colors 8-bit (16.7M)
  • Touch Technology TouchPro® PCAP (Projected Capacitive) - up to 10 touches
  • Elo TouchSystems Z30 Reviews

    POSGuys Rating: Not Rated

    Customer Reviews

    Recommended Models

    EloPOS Z30 Android Touch Computer. Standard Model. 15.6", Qualcomm 660, 4GB RAM, 64GB Flash, Android 10, Gray, Wi-Fi, Ethernet, Bluetooth 5.0, No Customer Facing Display.
    $1679.05 Add to Cart
    Kit:Stand & Computer
    Processor:Qualcomm 660
    EloPOS Z30 Android Touch Computer With Integrated Customer Display. Standard Model. 15.6", Qualcomm 660, 4GB RAM, 64GB Flash, Android, Gray, Wi-Fi, Ethernet, Bluetooth 5.0, with Customer Facing Display.
    $1923.08 Add to Cart
    Customer Facing Display:Customer Facing Display
    Kit:Stand, Computer, & Rear Display
    Processor:Qualcomm 660

    Additional Models

    EloPOS Z30 Android Touch Computer. Value Model. 15.6", Rockchip 3399, 4GB RAM, 32GB Flash, Android 10, Gray, Wi-Fi, Ethernet, Bluetooth 5.0, No Customer Facing Display.
    $1458.89 Add to Cart
    Kit:Stand & Computer
    Processor:Rockchip 3399
    EloPOS Z30 Android Touch Computer With Integrated Customer Display. Value Model. 15.6" Rockchip 3399, 4GB RAM, 32GB Flash, Android 10, Gray, Wi-Fi, Ethernet, Bluetooth 5.0, with Customer Facing Display.
    $1700.27 Add to Cart
    Customer Facing Display:Customer Facing Display
    Kit:Stand, Computer, & Rear Display
    Processor:Rockchip 3399
    EloPOS Z30 POS Stand without Customer Facing Display.
    Stand Only. Order Computer Separately.
    Stand Only:Stand Only
    EloPOS Z30 POS Stand with 10-inch Capacitive 10-Touch Customer Facing Display.
    Stand Only. Order Computer Separately.
    Customer Facing Display:Customer Facing Display
    Stand Only:Stand Only
