Logic Controls SB-8700

SB-8700 POS Computers


The Logic Controls SB-8700 has reached end of life.

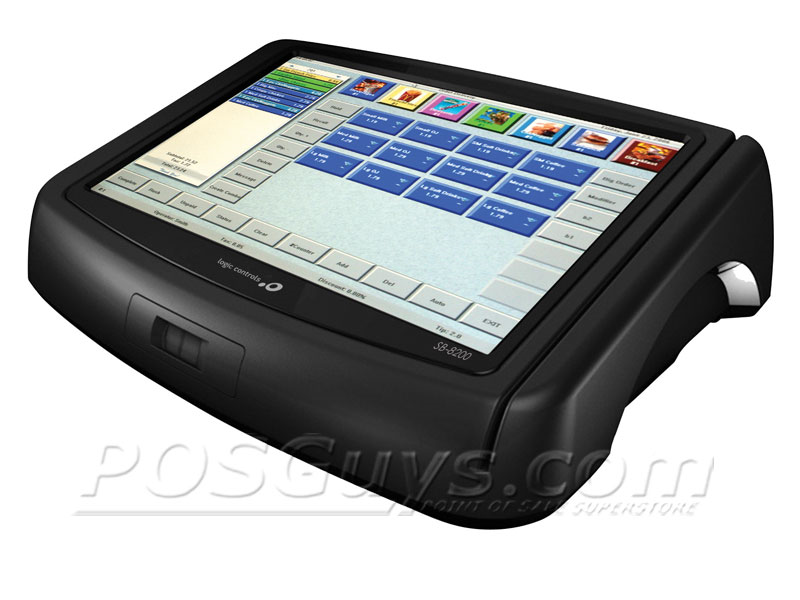

The Logic Controls SB-8700 POS computer offers great touchscreen computing in a unique design, fantastic for counter-service or retail applications. A space saving low profile allows the SB-8700 to succeed in any environment where eye contact and over counter exchanges are vital to your business's succses.

The 10" touchscreen of the SB-8700 is built into the base as opposed to on top, making it a mere 5.11" tall. Running at a resolution of 800x600 or 1024x768, the display supports most POS software on the market. 4-wire resistive touchscreen technology ensures easy order entry on the SB-8700 and eliminates the clutter of keyboards and mice at your counter.

Powered by an Intel Atom processor, the SB8700 runs efficiently enough to be fan-free, withstanding harsher and dustier environments than fanned POS computers. An optional card reader, fingerprinter reader, and WiFi capabilities extend the functionality of the SB-8700. The low profile, fanless design, and optional accessories make the Logic Controls SB-8700 a unique and versatile solution for any restaurant, retail, or hospitality location.
    Features
  • 1.6 GHz Intel Atom Processor
  • 1 GB RAM, 2 GB Max
  • Windows XP Pro, POSReady 2009, 7
  • 10" display with resistive touch technology
Product Specifications
Color Options Black
Memory One DDR2 SODIMM with 2GB (1GB also available)
Support for DDR2 533/667 SODIMM
Processor Intel Atom Processer N450 1.66GHz
Hard Drive Standard:
160GB SATA WD 2.6" Hard Disk 5400 RPM
Integrated SATA Controller with independent DMA option on one Port
GB SATA WD Support SATA II

Optional:
One interface for compact flash storage
Integrated IDE controllers 2.5" HDD
Supports Ultra ATA100/66/33
Operating System Windows XP Professional
Windows 7
POS Ready 2009
Linux
Ports Audio:
Double deck Jack on back panel
One input for microphone
One output for speak

Serial:
4 RS-232C DB9 male

Parallel:
DB25 Female
USB:
4 USB 2.0, type A

Keyboard & Mouse:
Double deck PS2 connector for keyboard and mouse port interfaces

CRT:
VGA display controller resolutions up to QXGA
Standard DB15 Interface

LAN:
One 10/100 Mbits interface Ethernet with standard RJ45 connector
Display Type 10.4 Inch LCD Touch Panel
Screen 4-Wire Resistive
Style Desktop
Optimal Resolution 800 x 600
Weight 7 lbs / 3.17 kg
Aspect Ratio 4:3
Bezel Standard
Dimensions 5.11 x 11.41 x 13.18 Inches
130 x 290 x 335 mm
Operating Temperature 32 to 104°F (0 to 40°C)
Power Supply External Power Supply 100-240 VAC / 50-60 Hz
Input 1,5 A; Output +12V, 5A
Speakers Not integrated - One output port available if speakers are desired
Optional Peripherals Magnetic Stripe Reader 1,2, and 3 tracks
Integrated Wi-Fi Adapter 802.11g
Fingerprint Reader 512 dpi
Warranty 3 Year Warranty
Return Policy 20 Days

Logic Controls SB-8700 Reviews

POSGuys Rating:

Customer Reviews

This product has not been reviewed yet, be the first to share your experience

Add a customer product review

Recommended Models

SB8700 Fanless All-in-One: Black With 1.6GHz Atom Processor, 1GB RAM, 160 GB HD, 3-Track MSR, Aldelo-Lite Software Pre-Loaded, Windows XP Pro (This Model Only All Sales Final)
Please Call
  • color: Black
  • operating system: Windows XP Pro
  • ram: 1 GB
  • msr: 3-Track
SB8700 Fanless All-in-One: Black With 1.6GHz Atom Processor, 2GB RAM, 160 GB HD, 3-Track MSR, 1024x768 Resistive Touch, Windows 7
Please Call
  • color: Black
  • operating system: Windows 7
  • ram: 2 GB
  • msr: 3-Track
SB8700 Fanless All-in-One: Black With 1.6GHz Atom Processor, 2GB RAM, 160 GB HD, 3-Track MSR, 1024x768 Resistive Touch, Windows XP Pro
Please Call
  • color: Black
  • operating system: Windows XP Pro
  • ram: 2 GB
  • msr: 3-Track
SB8700 Fanless All-in-One: Black With 1.6GHz Atom Processor, 2GB RAM, 160 GB HD, No MSR, 1024x768 Resistive Touch, Windows 7
Please Call
  • color: Black
  • operating system: Windows 7
  • ram: 2 GB
  • msr: None
SB8700 Fanless All-in-One: Black With 1.6GHz Atom Processor, 2GB RAM, 160 GB HD, No MSR, 1024x768 Resistive Touch, Windows XP
Please Call
  • color: Black
  • operating system: Windows XP
  • ram: 2 GB
  • msr: None

Previously Available Models

SB8700 Fanless All-in-One: Black With 1.6GHz Atom Processor, 2GB RAM, 160 GB HD, 3-Track MSR, 800x600 Resistive Touch, POS Ready 2009
Please Call
SB8700 Fanless All-in-One: Black With 1.6GHz Atom Processor, 2GB RAM, 160 GB HD, 3-Track MSR, 1024x768 Resistive Touch, POS Ready 2009
Please Call
SB8700 Fanless All-in-One: Black With 1.6GHz Atom Processor, 2GB RAM, 160 GB HD, No MSR, 1024x768 Resistive Touch, POS Ready
Please Call
