Logic Controls SB-9090
The pictures shown are general images for product SB-9090 and may not be applicable to all part numbers
SB-9090 POS Computers
The Logic Controls SB-9090 has reached end of life.

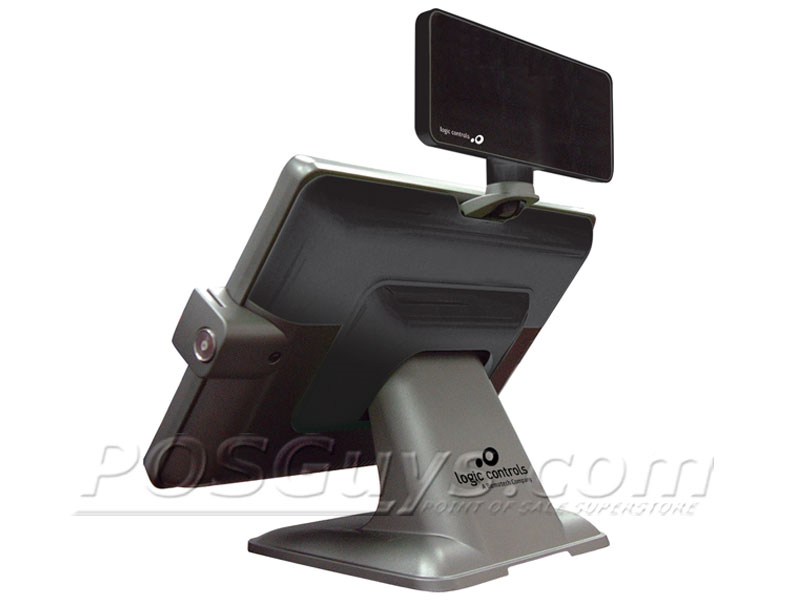

The Logic Controls SB-9090 POS computer offers fanless operation and a small footprint, ideal for quiet operation at restaurant and retailers alike. Support for a variety of peripherals ensures the SB-9090 can be installed in a variety of locations with ease.

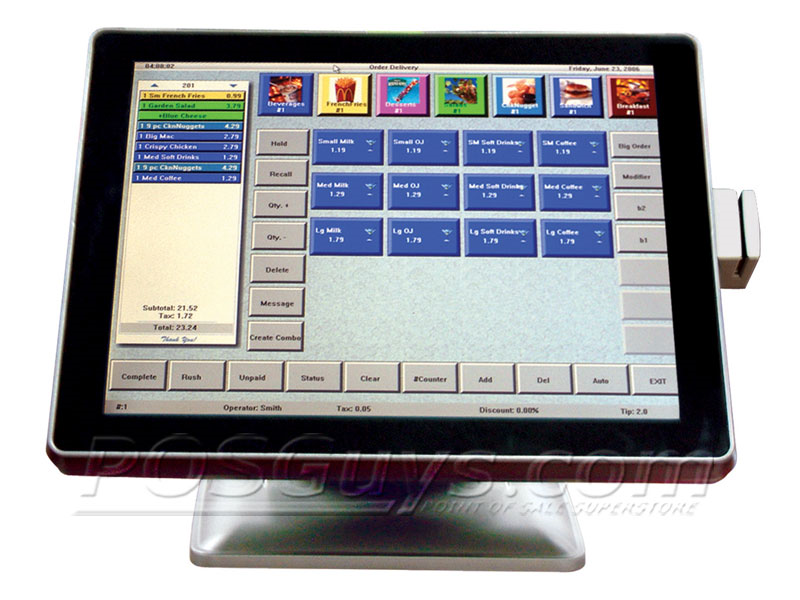

A 15" LCD screen on the SB-9090 provides crisp display of your software at an optimal 1024x768 resolution. 5-wire resistive touchscreen technology comes standard on the POS computer, excellent for quick order entry. For more advanced applications, the SB-9090 offers an optional Projected Capacitive Touch (PCT) screen which supports multi-touch functionality.
The SB-9090 is built on an Intel Atom processor with 2 GB of RAM standard, ample power for running most POS software platforms. The energy efficient Atom processor also eliminates the need for case fans, not only cutting your electric bills but increasing the longevity of the unit. Shipping with a 3-Year warranty, the Logic Controls SB-9090 is a fantastic, long-lasting solution.
The SB9090 has reached end of life. Please call for a suitable replacement.
A 15" LCD screen on the SB-9090 provides crisp display of your software at an optimal 1024x768 resolution. 5-wire resistive touchscreen technology comes standard on the POS computer, excellent for quick order entry. For more advanced applications, the SB-9090 offers an optional Projected Capacitive Touch (PCT) screen which supports multi-touch functionality.
The SB-9090 is built on an Intel Atom processor with 2 GB of RAM standard, ample power for running most POS software platforms. The energy efficient Atom processor also eliminates the need for case fans, not only cutting your electric bills but increasing the longevity of the unit. Shipping with a 3-Year warranty, the Logic Controls SB-9090 is a fantastic, long-lasting solution.
- Features
- 1.66 GHz Intel Atom Processor
- 2 GB RAM
- Windows XP Pro, POSReady 2009, 7
- 15" display with 1024x768 resolution
- Optional customer display and integrated card reader available
The SB9090 has reached end of life. Please call for a suitable replacement.
| Product Specifications | |
|---|---|
| Color Options | Dark Grey |
| Memory | 2GB DDR2 RAM |
| Processor | Intel Atom Processor D410 (Single Core)
1.66GHz with L2 Cache 512KB Intel Atom Processor D510 (Dual Core) 1.66GHz with L2 Cache 1MB |
| Hard Drive | SATA 2.5" 160GB Hard Drive |
| Operating System | Windows 7, Windows POSReady 2009, WEPOS, Windows XP Pro for Embedded, Fedora (Linux) |
| Ports | 4 USB 2.0, 3 Serial RS-232, 1 PS/2 Keyboard, 1 VGA HD15, 1 GB Ethernet RJ-45, 1 RJ-11 Cash Drawer, 1 Mini Din 4P (DC 12V only) |
| Display Type | 15 Inch LCD |
| Screen | True Flat 5-Wire Resistive Touch Screen
Optional: True Flat PCT Touch Screen With Multi-Touch Functionality |
| Style | Desktop |
| Aspect Ratio | 4:3 |
| Brightness | 250 nits |
| Optimal Resolution | 1024x768 |
| Bezel | True Flat (No Bezel) |
| Mounting Options | VESA
Tilt and Turn VESA Wall Mount Available |
| Operating Temperature | 32°-104°F (0°-40°C) |
| Power Supply | External adapter, DC Model: 80 Watts, Voltage: +12VDC 6.6A max. |
| Speakers | 2 2W Internal Speakers |
| Optional Peripherals | MSR: 3-Track PS/2 I/F
Customer Display: VFD 2x20 MSR + iButton Reader: PS/2 |
| Warranty | 3 Year Warranty |
| Return Policy | 20 Days |
