MicroTouch M1-MP-AA2

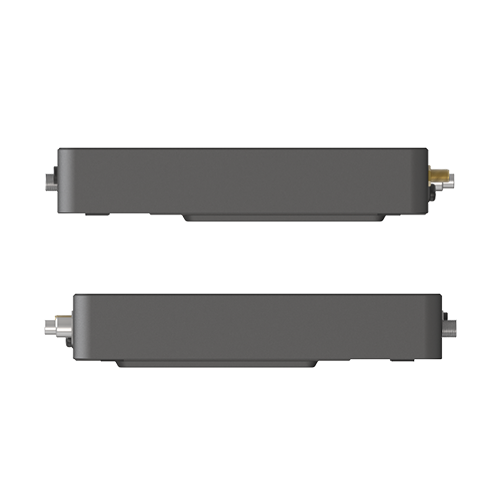

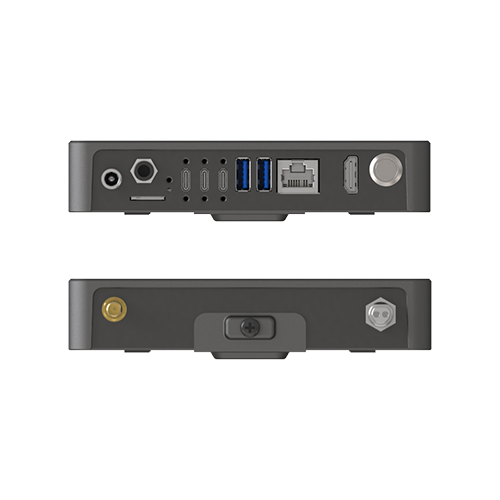

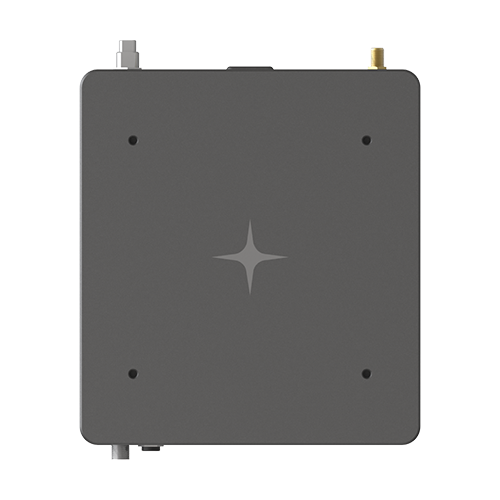

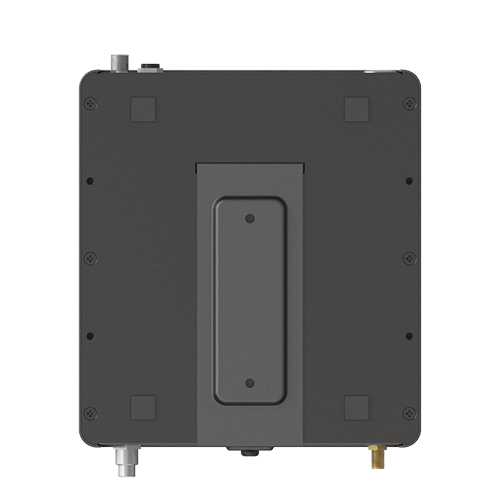

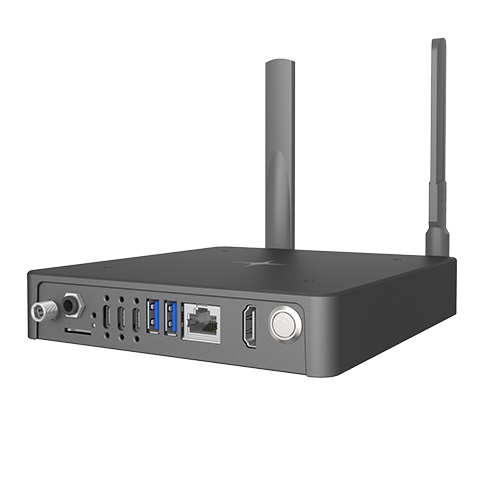

The pictures shown are general images for product M1-MP-AA2 and may not be applicable to all part numbers
M1-MP-AA2 POS Computers
The Mach M1-MP-AA2 Android media player transforms touchscreen monitors and static signage displays into a high performance, commercial-grade, Interactive systems. The MediaTek powered solution can seamlessly run video and audio content, interactive HTML web pages and Android Apps giving you a turnkey solution for your digital content or interactive installation.
Highlight Specs
- Processor: MediaTek Genio 700 (MT8390)
- OS: Android 13 GMS
- Memory: 8GB
- Connectivity: Wi-Fi/Bluetooth
Product Specifications | |
---|---|
Processor | MediaTek Genio 700 (MT8390) |
GPU | Mali-G57 MC3 |
System Memory | 8GB |
Storage Device | 64GB eMMC |
Wi-Fi & Bluetooth | 802.11 a/b/g/n/ac/ax, Bluetooth 5.2 (BLE Supported) |
USB Port | 1 x USB-C, 1 x USB-C (PD out 12V@3A+USB 2.0), 1 x USB-C (OTG Support), 2 x USB 3.0 Type A |
LAN Port | 1 x RJ45 Giga LAN |
Video Port | 1 x HDMI |
Audio Port | 1 x Line out |
Expansion Slot | 1 x Minni PCIe Slot (for 4G module, option) |
1 x Minni PCIe Slot (for 4G module, option) | 1 x GPIO |
GPIO | 1 x GPIO |
OS | Android 13 GMS |
Material | Die-Cast, SECC Metal |
Housing Color | Black |
Dimensions (W x H x D) | 146 x 32.8 x 160 mm |
Net Weight | 0.4 kg |
Gross Weight | 7.80 kg (10 units) |
Carton (W x H x D) | 440 x 325 x 310 mm |
Operating Temperature | 0°C ~ 40°C, 20% ~ 80% RH. Non-Condensing |
Storage Temperature | -20°C ~ 60°C, 10% ~ 90% RH. Non-Condensing |
Downloads |
---|
M1-MP-AA2 Spec Sheet |
